RX60L-XEMDCC (1980)
Toyota Cressida
(8009- )21R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37010 |
21R#..RX60 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37010 |
21R#..RX60 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
21R#..RX60 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
21R#..RX60 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
21R#..RX60 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20004 |
21R#..RX60 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37010 |
21R#..RX60 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37010 |
21R#..RX60 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-37020 |
21R..RX60 |
1 | ||
| 16331-37050 |
21RC..RX60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
21R#,18R..RX6#..EUR,SA *WAX 88-100,FUJI-THOMSON |
1 | ||
| 90916-03055 |
21R#..RX60..EUR,SA *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38020 |
21R#..RX60 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38020 |
21R#..RX60 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
21R#..RX60 7 BLADES |
1 | ||

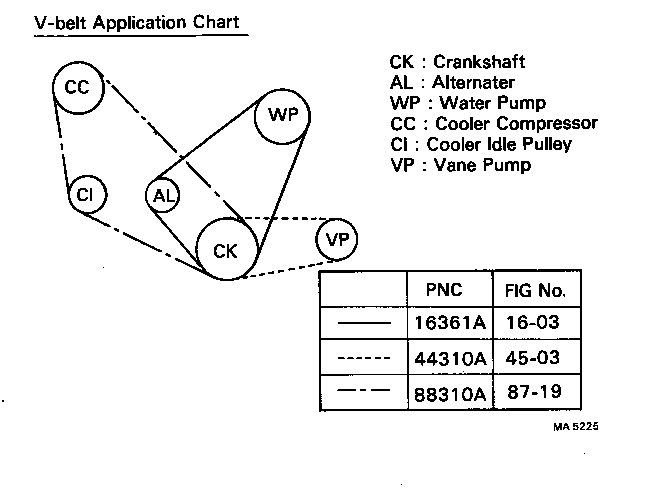

| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
21R#..RX60 L=880 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
21R#..RX60 L=880 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38020 |
21R#..RX60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37070 |
21R#..RX60..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
21R#..RX60 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
21R#..RX60 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
21R#..RX60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
21R#,18R..RX6#..DLX,XL |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
21R#,18R..RX6#..DLX,XL |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12063 |
21R#,18R..RX6# *H,L=300 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
21R#,18R..RX6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
21R#,18R..RX6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-18010 |
21R#,18R..RX6# |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-18010 |
21R#,18R..RX6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-18010 |
21R#,18R..RX6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-37040 |
21R#..RX60..EUR,GEN,ME,SAA |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
21R#..RX60 WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
21R#..RX60 WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
21R#..RX60 WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-37030 |
21R#..RX60..EUR,GEN,ME,SAA |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
21R#..RX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
21R#..RX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-34100 |
21R#,18R..RX6# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-34070 |
21R..RX60..EUR,GEN,ME,SAA W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08065 | ||||
| 90179-06070 | ||||
| 90468-06013 | ||||
| 91611-40822 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91651-40618 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
(8009-8208)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-37020 |
21R..RX60 |
1 | ||
| 16331-37050 |
21RC..RX60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
21R#,18R..RX6#..EUR,SA *WAX 88-100,FUJI-THOMSON |
1 | ||
| 90916-03055 |
21R#..RX60..EUR,SA *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38020 |
21R#..RX60 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
21R#..RX60 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
21R#..RX60 L=880 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38020 |
21R#..RX60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37070 |
21R#..RX60..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
21R#..RX60 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
21R#..RX60 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
21R#..RX60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
21R#,18R..RX6#..DLX,XL |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12063 |
21R#,18R..RX6# *H,L=300 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
21R#,18R..RX6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
21R#,18R..RX6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-18010 |
21R#,18R..RX6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-18010 |
21R#,18R..RX6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-37040 |
21R#..RX60..EUR,GEN,ME,SAA |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
21R#..RX60 WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
21R#..RX60 WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-37030 |
21R#..RX60..EUR,GEN,ME,SAA |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
21R#..RX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
21R#..RX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-34100 |
21R#,18R..RX6# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-34070 |
21R..RX60..EUR,GEN,ME,SAA W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90179-06070 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40818 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 91659-41222 | ||||
(8009- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
21R#..RX60 L=880 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
(8208- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-37020 |
21R..RX60 |
1 | ||
| 16331-37050 |
21RC..RX60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03036 |
21R#,18R..RX6#..EUR,SA *WAX 88-100,FUJI-THOMSON |
1 | ||
| 90916-03055 |
21R#..RX60..EUR,SA *WAX 88-100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38020 |
21R#..RX60 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
21R#..RX60 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99331-00880 |
21R#..RX60 L=880 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-38020 |
21R#..RX60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37070 |
21R#..RX60..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
21R#..RX60 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
21R#..RX60 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
21R#..RX60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
21R#,18R..RX6#..DLX,XL |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12063 |
21R#,18R..RX6# *H,L=300 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
21R#,18R..RX6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
21R#,18R..RX6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-18010 |
21R#,18R..RX6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-18010 |
21R#,18R..RX6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-37040 |
21R#..RX60..EUR,GEN,ME,SAA |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
21R#..RX60 WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
21R#..RX60 WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-37030 |
21R#..RX60..EUR,GEN,ME,SAA |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
21R#..RX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
21R#..RX60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
21R#..RX60 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-34100 |
21R#,18R..RX6# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-34070 |
21R..RX60..EUR,GEN,ME,SAA W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
| 90183-06001 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 91659-41222 | ||||
