RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )L

Click highlighted areas on diagram

diagram 15710 15710C 15710C 9017908040
Part # Description Qty Price
Common parts
90179-08040

(8009- )21R#,18R

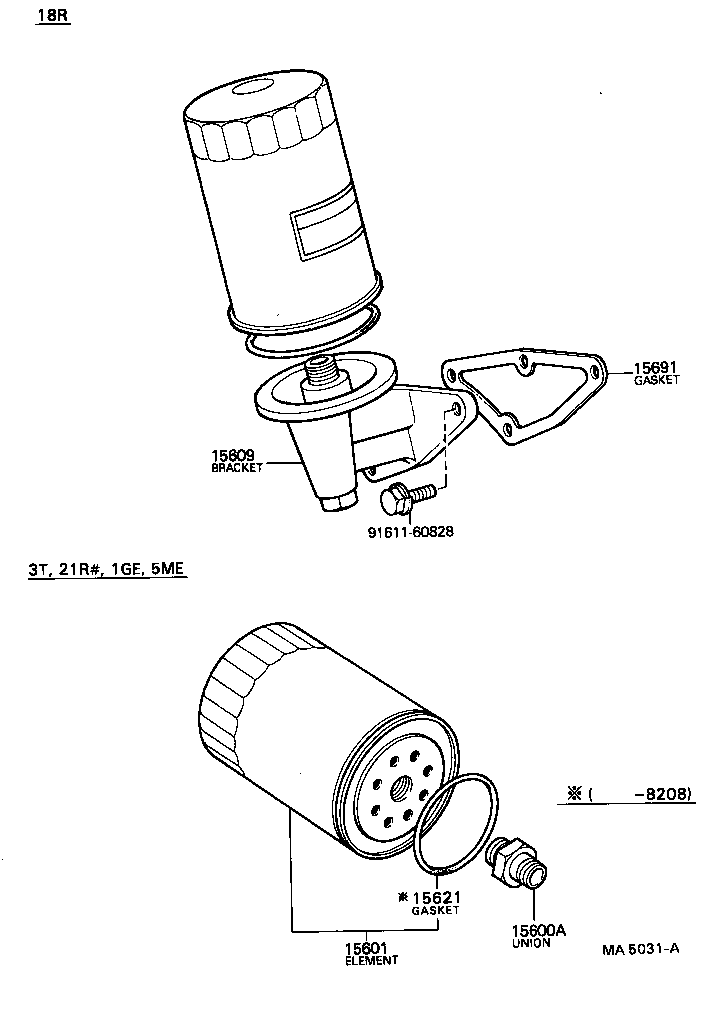

Click highlighted areas on diagram

diagram 15600A 15601 15609 15621 15691 9161160828
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-20173

21R#..RX60

 1
90404-20173

21R#..RX60

 1
90404-20173

21R#..RX60

 1
90404-20173

21R#..RX60

 1
15601 - FILTER SUB-ASSY, OIL
15601-44011

21R#..RX60

 1
15601-44011

21R#..RX60

 1
15601-44011

21R#..RX60

 1
15601-44011

21R#..RX60

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

21R#..RX60

 1
15621-41010

21R#..RX60

 1
15621-41010

21R#..RX60

 1
15621-41010

21R#..RX60

 1
Common parts
91611-60828

(8009- )L

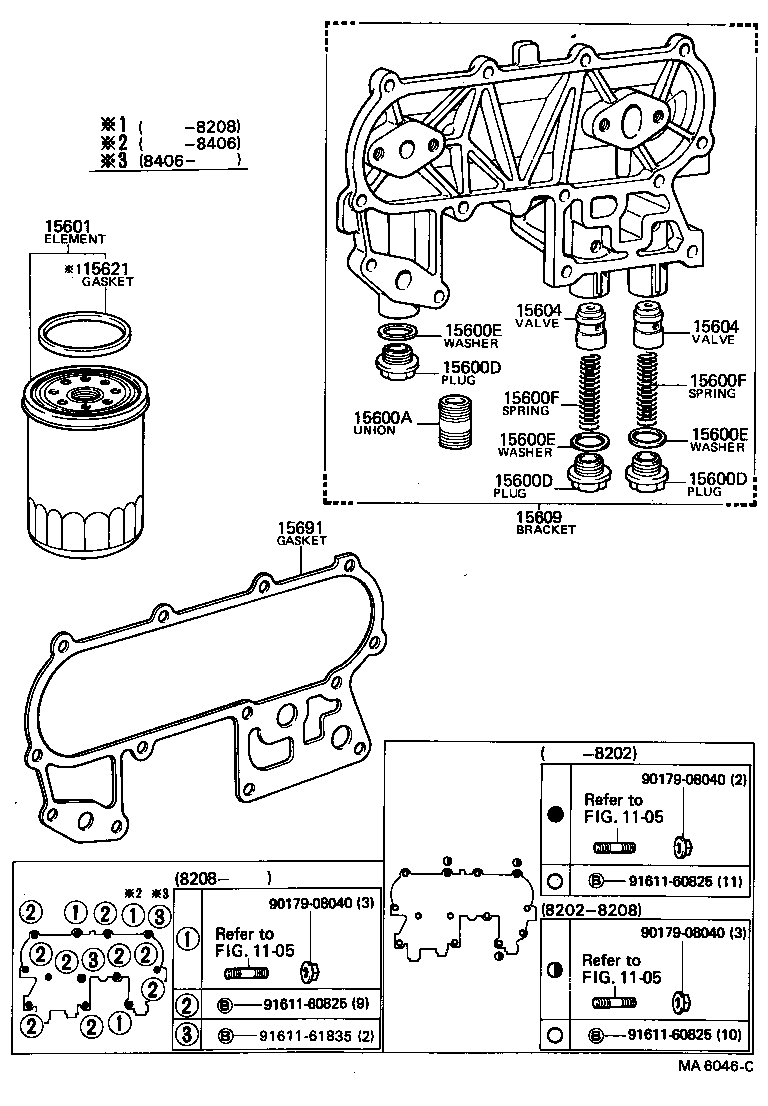

Click highlighted areas on diagram

diagram 1105 1105 1105 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15621 15691 9017908040 9017908040 9017908040 9161160825 9161160825 9161160825 9161161835
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-20173

21R#..RX60

 1
15601 - FILTER SUB-ASSY, OIL
15601-44011

21R#..RX60

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

21R#..RX60

 1
Common parts
90179-08040
91611-60825
91611-61835
Linked diagrams
1105
