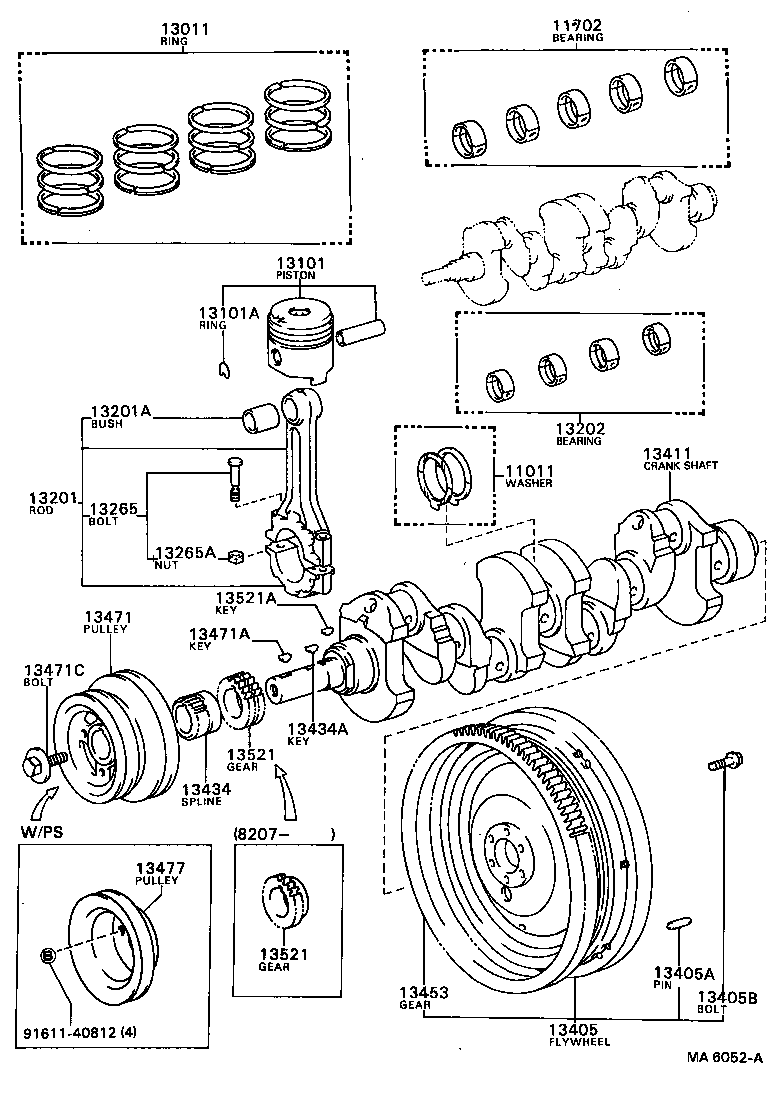

RX60L-XEMDCC (1980)
Toyota Cressida
(8009- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-38010 |
21R#..RX60 STD,STD |
1 | ||
| 11013-38010 |
21R#..RX60 O/S 0.250,O/S 0.250 |
1 | ||
| 11012-38010 |
21R#..RX60 O/S 0.125,O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-38010 |
21R#..RX60 U/S 0.25,U/S 0.25 |
1 | ||
| 11702-38010 |
21R#..RX60 STD,STD |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-37050 |
21R#..RX60 STD |
1 | ||
| 13015-37050 |
21R#..RX60 O/S 1.00 |
1 | ||
| 13013-37050 |
21R#..RX60 O/S 0.50 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-37030 |
21R#..RX60 STD |
4 | ||
| 13103-37040 |
21R#..RX60 O/S 0.50 |
4 | ||
| 13105-37040 |
21R#..RX60 O/S 1.00 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25105 |
21R#,18R..RX6# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-38011 |
21R#..RX60 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73072 |
21R#,18R..RX6# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-38011 |
21R#..RX60 STD,STD |
1 | ||
| 13204-38011 |
21R#..RX60 U/S 0.25,U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-39025 |
21R#,18R..RX6# |
8 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-39025 |
21R#,18R..RX6# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10198 |
21R#,18R..RX6# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-39125 |
21R#..RX60..MTM |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
21R#,18R..RX6#..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01011 |
21R#..RX60..MTM *11-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-38010 |
21R#..RX60 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
21R#,18R..RX6#..MTM N=115 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-37010 |
21R#..RX60 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
21R#,18R..RX6# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14004 |
21R#..RX60 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14004 |
21R#..RX60 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
21R#,18R..RX6# |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
(8009-8407)21R#,18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-38010 |
21R#..RX60 STD,STD |
1 | ||
| 11013-38010 |
21R#..RX60 O/S 0.250,O/S 0.250 |
1 | ||
| 11012-38010 |
21R#..RX60 O/S 0.125,O/S 0.125 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-38010 |
21R#..RX60 U/S 0.25,U/S 0.25 |
1 | ||
| 11702-38010 |
21R#..RX60 STD,STD |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-37050 |
21R#..RX60 STD |
1 | ||
| 13015-37050 |
21R#..RX60 O/S 1.00 |
1 | ||
| 13013-37050 |
21R#..RX60 O/S 0.50 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-37030 |
21R#..RX60 STD |
4 | ||
| 13103-37040 |
21R#..RX60 O/S 0.50 |
4 | ||
| 13105-37040 |
21R#..RX60 O/S 1.00 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25105 |
21R#,18R..RX6# |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-38011 |
21R#..RX60 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73072 |
21R#,18R..RX6# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-38011 |
21R#..RX60 STD,STD |
1 | ||
| 13204-38011 |
21R#..RX60 U/S 0.25,U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-39025 |
21R#,18R..RX6# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10198 |
21R#,18R..RX6# |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-39125 |
21R#..RX60..MTM |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
21R#,18R..RX6#..MTM L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01011 |
21R#..RX60..MTM *11-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-38010 |
21R#..RX60 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13434-38010 |
21R#..RX60 |
1 | ||
| 13434A - KEY(FOR OIL PUMP DRIVE SPLINE) | ||||
| 90280-05010 |
21R#..RX60 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
21R#,18R..RX6#..MTM N=115 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-37010 |
21R#..RX60 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
21R#,18R..RX6# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14004 |
21R#..RX60 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 13477-38010 |
21R..RX60 W/POWER STEERING |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-38010 |
21R#..RX60 N=18 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-38010 |
21R#..RX60 N=18 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
21R#,18R..RX6# |
1 | ||
| Common parts | ||||
| 91611-40812 | ||||
