RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

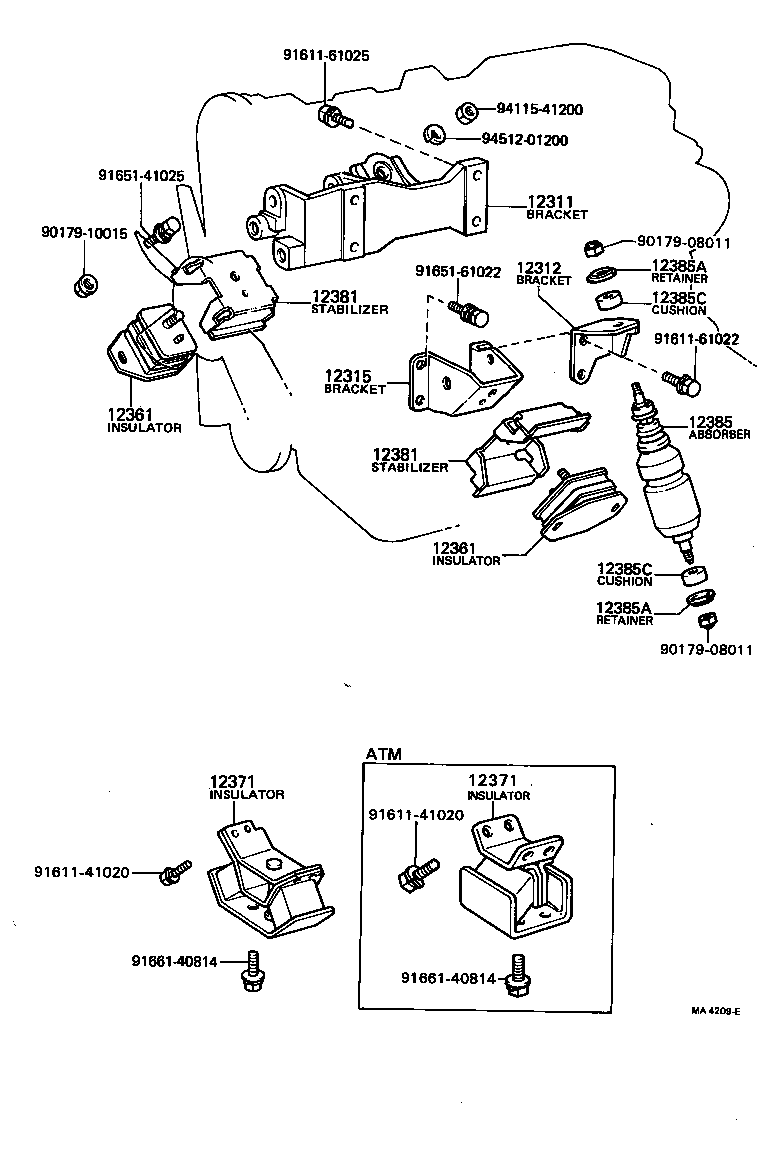

(8009-8208)L

Click highlighted areas on diagram

diagram 12311 12312 12315 12361 12361 12371 12371 12381 12381 12385 12385A 12385A 12385C 12385C 9017908011 9017908011 9017910015 9161141020 9161141020 9161161022 9161161025 9165141025 9165161022 9166140814 9166140814 9411541200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-35020

21R#..RX60..EUR,GEN,ME,SAA

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-37010

21R#..RX60..EUR

 1
12302-37020

21R#..RX60..EUR

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60..MTM

 1
12385 - ABSORBER, ENGINE MOUNTING, NO.1
12308-37020

21R#..RX60..EUR

 1
Common parts
90179-08011
90179-10015
91611-41020
91611-61022
91611-61025
91651-41025
91651-61022
91661-40814
94115-41200
94512-01200

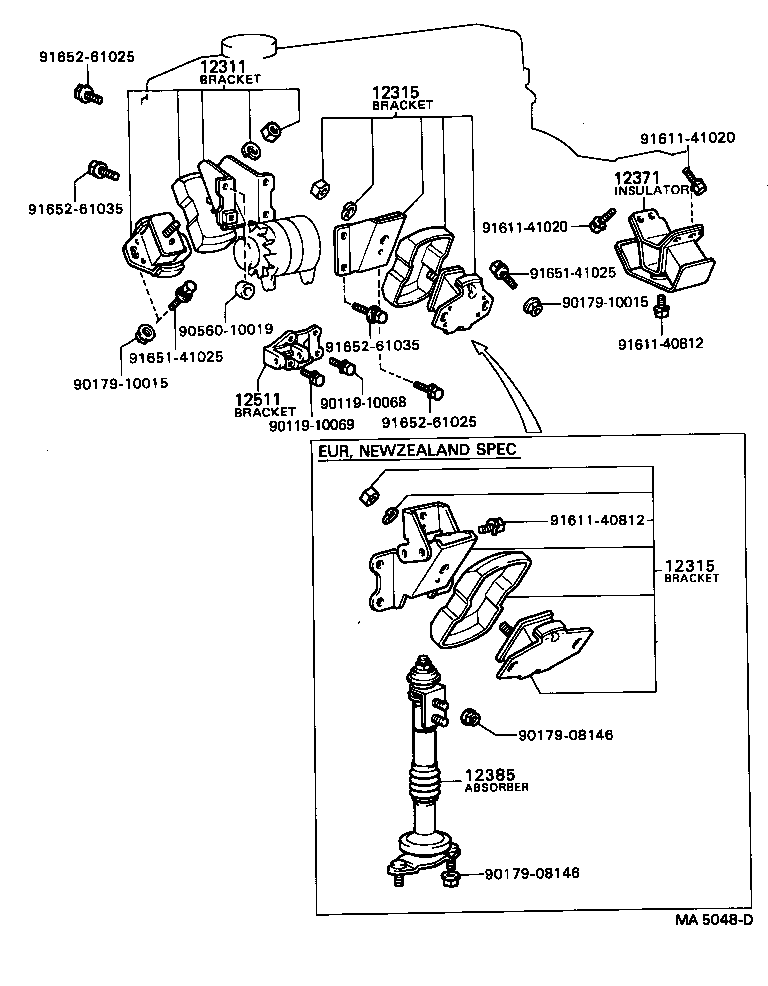

(8009- )21R#..EUR,GEN,ME,SAA

Click highlighted areas on diagram

diagram 12311 12315 12315 12371 12385 12511 9011910068 9011910069 9017908146 9017908146 9017910015 9017910015 9056010019 9161140812 9161140812 9161141020 9161141020 9165141025 9165141025 9165261025 9165261025 9165261035 9165261035
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-35020

21R#..RX60..EUR,GEN,ME,SAA

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-37010

21R#..RX60..EUR

 1
12302-37020

21R#..RX60..EUR

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-37010

21R#..RX60..EUR

 1
12302-37020

21R#..RX60..EUR

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60..MTM

 1
12385 - ABSORBER, ENGINE MOUNTING, NO.1
12308-37020

21R#..RX60..EUR

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-38030

21R#..RX60

 1
Common parts
90119-10068
90119-10069
90179-08146
90179-10015
90560-10019
91611-40812
91611-41020
91651-41025
91652-61025
91652-61035

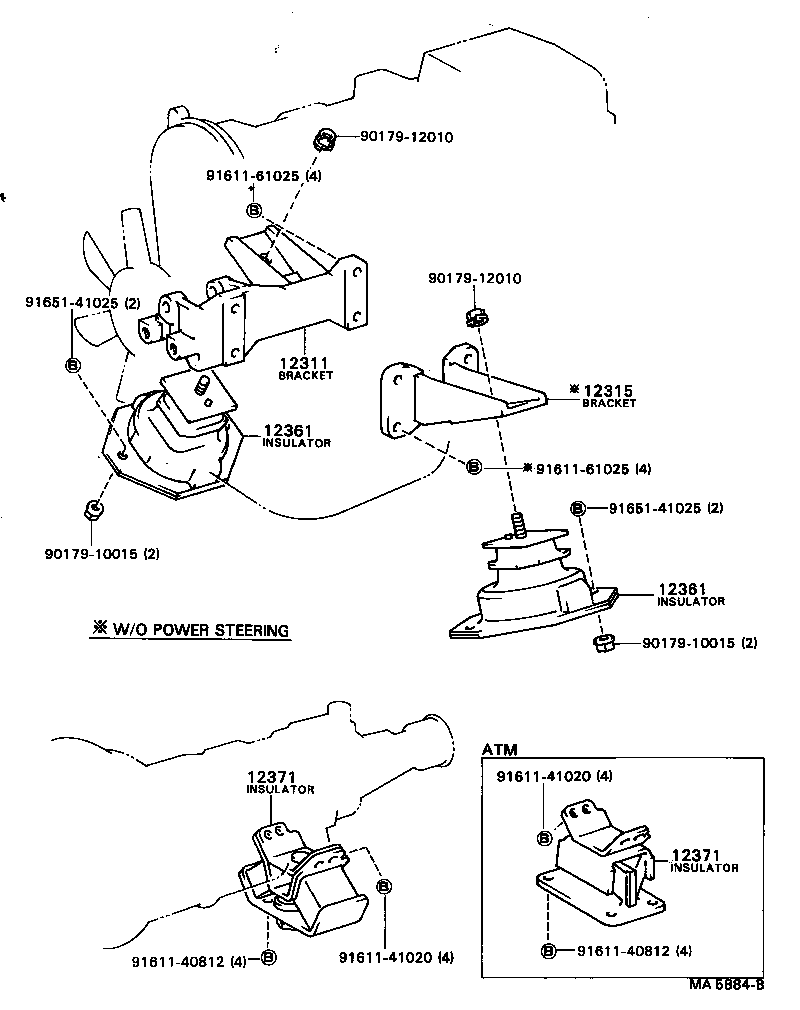

(8208- )L

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 9017910015 9017910015 9017912010 9017912010 9161140812 9161140812 9161141020 9161141020 9161161025 9161161025 9165141025 9165141025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-35020

21R#..RX60..EUR,GEN,ME,SAA

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-37010

21R#..RX60..EUR

 1
12302-37020

21R#..RX60..EUR

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60

 1
12371-34030

21R#..RX60..MTM

 1
Common parts
90179-10015
90179-12010
91611-40812
91611-41020
91611-61025
91651-41025
