RX60L-XEMDCC (1980)
Toyota Cressida

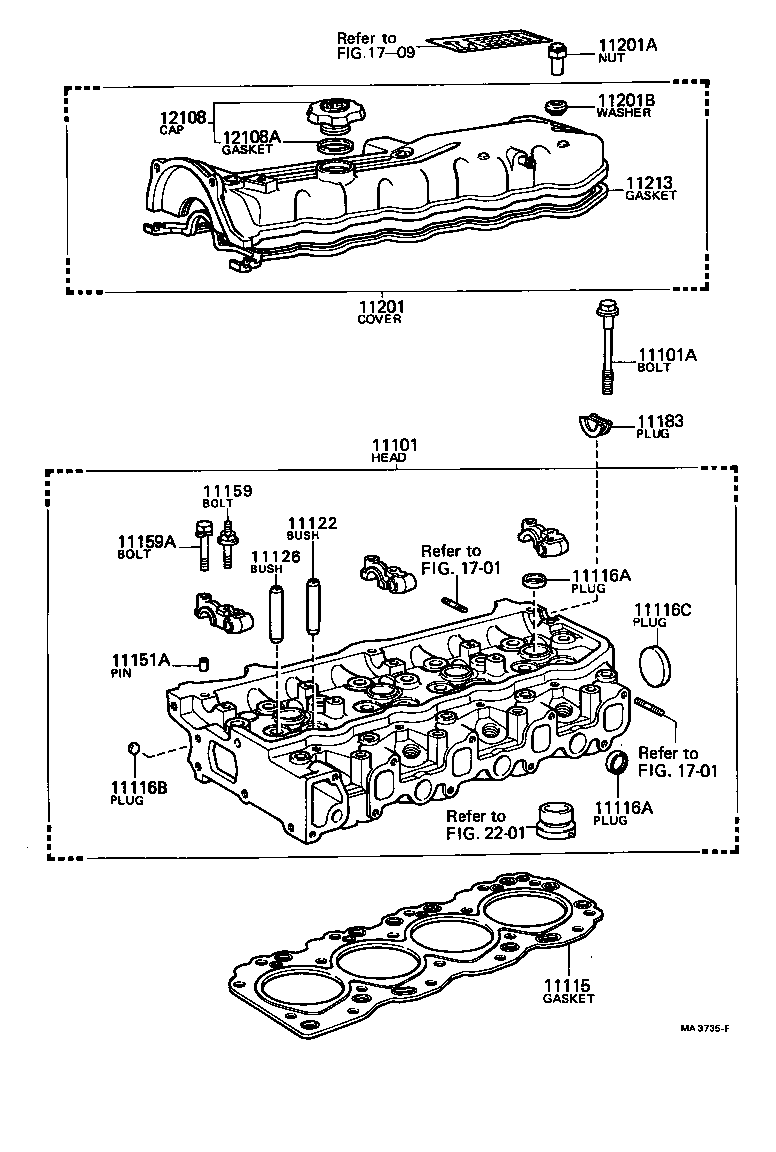

(8009-8204)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39445 |
21R#..RX60 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02058 |
21R#..RX60 *12-1.25PX166.5-21 |
14 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-37020 |
21R#..RX60 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-38021 |
21R#..RX60 STD,STD |
4 | ||
| 11123-38021 |
21R#..RX60 O/S 0.05,O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-38021 |
21R#..RX60 O/S 0.05,O/S 0.05 |
4 | ||
| 11122-38021 |
21R#..RX60 STD,STD |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-38010 |
21R#..RX60 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-39235 |
21R#..RX60 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
21R#..RX60 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08002 |
21R#..RX60 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-38010 |
21R#..RX60 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
21R#..RX60 |
1 | ||
| 12180-13010 |
21R#,18R..RX6# |
1 | ||
| 12180-13010 |
21R#..RX60 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
21R#,18R..RX6# |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
| 1709 | ||||
| 2201 | ||||

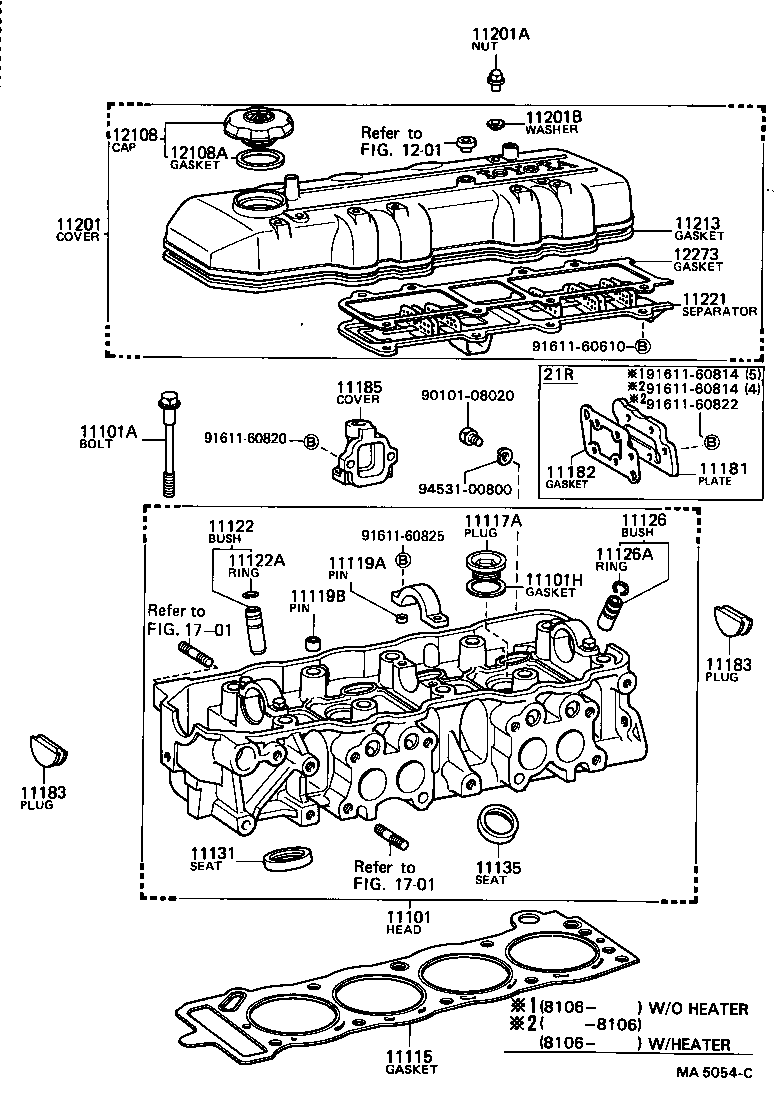

(8009-8206)21R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39445 |
21R#..RX60 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02058 |
21R#..RX60 *12-1.25PX166.5-21 |
14 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-32222 |
21R#..RX60 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-37020 |
21R#..RX60 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-32070 |
21R#..RX60 OD=32,P=1.5 |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90253-11021 |
21R#..RX60 L=8,OD=11,L=8,OD=11 |
6 | ||
| 11119B - PIN, STRAIGHT, NO.2 | ||||
| 90253-16020 |
21R#..RX60 L=16,OD=15.5 |
5 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-38021 |
21R#..RX60 STD,STD |
4 | ||
| 11123-38021 |
21R#..RX60 O/S 0.05,O/S 0.05 |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
21R#..RX60 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-38021 |
21R#..RX60 O/S 0.05,O/S 0.05 |
4 | ||
| 11122-38021 |
21R#..RX60 STD,STD |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
21R#..RX60 |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-37010 |
21R#..RX60 O/S 0.03 |
4 | ||
| 11131-37010 |
21R#..RX60 STD |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-37010 |
21R#..RX60 STD |
4 | ||
| 11136-37010 |
21R#..RX60 O/S 0.03 |
4 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-38020 |
21R..RX60 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-38011 |
21R..RX60 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-38010 |
21R#..RX60 |
2 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-38010 |
21R#..RX60 |
2 | ||
| 11185 - COVER, CYLINDER HEAD SIDE | ||||
| 11184-35010 |
21R#..RX60 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-39235 |
21R#..RX60 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
21R#..RX60 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08002 |
21R#..RX60 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-38010 |
21R#..RX60 |
1 | ||
| 11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1 | ||||
| 11221-35010 |
21R#..RX60 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
21R#..RX60 |
1 | ||
| 12180-13010 |
21R#,18R..RX6# |
1 | ||
| 12180-13010 |
21R#..RX60 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
21R#,18R..RX6# |
1 | ||
| 12273 - GASKET, OIL SEPARATOR | ||||
| 12273-38011 |
21R#..RX60 |
1 | ||
| Common parts | ||||
| 90101-08020 | ||||
| 91611-60610 | ||||
| 91611-60814 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||

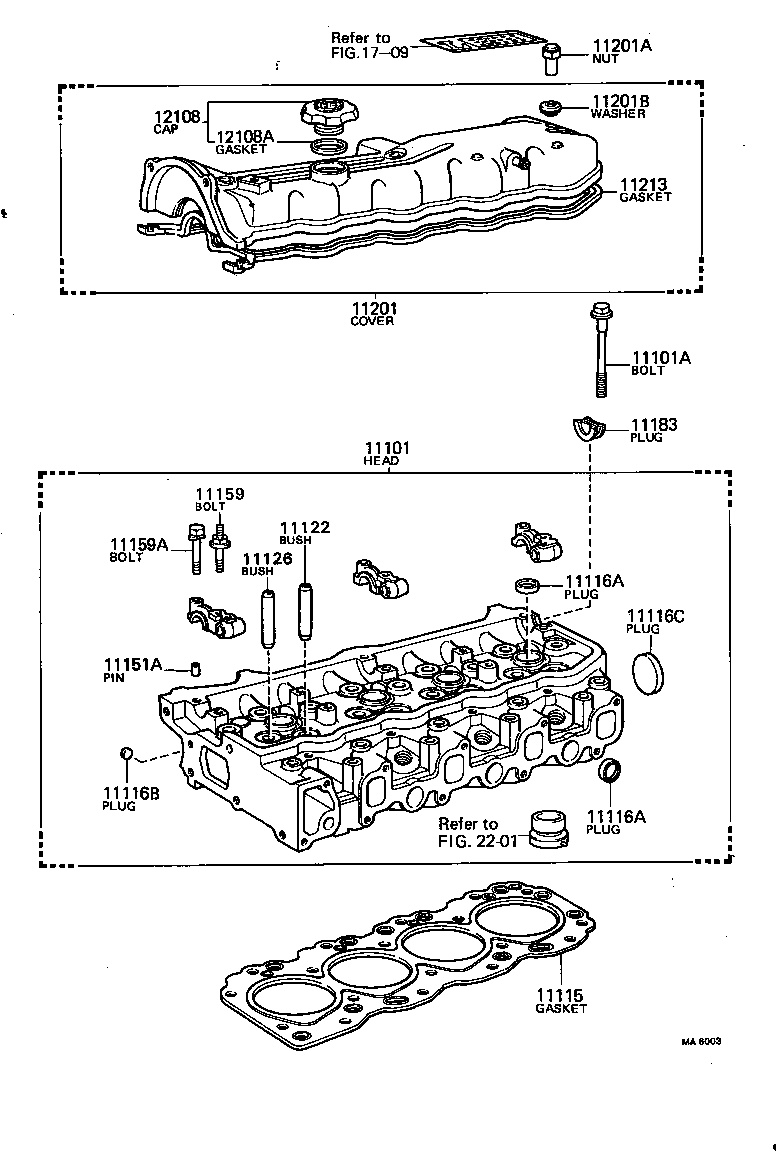

(8204- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39445 |
21R#..RX60 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02058 |
21R#..RX60 *12-1.25PX166.5-21 |
14 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-37020 |
21R#..RX60 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-38021 |
21R#..RX60 STD,STD |
4 | ||
| 11123-38021 |
21R#..RX60 O/S 0.05,O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-38021 |
21R#..RX60 O/S 0.05,O/S 0.05 |
4 | ||
| 11122-38021 |
21R#..RX60 STD,STD |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-38010 |
21R#..RX60 |
2 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-39235 |
21R#..RX60 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
21R#..RX60 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08002 |
21R#..RX60 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-38010 |
21R#..RX60 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-13010 |
21R#..RX60 |
1 | ||
| 12180-13010 |
21R#,18R..RX6# |
1 | ||
| 12180-13010 |
21R#..RX60 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
21R#,18R..RX6# |
1 | ||
| Linked diagrams | ||||
| 1709 | ||||
| 2201 | ||||
