RX60L-XEMDCC (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1983
Engine
21RC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

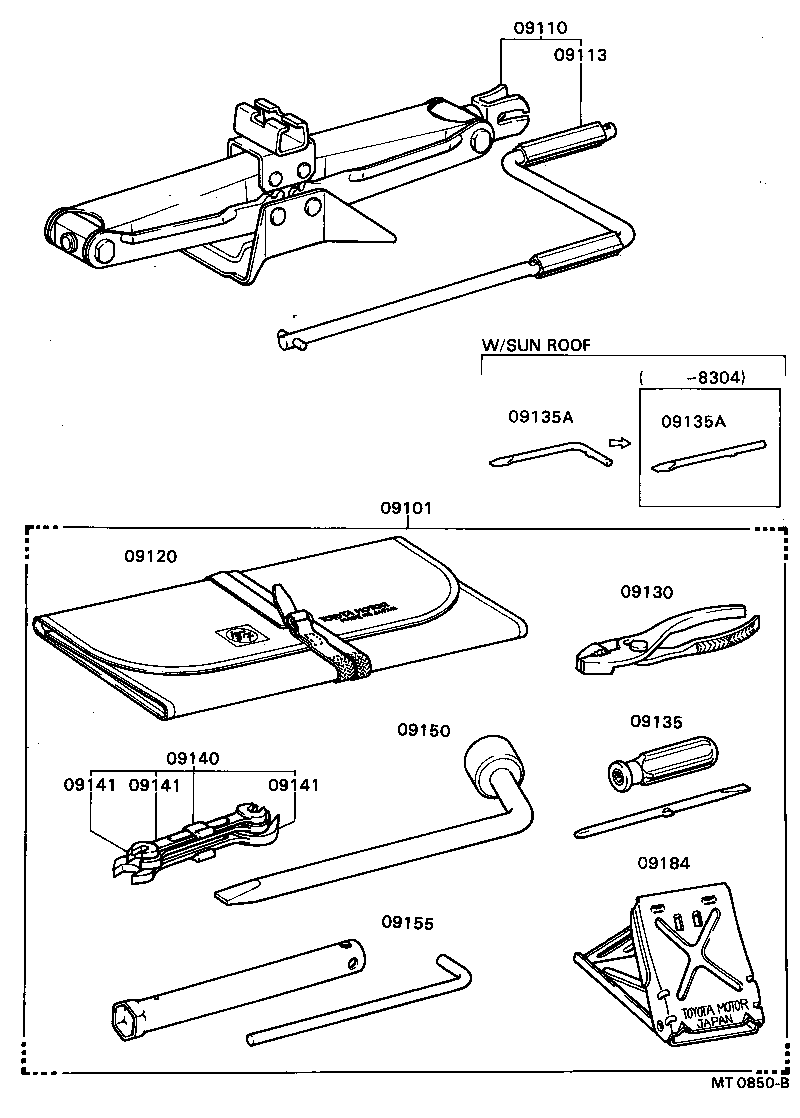

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09101 - TOOL SET, STANDARD W/O JACK | ||||
| 09101-22050 |
RX60 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09110-22020 |
RX60..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-22010 |
RX60..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME) |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-20020 |
GX6#,LX60,MX6#,RX60 |
1 | ||
| 09130 - PLIERS | ||||
| 99913-21500 |
LX60,MX62,RX60 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
GX6#,LX60,MX6#,RX60 |
1 | ||
| 09135A - BIT, SCREW DRIVER | ||||
| 09135-00011 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN) W/SUN ROOF |
1 | ||
| 09135A - BIT, SCREW DRIVER | ||||
| 09135-00011 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN) W/SUN ROOF |
1 | ||
| 09140 - SPANNER SET | ||||
| 09140-00060 |
LX60,MX62,RX60 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-00110 |
LX60,MX62,RX60 8X10 |
1 | ||
| 09141-00130 |
LX60,MX62,RX60 14X17 |
1 | ||
| 09141-00120 |
LX60,MX62,RX60 10X12 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-00110 |
LX60,MX62,RX60 8X10 |
1 | ||
| 09141-00130 |
LX60,MX62,RX60 14X17 |
1 | ||
| 09141-00120 |
LX60,MX62,RX60 10X12 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-00110 |
LX60,MX62,RX60 8X10 |
1 | ||
| 09141-00130 |
LX60,MX62,RX60 14X17 |
1 | ||
| 09141-00120 |
LX60,MX62,RX60 10X12 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
GX6#,LX60,MX6#,RX60 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-28010 |
RX60 |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
GX6#,LX60,MX6#,RX60 |
1 | ||
