RX35L-WKDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX36,RX35

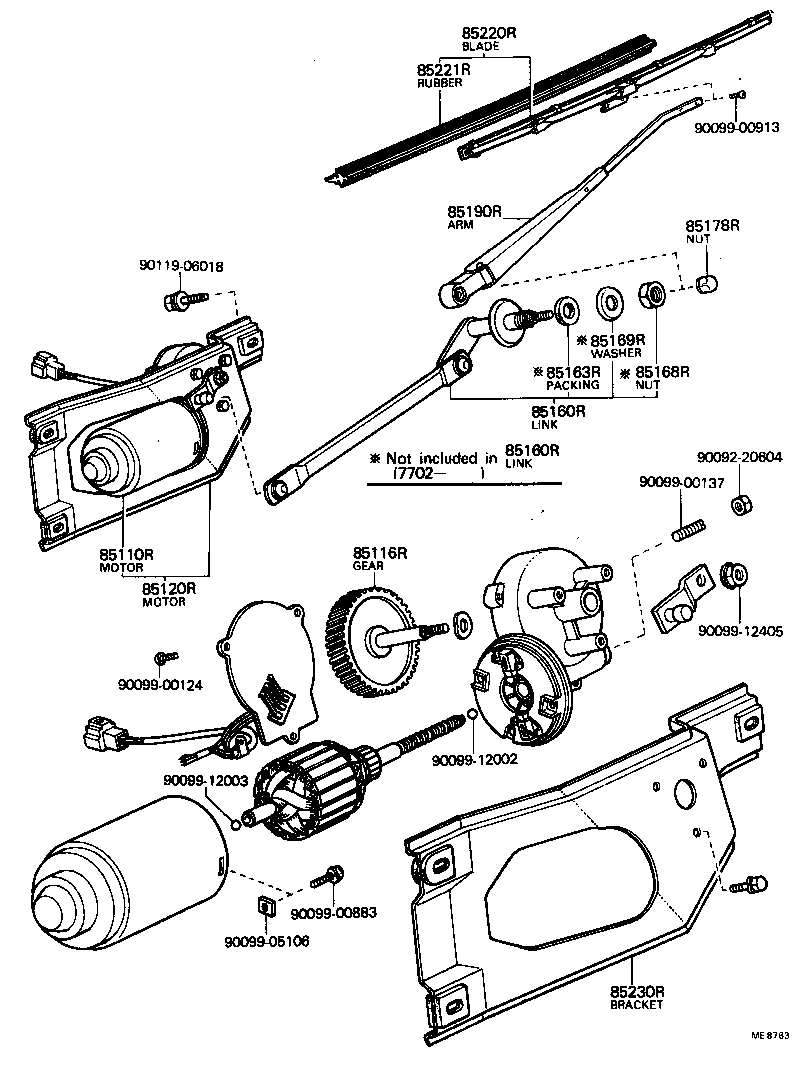

Click highlighted areas on diagram

diagram 85110R 85116R 85120R 85160R 85160R 85163R 85168R 85169R 85178R 85190R 85220R 85221R 85230R 9009220604 9009900124 9009900137 9009900883 9009900913 9009905106 9009912002 9009912003 9009912405 9011906018
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85110-23020

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

 1
85116R - GEAR, REAR WIPER MOTOR
85116-95101

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

 1
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-23020

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

 1
85163R - PACKING, REAR WIPER PIVOT, NO.1
85174-21010

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05120

MX36,RX35

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90099-01415

MX36,RX35

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

RX35..EUR

 1
85190R - ARM ASSY, REAR WIPER
85190-23041

RX35..EUR

 1
85190-23041

MX36,RX35

 1
85220R - BLADE ASSY, REAR WIPER
85220-10080

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

 1
85221R - BLADE, REAR WIPER
85221-10040

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

 1
85230R - BRACKET ASSY, REAR WIPER
85230-23020

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

 1
Common parts
90092-20604
90099-00124
90099-00137
90099-00883
90099-00913
90099-05106
90099-12002
90099-12003
90099-12405
90119-06018
