RX35L-WKDC (1977)
Toyota Cressida
Production
Jul 1977
-
Aug 1979
Engine
18RC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-7808)

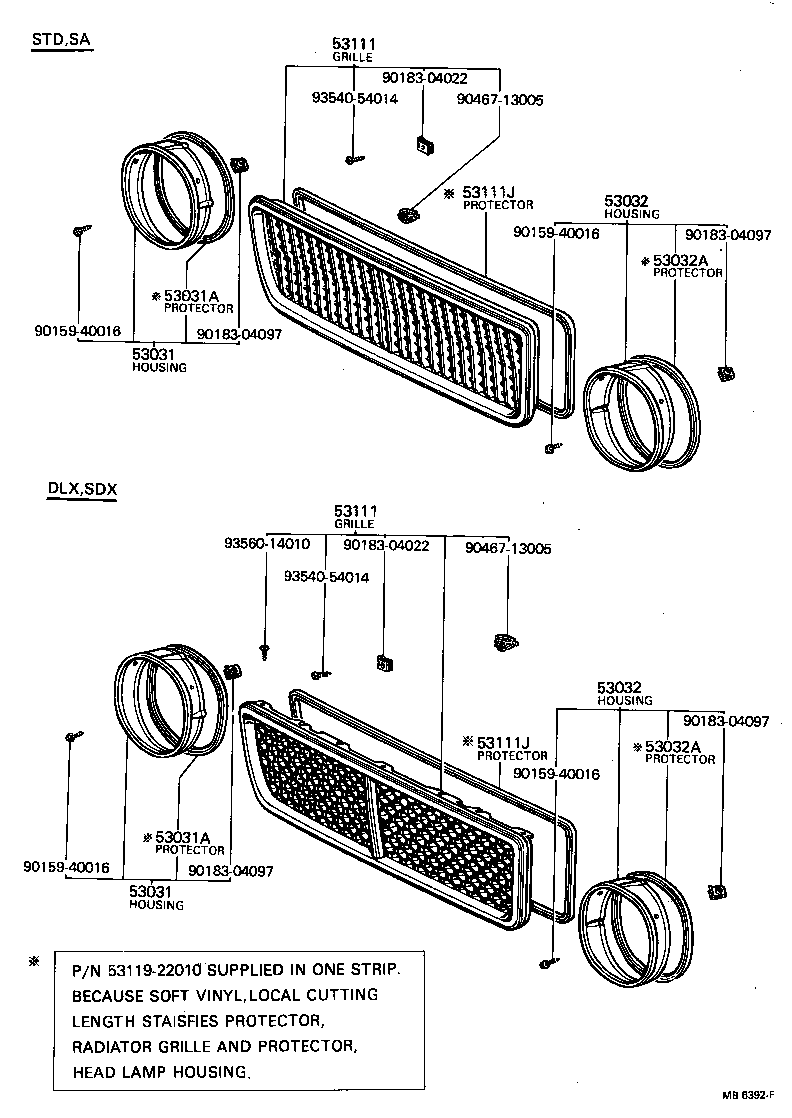

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53031-29025 |
MX3#,RX3# |
1 | ||
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53031-29025 |
MX3#,RX3# |
1 | ||
| 53031A - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53119-22010 |
MX3#,RX3# H,L=700 |
1 | ||
| 53031A - PROTECTOR, HEADLAMP DOOR, RH | ||||
| 53119-22010 |
MX3#,RX3# H,L=700 |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53032-29025 |
MX3#,RX3# |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53032-29025 |
MX3#,RX3# |
1 | ||
| 53032A - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53119-22010 |
MX3#,RX3# H,L=700 |
1 | ||
| 53032A - PROTECTOR, HEADLAMP DOOR, LH | ||||
| 53119-22010 |
MX3#,RX3# H,L=700 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53100-29035 |
MX3#,RX35..DLX,SDX;RX30..3FC..DLX..SA;RX30..DLX..(EUR,GEN) |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53100-29035 |
MX3#,RX35..DLX,SDX;RX30..3FC..DLX..SA;RX30..DLX..(EUR,GEN) |
1 | ||
| 53111J - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-22010 |
MX3#,RX3# |
1 | ||
| 53111J - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-22010 |
MX3#,RX3# |
1 | ||
| Common parts | ||||
| 90159-40016 | ||||
| 90183-04022 | ||||
| 90183-04097 | ||||
| 90467-13005 | ||||
| 93540-54014 | ||||
| 93560-14010 | ||||
