RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)LHD

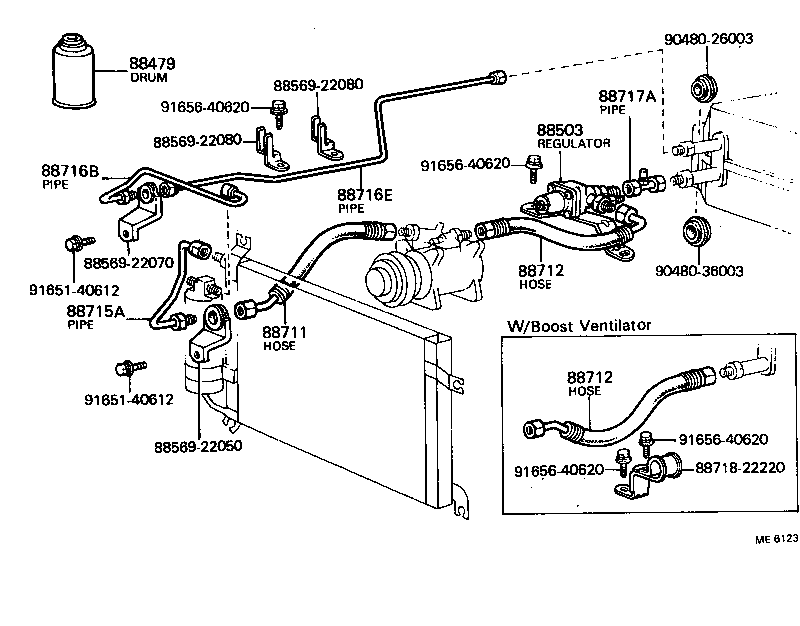

Click highlighted areas on diagram

diagram 88479 88503 8856922050 8856922070 8856922080 8856922080 88711 88712 88712 88715A 88716B 88716E 88717A 8871822220 9048026003 9048036003 9165140612 9165140612 9165640620 9165640620 9165640620 9165640620
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010

MX3#,RX3#..ARL,EUR,GEN

 2
88503 - REGULATOR ASSY, PRESSURE
88503-22040

RX3#..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22130

RX3#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22140

RX3#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22140

RX3#..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-22050

RX3#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22270

RX3#..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-22210

RX3#..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22150

MX3#,RX3#..ARL,EUR,GEN

 1
Common parts
88569-22050
88569-22070
88569-22080
88718-22220
90480-26003
90480-36003
91651-40612
91656-40620

(7612-8008)

Click highlighted areas on diagram

diagram 88460 88460 8846722010 8846722010 8846722010 88471 88471 88472 88472 88472 88472 88716A 88716A 88891A 88891B 88891C 88891C 9009900134 9009900134 9009932073 9009932073 9009932073 9165640630 9165640630 9165640630 9411040600 9461210601
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-22100

RX3#

 1
88460 - CONDENSER ASSY, COOLER
88460-22100

RX3#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30250

MX3#,RX3#..ARL,EUR,GEN

 1
88471-30270

MX3#,RX3#

 1
88470-20050

MX3#,RX3#..ARL,EUR,GEN

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30250

MX3#,RX3#..ARL,EUR,GEN

 1
88471-30270

MX3#,RX3#

 1
88470-20050

MX3#,RX3#..ARL,EUR,GEN

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-22010

MX3#,RX3#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88473-22010

MX3#,RX3#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88473-22010

MX3#,RX3#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88473-22010

MX3#,RX3#

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22260

RX3#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22260

RX3#

 1
88891A - PACKING A (FOR COOLER)
88688-22050

RX3#

 1
88891B - PACKING B (FOR COOLER)
88578-22060

RX3#

 1
88891C - PACKING C (FOR COOLER)
88578-22070

RX3#

 2
88891C - PACKING C (FOR COOLER)
88578-22070

RX3#

 2
Common parts
88467-22010
90099-00134
90099-32073
91656-40630
94110-40600
94612-10601
