RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)RX3#

Click highlighted areas on diagram

diagram 87116 87138 88910 9011906142 9017906115 9351014010 9351014010
Part # Description Qty Price
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MX3#,RX3#,TX30

 6
87138 - RESISTOR, HEATER BLOWER
87138-22030

MX3#,RX3#,TX30

 1
88910 - VENTILATOR ASSY, BOOST
88910-22090

RX3#..LHD

 1
Common parts
90119-06142
90179-06115
93510-14010

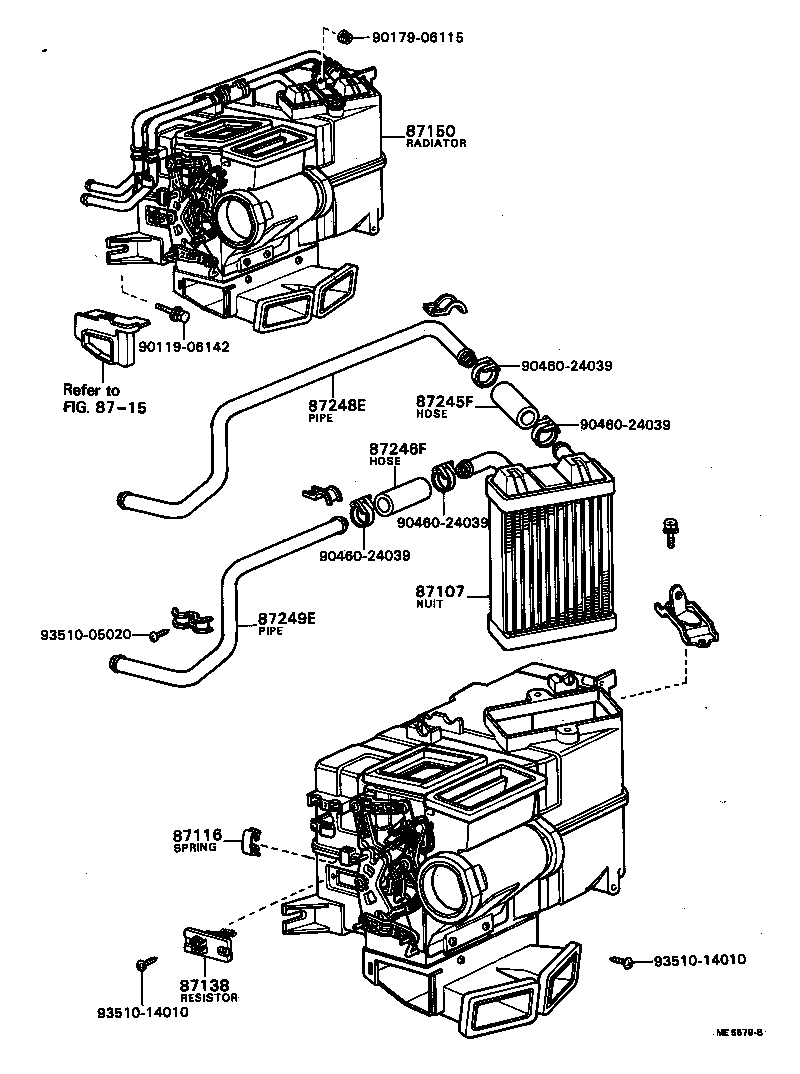

(7612-8008)LHD

Click highlighted areas on diagram

diagram 87107 87116 87138 8715 87150 87245F 87246F 87248E 87249E 9011906142 9017906115 9046024039 9046024039 9046024039 9046024039 9351005020 9351014010 9351014010
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22070

RX3#..LHD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MX3#,RX3#,TX30

 6
87138 - RESISTOR, HEATER BLOWER
87138-22030

MX3#,RX3#,TX30

 1
87150 - RADIATOR ASSY, HEATER
87150-22040

RX3#..LHD

 1
87245F - HOSE, HEATER WATER, INLET F
99552-30040

MX3#,RX3#,TX30

*H,L=40

 1
87246F - HOSE, HEATER WATER, OUTLET F
99552-30040

MX3#,RX3#,TX30

*H,L=40

 1
87248E - PIPE, HEATER WATER INLET, E
87156-22060

RX3#..LHD

 1
87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT)
87157-22070

RX3#..LHD

 1
Common parts
90119-06142
90179-06115
90460-24039
93510-05020
93510-14010
Linked diagrams
8715

(7612-8008)

Click highlighted areas on diagram

diagram 87104 87104 87105 87105 87114 87116 87116 87130 87130 87188 87188 87291A 87291A 9009900932 9009900932 9009902133 9009902133 9009902134 9009902134 9009902135 9009902135 9009904565 9009904565 9011906142 9011906142 9354014010 9411540500 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22090

RX3#..LHD

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22090

RX3#..LHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20080

RX3#..LHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20080

RX3#..LHD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MX3#,RX3#,TX30

 6
87116 - SPRING, HEATER CASE FASTENING
87116-14010

MX3#,RX3#,TX30

 6
87130 - BLOWER ASSY, HEATER, FRONT
87130-22020

RX3#..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22020

RX3#..LHD

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

MX3#,RX3#,TX30

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

MX3#,RX3#,TX30

 1
Common parts
90099-00932
90099-02133
90099-02134
90099-02135
90099-04565
90119-06142
93540-14010
94115-40500
