RX35L-WHDC (1977)
Toyota Cressida
Production
Jul 1977
-
Aug 1979
Engine
18RC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-7808) ; (7808-8008)MX36,RX35

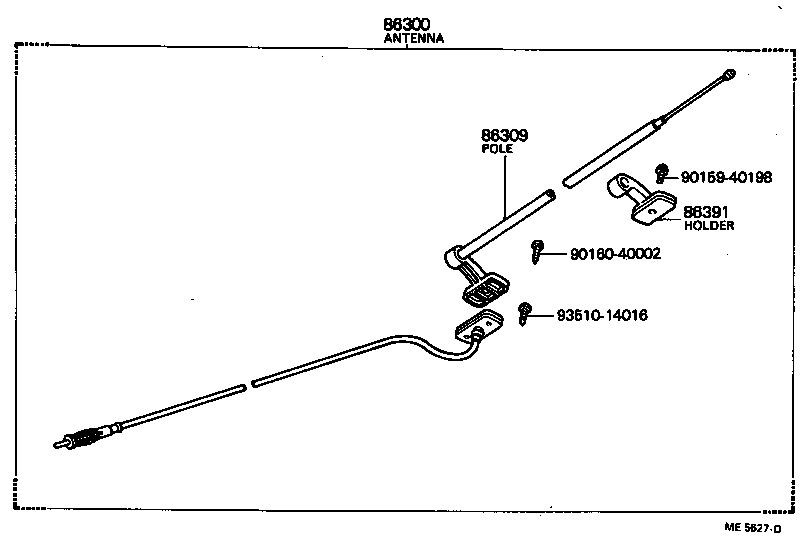

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-22100 |
RX3#..LHD..EUR |
1 | ||
| 86300-22090 |
RX3#..LHD |
1 | ||
| 86300-22100 |
RX3#..LHD |
1 | ||
| 86309 - POLE SUB-ASSY, PILLAR ANTENNA | ||||
| 86309-22030 |
RX35..LHD..EUR |
1 | ||
| 86309-22030 |
RX3#..LHD..EUR |
1 | ||
| 86309-22020 |
RX3#..LHD |
1 | ||
| 86309-22021 |
RX3#..LHD |
1 | ||
| 86309-22031 |
RX3#..LHD |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-22060 |
RX3#..LHD |
1 | ||
| 86391-22060 |
RX3#..LHD |
1 | ||
| 86391-22060 |
RX35..LHD |
1 | ||
| 86391-22061 |
RX3#..LHD |
1 | ||
| 86391-22041 |
RX3#..LHD |
1 | ||
| 86391-22061 |
RX35..LHD |
1 | ||
| Common parts | ||||
| 90159-40198 | ||||
| 90160-40002 | ||||
| 93510-14016 | ||||
