RX35L-WHDC (1977)
Toyota Cressida
Production
Jul 1977
-
Aug 1979
Engine
18RC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)LHD..EUR

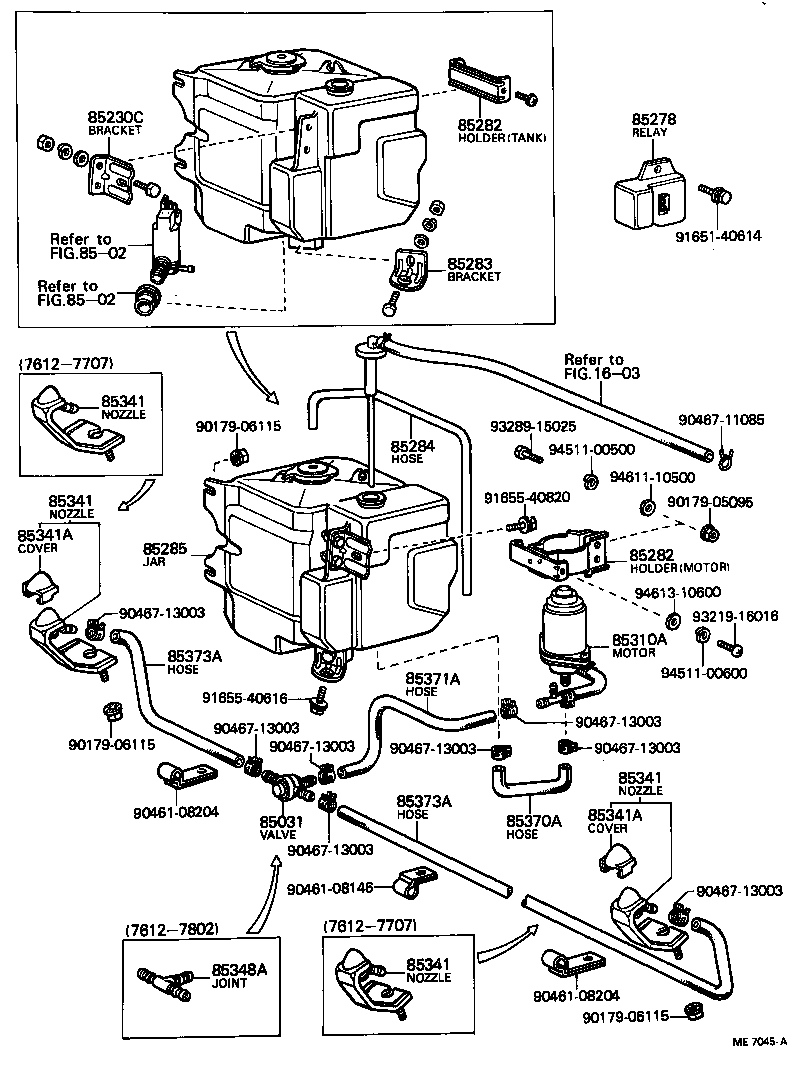

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85230C - BRACKET ASSY, HEADLAMP CLEANER | ||||
| 85361-22110 |
RX3#..LHD..EUR |
1 | ||
| 85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-14010 |
RX3#..LHD..EUR |
1 | ||
| 85276-22010 |
RX3#..LHD..EUR |
1 | ||
| 85276-22010 |
RX3#..LHD..EUR |
1 | ||
| 85282 - HOLDER ASSY, HEADLAMP CLEANER WASHER JAR | ||||
| 85361-22100 |
RX3#..LHD..EUR FOR TANK |
1 | ||
| 85361-20090 |
RX3#..LHD..EUR FOR MOTOR |
1 | ||
| 85282 - HOLDER ASSY, HEADLAMP CLEANER WASHER JAR | ||||
| 85361-22100 |
RX3#..LHD..EUR FOR TANK |
1 | ||
| 85361-20090 |
RX3#..LHD..EUR FOR MOTOR |
1 | ||
| 85283 - BRACKET, HEADLAMP CLEANER WASHER | ||||
| 85361-22120 |
RX3#..LHD..EUR |
1 | ||
| 85284 - HOSE ASSY, HEADLAMP CLEANER WASHER | ||||
| 90446-07002 |
RX3#..LHD..EUR |
1 | ||
| 85285 - JAR, HEADLAMP CLEANER WASHER | ||||
| 85330-22060 |
RX3#..LHD..EUR |
1 | ||
| 85330-22061 |
RX3#..LHD..EUR |
1 | ||
| 85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER | ||||
| 85310-12050 |
RX3#..LHD..EUR |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-22041 |
RX3#..LHD..EUR |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-22041 |
RX3#..LHD..EUR |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-22041 |
RX3#..LHD..EUR |
2 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85035-22041 |
RX3#..LHD..EUR |
2 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85033-22020 |
RX3#..LHD..EUR |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85033-22020 |
RX3#..LHD..EUR |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85352-12010 |
RX3#..LHD..EUR |
1 | ||
| 85370A - HOSE ASSY, HEADLAMP CLEANER WASHER, NO.1 | ||||
| 85343-22050 |
RX3#..LHD..EUR |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 85343-12030 |
RX3#..LHD..EUR |
1 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85343-22030 |
RX3#..LHD..EUR L=1130 |
1 | ||
| 85343-22020 |
RX3#..LHD..EUR L=230 |
1 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85343-22030 |
RX3#..LHD..EUR L=1130 |
1 | ||
| 85343-22020 |
RX3#..LHD..EUR L=230 |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 90179-06115 | ||||
| 90461-08146 | ||||
| 90461-08204 | ||||
| 90467-11085 | ||||
| 90467-13003 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 91655-40820 | ||||
| 93219-16016 | ||||
| 93289-15025 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94611-10500 | ||||
| 94613-10600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8502 | ||||
