RX35L-WHDC (1977)
Toyota Cressida
Production
Jul 1977
-
Aug 1979
Engine
18RC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)MX36,RX35

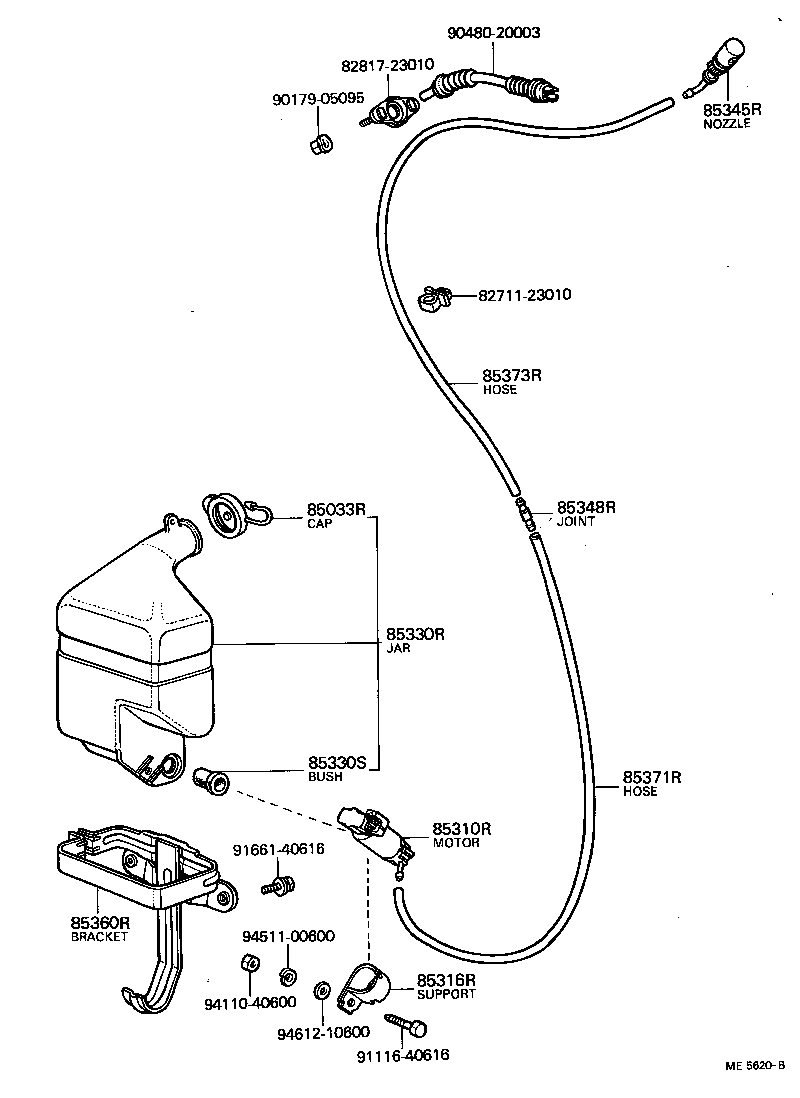

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033R - CAP ASSY, REAR WASHER | ||||
| 85033-36120 |
MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN) |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-20100 |
MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN) |
1 | ||
| 85316R - SUPPORT, REAR WASHER MOTOR | ||||
| 85316-23010 |
MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN) |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-23011 |
MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN) |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 90099-32057 |
MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN) |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85035-23020 |
MX36,RX35 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-87201 |
MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN) |
1 | ||
| 85360R - BRACKET ASSY, REAR WASHER | ||||
| 85360-15010 |
MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN) |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06056 |
MX36,RX35 *H,L=700 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33309 |
MX36,RX35 L=800 |
1 | ||
| Common parts | ||||
| 82711-23010 | ||||
| 82817-23010 | ||||
| 90179-05095 | ||||
| 90480-20003 | ||||
| 91116-40616 | ||||
| 91661-40616 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94612-10600 | ||||
