RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)RX3#,TX30

Click highlighted areas on diagram

diagram 27700 4702 4702 83420 83530 84210 84210 84221 84540 8601 9020616025 9046106645 9046108041 9046315067 9052414001 9165140610 9165140612 9338516016
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-28010

18R#,4M..MX36,RX35

 1
27700-36020

18R#,4M..MX36,RX35

 1
27700-36010

18R,4M..MX3#,RX3#

 1
27700-36020

18R#,4M..MX3#,RX35

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20011

MX3#,RX3#

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-36011

RX3#

 1
84540 - SWITCH ASSY, NEUTRAL START
84540-22140

RX3#..3FC

 1
Common parts
90206-16025
90461-06645
90461-08041
90463-15067
90524-14001
91651-40610
91651-40612
93385-16016
Linked diagrams
4702
8601

(7612-7808)

Click highlighted areas on diagram

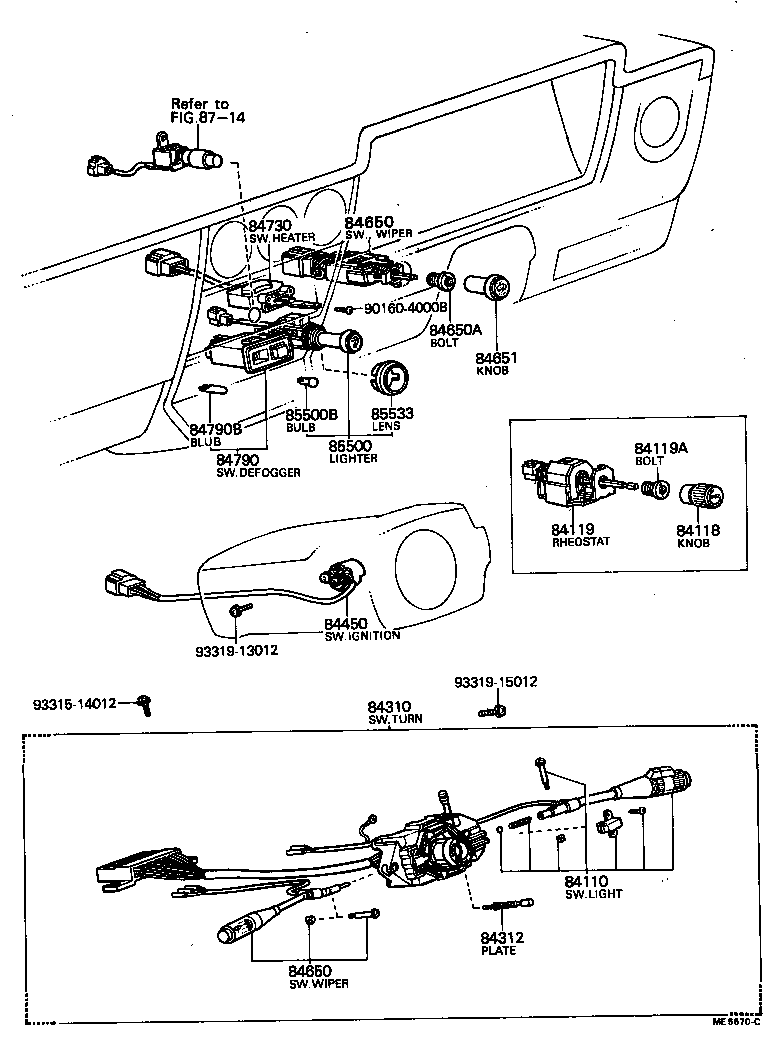

diagram 84110 84118 84119 84119A 84310 84312 84450 84650 84650 84650A 84651 84730 84790 84790B 85500 85500B 85533 8714 9016040008 9331514012 9331913012 9331915012
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-29175

RX3#..LHD..(DLX,STD)

MATSUSHITA

 1
84112-29135

RX3#..LHD..(DLX,STD)

TOKAIRIKA

 1
84112-29035

RX3#..LHD

 1
84112-29145

RX3#..LHD..DLX..EUR

TILT STEERING

 1
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-14010

MX3#,RX3#..DLX,SDX

 1
84118-12020

RX3#..LHD

WEST GERMANY SPEC.

 1
84119 - RHEOSTAT, LIGHT CONTROL
84119-14010

MX3#,RX3#..DLX,SDX

 1
84119-22020

RX3#..LHD

WEST GERMANY SPEC.

 1
84119A - BOLT OR NUT, RHEOSTAT CONTROL SET
90984-01013

MX3#,RX3#..DLX

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-22160

RX3#..LHD

W/INTERMITTENT WIPER

 1
84312 - PLATE, HORN CONTACT
84312-20011

MX3#,RX3#,TX30

TOKAIRIKA

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-30131

MX3#,RX3#,TX30

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-20250

RX3#..LHD..(DLX,STD)

MATSUSHITA

 1
84652-29045

RX3#..LHD

W/INTERMITTENT WIPER

 1
84652-29195

RX3#..LHD..(DLX,STD)

TOKAIRIKA W/I.W.

 1
84652-29215

RX3#..LHD..DLX..EUR

TILT STEERING

 1
84653-21020

MX36,RX35

REAR WIPER

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-20250

RX3#..LHD..(DLX,STD)

MATSUSHITA

 1
84652-29045

RX3#..LHD

W/INTERMITTENT WIPER

 1
84652-29195

RX3#..LHD..(DLX,STD)

TOKAIRIKA W/I.W.

 1
84652-29215

RX3#..LHD..DLX..EUR

TILT STEERING

 1
84653-21020

MX36,RX35

REAR WIPER

 1
84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET
90984-01013

MX36,RX35

REAR WIPER

 1
84651 - KNOB, WINDSHIELD WIPER SWITCH
84651-21010

MX36,RX35

REAR WIPER

 1
84730 - SWITCH ASSY, HEATER BLOWER
84730-22040

MX3#,RX3#,TX30

 1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-22040

MX3#,RX3#,TX30

 1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
90981-11018

MX3#,RX3#,TX30

12V 1.2W W/O SOCKET,12V 1.4W

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-20061

MX3#,RX3#

 1
85500B - BULB, CIGARETTE LIGHTER
99132-11034

MX3#,RX3#,TX30

12V 3.4W,12V 3.4W

 1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-20010

MX3#,RX3#,TX30

 1
Common parts
90160-40008
93315-14012
93319-13012
93319-15012
Linked diagrams
8714

(7612-8008)

Click highlighted areas on diagram

diagram 81980 8202 8202 82600F 82600F 82630 82630F 82650 85910C 85910C 85912 85912 85916 85916 85923 85940 85965 85969 85980 85999C 85999D 8714 89320 89390 89550 9165140614 9165140614 9165140614 9338515012 9356016012
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-22060

MX3#,RX3#,TX30

 1
82600F - FUSE, FUSE BLOCK
90982-07008

MX3#,RX3#

5A,L=20

 1
99118-62915

MX3#,RX3#,TX30

15A,15A

 8
82600F - FUSE, FUSE BLOCK
90982-07008

MX3#,RX3#

5A,L=20

 1
99118-62915

MX3#,RX3#,TX30

15A,15A

 8
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02001

MX3#,RX3#

DENSO

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02001

MX3#,RX3#

DENSO

 1
85912 - RELAY, DEFOGGER
90987-02001

MX3#,RX3#

DENSO

 1
85912 - RELAY, DEFOGGER
90987-02001

MX3#,RX3#

DENSO

 1
85916 - RELAY, LIGHT CONTROL
90987-01001

MX3#,RX3#

 2
85916 - RELAY, LIGHT CONTROL
90987-01001

MX3#,RX3#

 2
85923 - RELAY, CHOKE CONTROL
90987-02001

MX36,RX3#..ARL,EUR,GEN

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-22050

MX3#,RX3#

 1
Common parts
91651-40614
93385-15012
93560-16012
Linked diagrams
8202
8714

(7612-8008)

Click highlighted areas on diagram

diagram 7701 83320 83320 83320 83361 83361 84095 84231 84232 84233 84233 84234 84234 84235 84236 84340 84380 84532 84810 84810 84810 84810 84820 85450 85460 85470 85480 9016840007 9017908026 9017908196 9020108456 9020108456 9020108456 9020108456 9020108456 9020108456 9056008268 9165140610 9331914010 9331914010 9412040800 9412040800 9412041000
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-29235

MX36,RX35..DLX

 1
83320 - GAGE ASSY, FUEL SENDER
83320-29235

MX36,RX35..DLX

 1
83320 - GAGE ASSY, FUEL SENDER
83320-29235

MX36,RX35..DLX

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

MX3#,RX3#,TX30

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

MX3#,RX3#,TX30

 1
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-20030

MX3#,RX3#,TX30..3FC,4F,5F

 1
84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)
84231-20010

MX3#,RX3#..DLX,SDX

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-20040

MX3#,RX3#

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84230-20040

MX3#,RX3#

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84230-20040

MX3#,RX3#,TX30..SED,WG

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84230-20040

MX3#,RX3#,TX30..SED,WG

 2
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84231-20010

MX36,RX35

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22060

MX3#,RX3#,TX30

 1
84380 - SWITCH ASSY, BRAKE WARNING TEST
84380-20010

MX3#,RX3#,TX30..3FC,4F,5F

 1
Common parts
90168-40007
90179-08026
90179-08196
90201-08456
90560-08268
91651-40610
93319-14010
94120-40800
94120-41000
Linked diagrams
7701
