RX35L-WHDC (1977)
Toyota Cressida
(7612-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

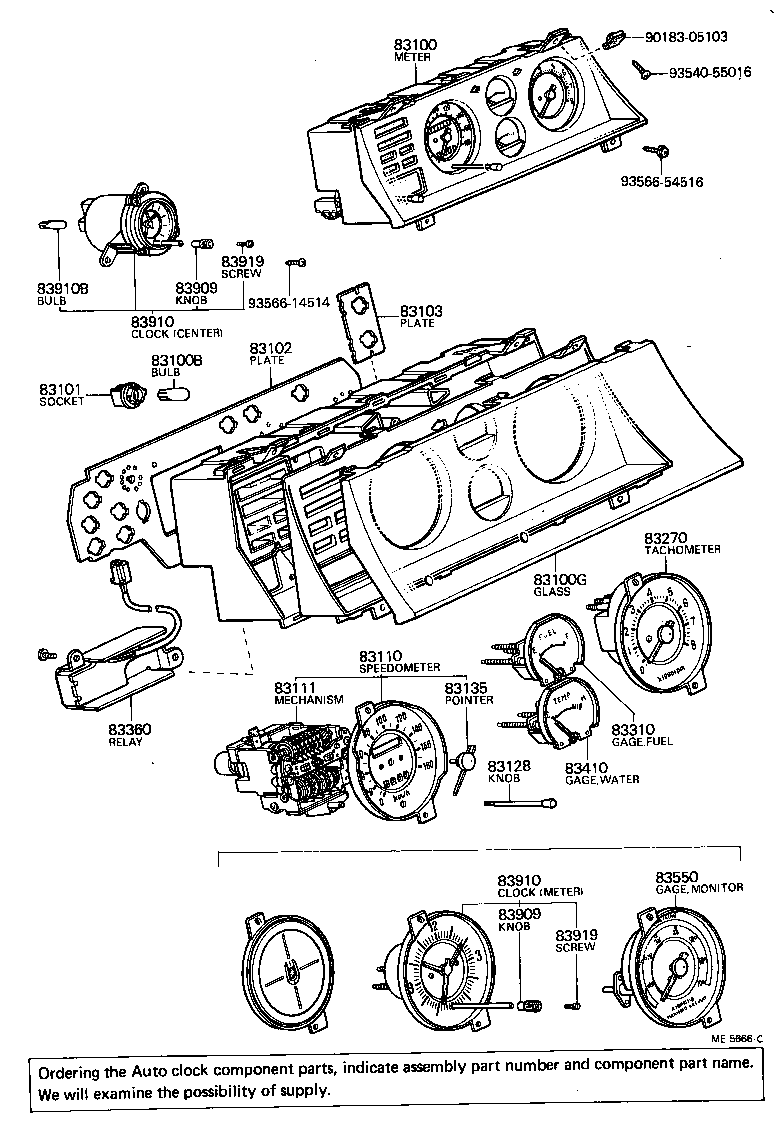

| 83100 - METER ASSY, COMBINATION | ||||
| 83100-22620 |
RX3#..LHD..DLX MILE,W/ED MONITOR |
1 | ||
| 83100-22600 |
RX3#..LHD..DLX KM,W/ED MONITOR |
1 | ||
| 83100-22840 |
RX3#..LHD..DLX..EUR MILE,W/TACHOMETER |
1 | ||
| 83100-22830 |
RX3#..LHD..DLX..EUR KM.,W/TACHOMETER |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
MX3#,RX3#,TX30 12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-22600 |
RX3#..LHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
MX3#,RX3#,TX30 |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22030 |
RX3#..LHD |
1 | ||
| 83247-22110 |
RX3#..LHD |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-22040 |
MX3#,RX3#,TX30 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83241-22020 |
MX3#,RX3# KM |
1 | ||
| 83241-22040 |
RX3#..EUR,GEN MILE |
1 | ||
| 83110-22310 |
RX3#..EUR,GEN MILE & KM |
1 | ||
| 83110-22300 |
MX3#,RX3# KM |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-22550 |
MX3#,RX3# KM |
1 | ||
| 83112-22560 |
RX3#..EUR,GEN MILE |
1 | ||
| 83112-22630 |
RX3#..EUR,GEN MILE |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-22480 |
MX3#,RX3#,TX30 |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-22480 |
MX3#,RX3#,TX30 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22090 |
RX30..5F..SA;RX3#..(DLX,GL)..EUR |
1 | ||
| 83242-22010 |
RX3#..DLX..EUR |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22020 |
MX3#,RX3#..DLX,SDX |
1 | ||
| 83243-22020 |
RX3#..LHD..DLX |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22010 |
MX3#,RX3# |
1 | ||
| 83244-22030 |
MX3#,RX3# |
1 | ||
| 83550 - GAGE ASSY, ED MONITOR | ||||
| 83558-22010 |
MX3#,RX3#..DLX,SDX |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
MX3#,RX3#..DLX,SDX FOR CENTER |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
MX3#,RX3#..DLX,SDX FOR CENTER |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22060 |
MX3#,RX3#..DLX FOR CENTER |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22060 |
MX3#,RX3#..DLX FOR CENTER |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 99132-11034 |
MX3#,RX3#..DLX,SDX 12V 3.4W |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
MX3#,RX3#..DLX,SDX FOR CENTER |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
MX3#,RX3#..DLX,SDX FOR CENTER |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93540-55016 | ||||
| 93566-14514 | ||||
| 93566-54516 | ||||
(7612-8008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
MX3#,RX3#..DLX,SDX *H,L=200,MARK=#0 |
1 | ||
| 90445-08165 |
RX3#..LHD..DLX L=800 |
1 | ||
| 83550A - HOSE, ED MONITOR GAGE | ||||
| 95411-10030 |
MX3#,RX3#..DLX,SDX *H,L=200,MARK=#0 |
1 | ||
| 90445-08165 |
RX3#..LHD..DLX L=800 |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90404-51093 |
RX3#..DLX 2 WAY |
1 | ||
| 90413-04001 |
RX3#..DLX..(EUR,SA) 3 WAY |
1 | ||
| 90413-04005 |
RX3#..DLX..(EUR,SA) 3 WAY |
1 | ||
| 83550B - UNION OR WAY, ED MONITOR GAGE | ||||
| 90404-51093 |
RX3#..DLX 2 WAY |
1 | ||
| 90413-04001 |
RX3#..DLX..(EUR,SA) 3 WAY |
1 | ||
| 90413-04005 |
RX3#..DLX..(EUR,SA) 3 WAY |
1 | ||
| 83550V - VALVE, VACUUM TRANSMITTING | ||||
| 90925-01028 |
MX3#,RX3#..DLX,SDX |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-29396 |
RX3#..LHD..3FC L=1650 |
1 | ||
| Common parts | ||||
| 83791-22030 | ||||
| 83791-22040 | ||||
| 83791-22050 | ||||
| 83791-22060 | ||||
| 90201-07069 | ||||
| 90303-05002 | ||||
| 90463-15617 | ||||
| 90464-00087 | ||||
| 90480-26001 | ||||
| 90480-26043 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||
