RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)

Click highlighted areas on diagram

diagram 8271122020 8271122040 8271122050 8271122070 8271122080 8271122100 8271122120 8271122130 8271122140 8271122150 8271122170 8271122230 8271122270 8271123010 8271123020 8271123030 8281714040 8281722220 8281730090 8281730120 8281922050 9046106006 9046106075 9046106076 9046106083
Part # Description Qty Price
Common parts
82711-22020
82711-22040
82711-22050
82711-22070
82711-22080
82711-22100
82711-22120
82711-22130
82711-22140
82711-22150
82711-22170
82711-22230
82711-22270
82711-23010
82711-23020
82711-23030
82817-14040
82817-22220
82817-30090
82817-30120
82819-22050
90461-06006
90461-06075
90461-06076
90461-06083

(7612-8008)RX3#,TX30

Click highlighted areas on diagram

diagram 82001 82001 82001 82001 82210 82210C 82214A 82214A 82222 82223 82230 82230B 82241C 82310 82345 82371 82375A 8282122080 8282122080 82825 82826 82826 8401 9011906049 9018305094 9161140820 9165140612 9165540616 9165540616 9165540616 9165540616 9165540616 9165540616 9354015012
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07061

MX3#,RX3#

L=300

 1
90980-07062

MX3#,RX3#

L=260

 1
90980-07114

MX3#,RX3#

L=450

 1
90982-02131

RX3#

L=310 FOR ENGINE MOUNTING

 1
82001 - CABLE, BOND, NO.1
90980-07061

MX3#,RX3#

L=300

 1
90980-07062

MX3#,RX3#

L=260

 1
90980-07114

MX3#,RX3#

L=450

 1
90982-02131

RX3#

L=310 FOR ENGINE MOUNTING

 1
82001 - CABLE, BOND, NO.1
90980-07061

MX3#,RX3#

L=300

 1
90980-07062

MX3#,RX3#

L=260

 1
90980-07114

MX3#,RX3#

L=450

 1
90982-02131

RX3#

L=310 FOR ENGINE MOUNTING

 1
82001 - CABLE, BOND, NO.1
90980-07061

MX3#,RX3#

L=300

 1
90980-07062

MX3#,RX3#

L=260

 1
90980-07114

MX3#,RX3#

L=450

 1
90982-02131

RX3#

L=310 FOR ENGINE MOUNTING

 1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82270-22360

RX3#..LHD

 1
82270-22362

RX3#..LHD

 1
82270-22363

RX3#..LHD

 1
82270-22361

RX3#..LHD

 1
82210C - FUSIBLE LINK
90982-08048

MX3#,RX3#,TX30

 1
82214A - WIRE, LAMP
82214-23010

MX36,RX35

 1
82214-23020

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

REAR WIPER

 1
82214A - WIRE, LAMP
82214-23010

MX36,RX35

 1
82214-23020

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

REAR WIPER

 1
82222 - WIRE, HEAT GAGE
82219-22020

RX3#

 1
82223 - WIRE, SWITCH
82241-22070

RX3#

L/RHEOSTAT

 1
82230 - WIRING ASSY, FRONT SIDE
82230-22150

RX3#..LHD

 1
82230-22152

RX3#..LHD

 1
82230-22153

RX3#..LHD

 1
82230-22151

RX3#..LHD

 1
82230-22154

RX3#..LHD

 1
82345 - DIODE
82345-22010

MX3#,RX3#

2-PIECE DIODE

 1
82371 - WIRE, WIPER RELAY
82241-22060

RX3#

 1
82375A - WIRE, WIPER MOTOR
82375-22021

RX3#..LHD

 1
82375-22020

RX3#..LHD

 1
82825 - PROTECTOR, WIRING HARNESS
82817-22160

MX3#,RX3#

L=1440

 1
82826 - COVER, WIRING HARNESS HOLE
82821-22010

MX3#,RX3#

 2
82826 - COVER, WIRING HARNESS HOLE
82821-22010

MX3#,RX3#

 2
Common parts
82821-22080
90119-06049
90183-05094
91611-40820
91651-40612
91655-40616
93540-15012
Linked diagrams
8401

(7612-8008)

Click highlighted areas on diagram

diagram 9046106303 9046106423 9046106804 9046108175 9046108183 9046108200 9046108202 9046108206 9046108210 9046108218 9046108302 9046108430 9046108972 9046110229 9046110233 9046110932 9046112803 9046304008 9046304079 9046304202 9046304340 9046304517 9046304573 9046306295 9046310010
Part # Description Qty Price
Common parts
90461-06303
90461-06423
90461-06804
90461-08175
90461-08183
90461-08200
90461-08202
90461-08206
90461-08210
90461-08218
90461-08302
90461-08430
90461-08972
90461-10229
90461-10233
90461-10932
90461-12803
90463-04008
90463-04079
90463-04202
90463-04340
90463-04517
90463-04573
90463-06295
90463-10010

(7612-8008)

Click highlighted areas on diagram

diagram 8271112200 8271122360 9046105038 9046106032 9046108186 9046310337 9046312007 9046315298 9046315385 9046315419 9046315454 9046315565 9046320303 9046400041 9046400052 9046400072 9046400095 9046400102 9046400108 9046400121 9046400122 9048008001 9048032001 9054107002 9095001150
Part # Description Qty Price
Common parts
82711-12200
82711-22360
90461-05038
90461-06032
90461-08186
90463-10337
90463-12007
90463-15298
90463-15385
90463-15419
90463-15454
90463-15565
90463-20303
90464-00041
90464-00052
90464-00072
90464-00095
90464-00102
90464-00108
90464-00121
90464-00122
90480-08001
90480-32001
90541-07002
90950-01150

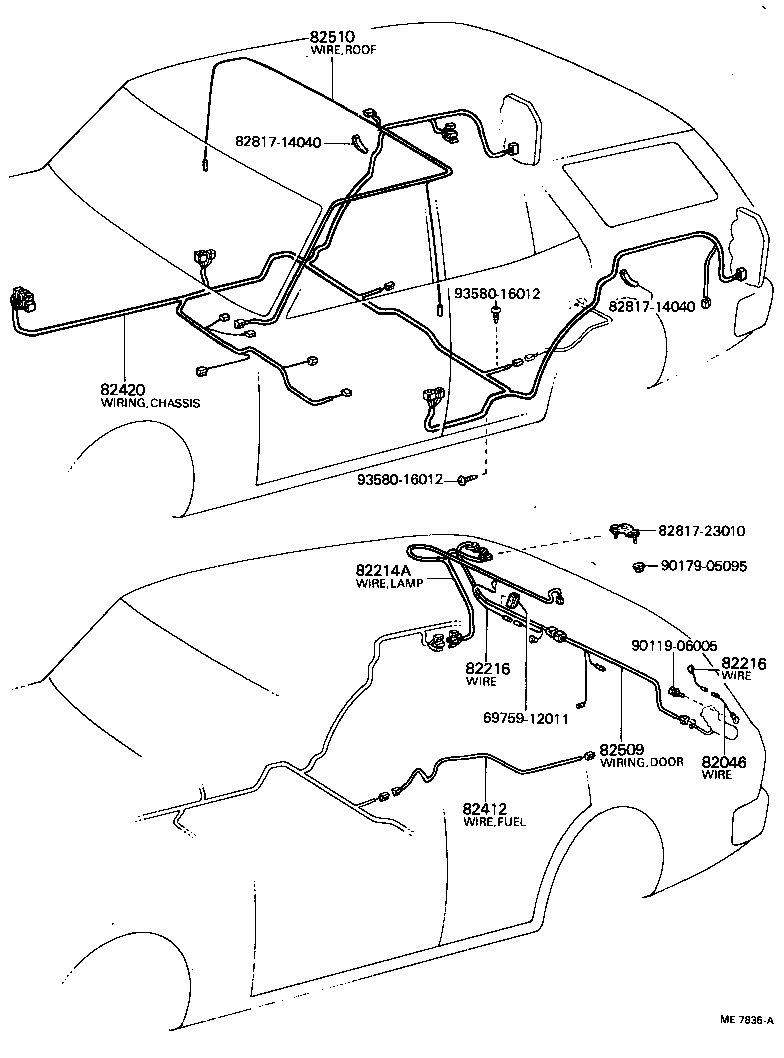

(7612-8008)MX36,RX35

Click highlighted areas on diagram

diagram 6975912011 82046 82214A 82216 82216 82412 82420 82509 82510 8281714040 8281714040 8281723010 9011906005 9017905095 9358016012 9358016012
Part # Description Qty Price
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82046-23020

MX36,RX35

 1
82214A - WIRE, LAMP
82214-23010

MX36,RX35

 1
82214-23020

MX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)

REAR WIPER

 1
82216 - WIRE, REAR WINDOW DEFOGGER
82216-23020

MX36,RX35

 2
82216 - WIRE, REAR WINDOW DEFOGGER
82216-23020

MX36,RX35

 2
82412 - WIRE, FUEL GAGE
82412-23040

MX36,RX35..DLX

 1
82420 - WIRING ASSY, CHASSIS
82420-23160

MX36,RX35..DLX

 1
82509 - WIRING SUB-ASSY, BACK DOOR
82509-23010

MX36,RX35

 1
82510 - WIRING ASSY, ROOF
82510-23080

RX35..LHD

 1
Common parts
69759-12011
82817-14040
82817-23010
90119-06005
90179-05095
93580-16012

(7612-8008)

Click highlighted areas on diagram

diagram 8271122350 9048026043
Part # Description Qty Price
Common parts
82711-22350
90480-26043
