RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX36,RX35

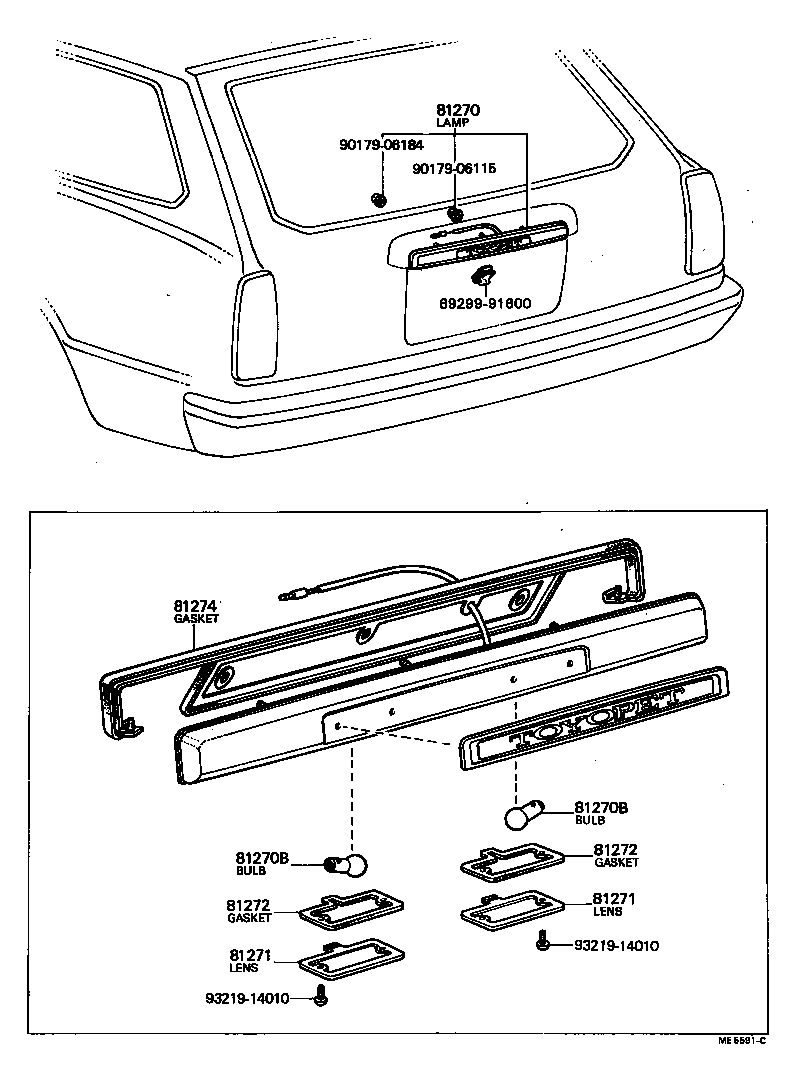

Click highlighted areas on diagram

diagram 6929991600 81270 81270B 81270B 81271 81271 81272 81272 81274 9017906115 9017906184 9321914010 9321914010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-19255

MX36,RX35

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

MX3#,RX3#,TX30

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

MX3#,RX3#,TX30

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-13070

MX36,RX35

 2
81271 - LENS, LICENSE PLATE LAMP
81271-13070

MX36,RX35

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-13070

MX36,RX35

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-13070

MX36,RX35

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-13070

MX36,RX35

 1
Common parts
69299-91600
90179-06115
90179-06184
93219-14010
