RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7808)MX36,RX35

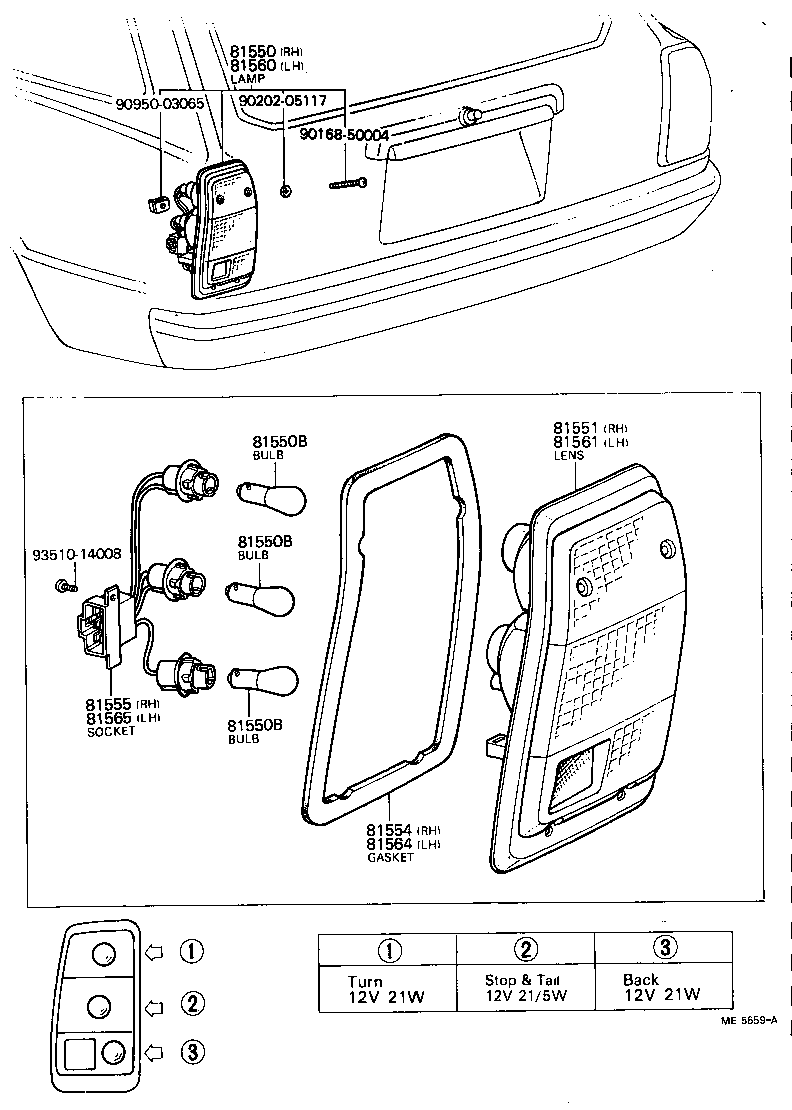

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9016850004 9020205117 9095003065 9351014008
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-29815

MX36,RX35

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

MX3#,RX3#,TX30

12V 21W,12V 21W

 4
99132-21210

MX3#,RX3#,TX30

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

MX3#,RX3#,TX30

12V 21W,12V 21W

 4
99132-21210

MX3#,RX3#,TX30

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

MX3#,RX3#,TX30

12V 21W,12V 21W

 4
99132-21210

MX3#,RX3#,TX30

12V 21/5W,12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-23140

MX36,RX35

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-23130

MX36,RX35

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-23140

MX36,RX35

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-29805

MX36,RX35

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-23140

MX36,RX35

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-23130

MX36,RX35

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-23140

MX36,RX35

 1
Common parts
90168-50004
90202-05117
90950-03065
93510-14008
