RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)LHD

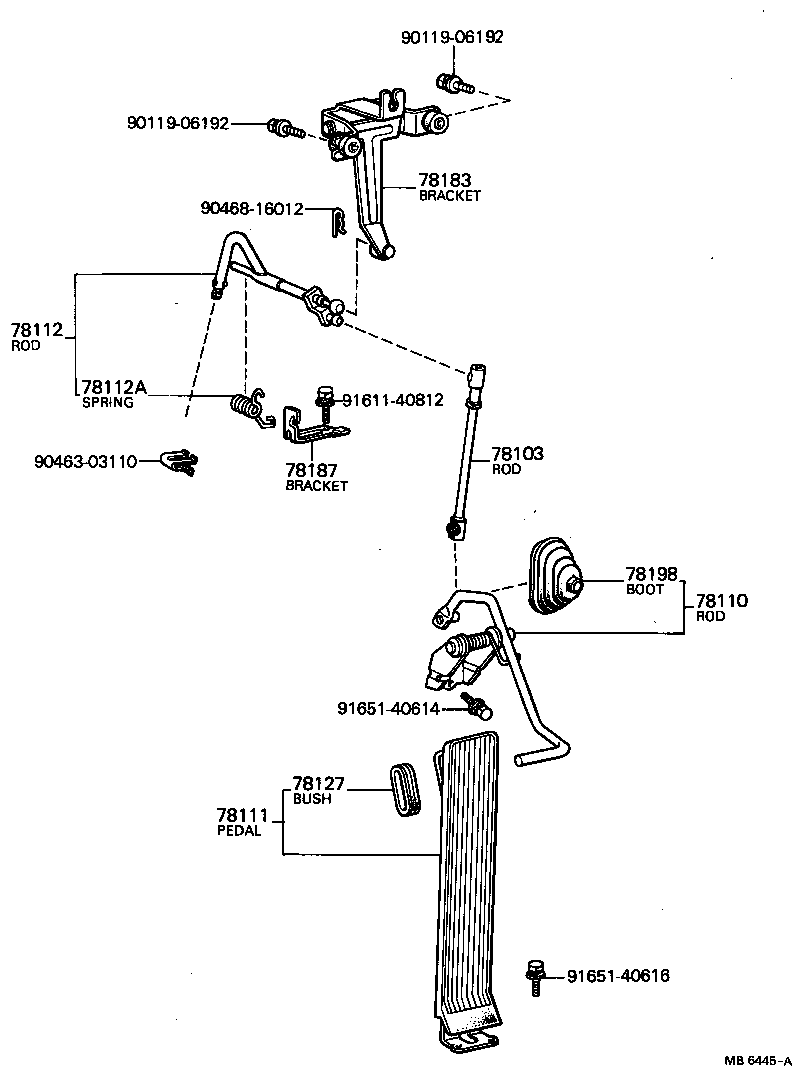

Click highlighted areas on diagram

diagram 78103 78110 78111 78112 78112A 78127 78183 78187 78198 9011906192 9011906192 9046303110 9046816012 9161140812 9165140614 9165140616
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-22080

RX3#..LHD

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22050

RX3#..LHD

 1
78111 - PEDAL, ACCELERATOR
78010-22050

RX3#..LHD

 1
78112 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4
78106-22100

RX3#..LHD

 1
78112A - SPRING (FOR ACCELRATOR CONNECTING ROD)
90508-14341

RX3#

 1
78127 - BUSH, ACCELERATOR PEDAL, NO.2
78127-20010

RX3#..LHD

 1
78183 - BRACKET, ACCELERATOR LINK ROD
78170-22050

RX3#..LHD

 1
78187 - BRACKET, ACCELERATOR PULL BACK SPRING
78187-20040

RX3#

 1
78198 - BOOT, ACCELERATOR CONNECTING ROD
78199-22020

RX3#..LHD

 1
Common parts
90119-06192
90463-03110
90468-16012
91611-40812
91651-40614
91651-40616
