RX35L-WHDC (1977)
Toyota Cressida

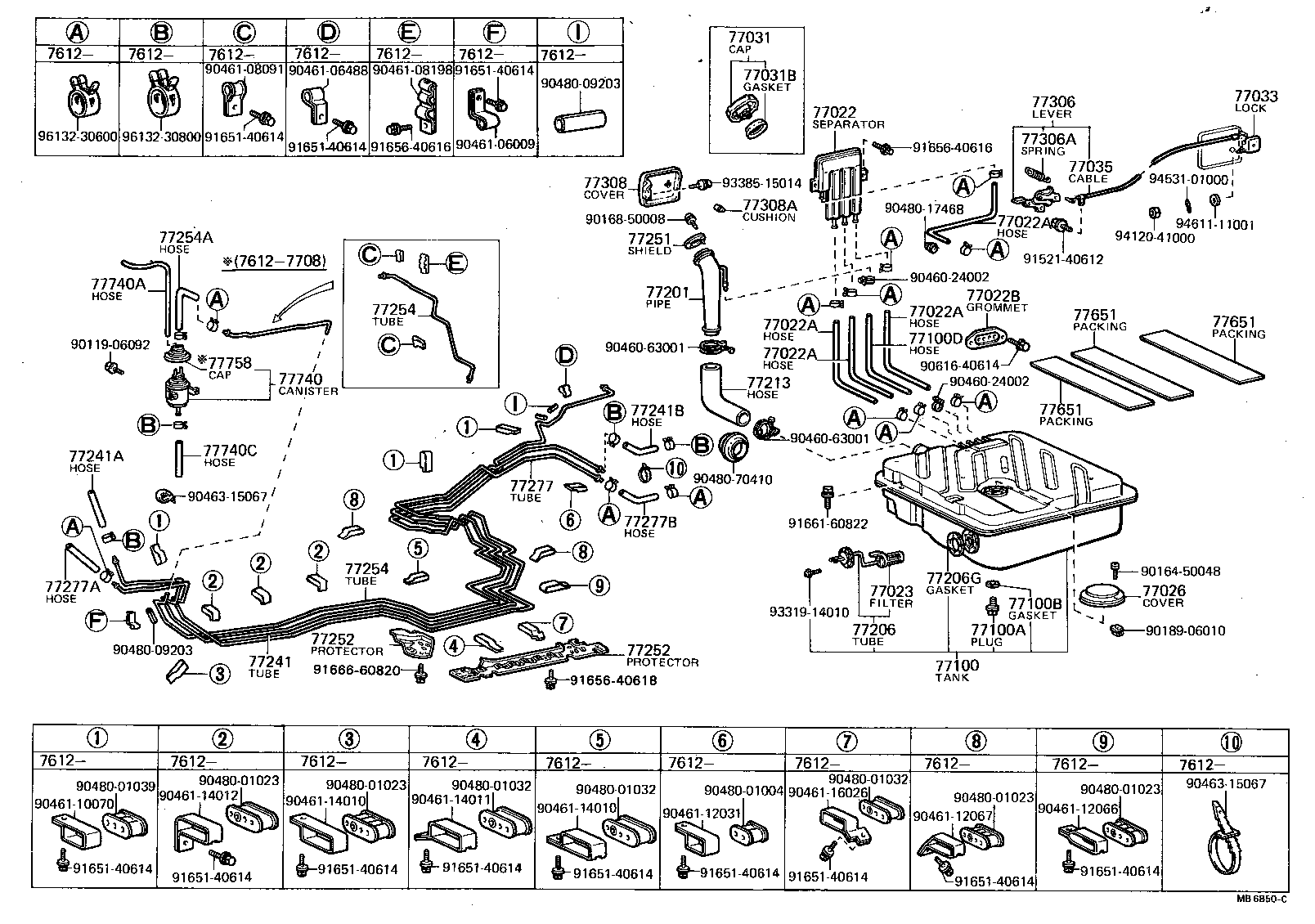

(7612-8008)RX35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-13010 |
MX36,RX35 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022B - GROMMET(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE) | ||||
| 77290-91600 |
MX36,RX35 |
1 | ||
| 77026 - COVER SUB-ASSY, FUEL SENDER GAGE | ||||
| 77029-91600 |
RX35 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
MX3#,RX3# |
1 | ||
| 77310-30050 |
MX3#,RX3# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12060 |
MX3#,RX3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-91617 |
RX35 |
1 | ||
| 77001-91618 |
RX35 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
MX36,RX35 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
MX36,RX35 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22007 |
MX36,RX35 L=520 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-91600 |
RX35 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91606 |
MX36,RX35 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91605 |
MX36,RX35 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-91613 |
RX35 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95331-06014 |
RX3# *H,L=140 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06024 |
RX3# *H,L=240 |
1 | ||
| 95331-06022 |
RX35 *H,L=220 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
MX36,RX35 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77267-22020 |
RX3#,TX30 FOR FRONT |
1 | ||
| 77266-22030 |
RX3#,TX30 FOR REAR |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77267-22020 |
RX3#,TX30 FOR FRONT |
1 | ||
| 77266-22030 |
RX3#,TX30 FOR REAR |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91600 |
MX36,RX35 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-03001 |
MX3#,RX3# |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
MX36,RX35 110X600 |
3 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
MX36,RX35 110X600 |
3 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
MX36,RX35 110X600 |
3 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
MX32,RX3#,TX30..EUR,GEN,SA |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 90168-50008 | ||||
| 90189-06010 | ||||
| 90460-24002 | ||||
| 90460-63001 | ||||
| 90461-08091 | ||||
| 90461-10076 | ||||
| 90461-12031 | ||||
| 90461-12066 | ||||
| 90461-14010 | ||||
| 90461-14011 | ||||
| 90461-14012 | ||||
| 90461-16025 | ||||
| 90480-01003 | ||||
| 90480-01004 | ||||
| 90480-01024 | ||||
| 90480-01031 | ||||
| 90480-09203 | ||||
| 90480-17468 | ||||
| 90480-70410 | ||||
| 91521-40612 | ||||
| 91616-40614 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 91656-40618 | ||||
| 91661-60822 | ||||
| 91666-60820 | ||||
| 93315-15014 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 94611-11001 | ||||
| 96132-30600 | ||||

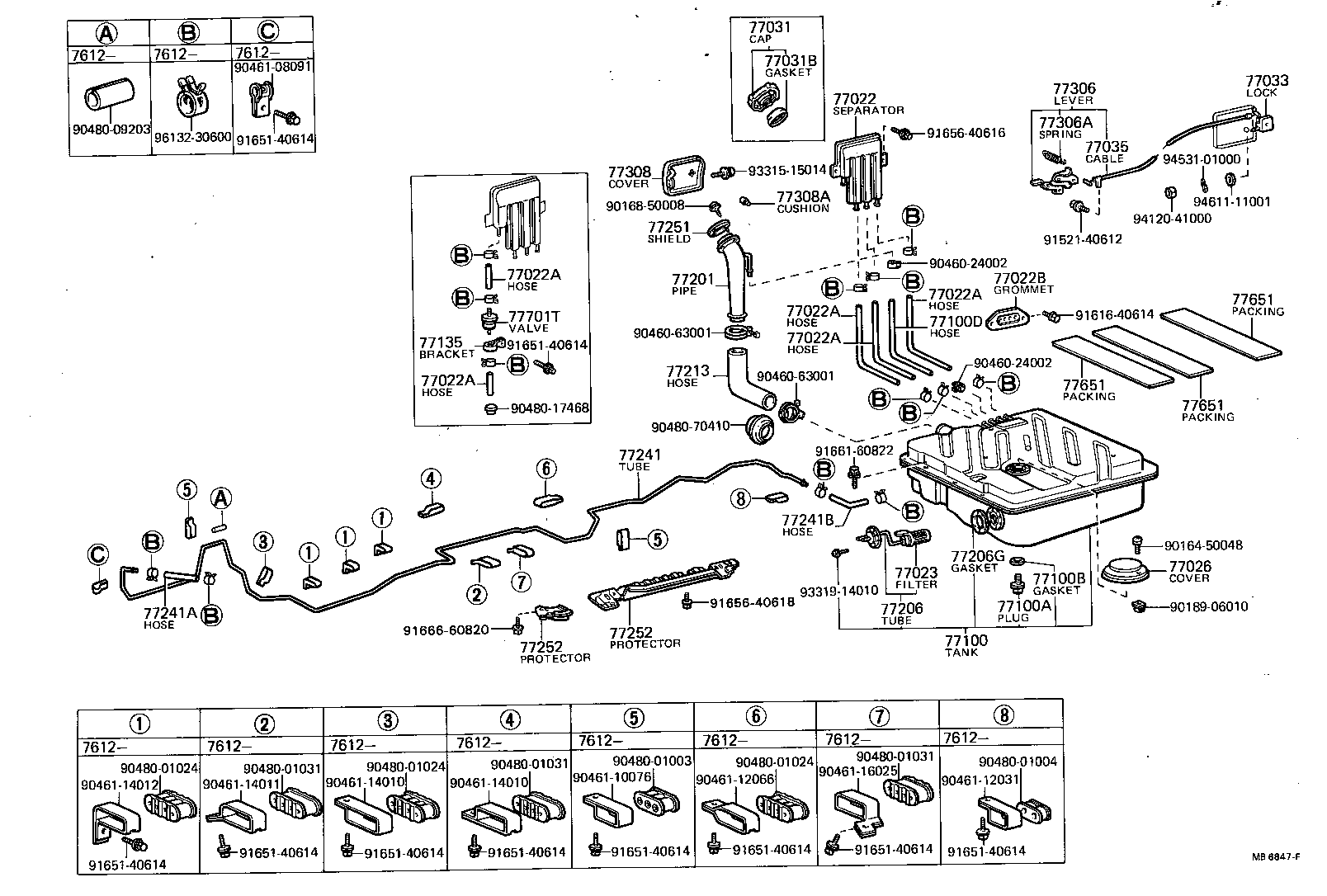

(7612-8008)RX35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-13010 |
MX36,RX35 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95331-06050 |
MX36,RX35 *H,L=500 |
3 | ||
| 95331-06010 |
RX35 *H,L=100 |
1 | ||
| 95331-06006 |
RX35 *H,L=60 |
1 | ||
| 77022B - GROMMET(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE) | ||||
| 77290-91600 |
MX36,RX35 |
1 | ||
| 77026 - COVER SUB-ASSY, FUEL SENDER GAGE | ||||
| 77029-91600 |
RX35 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
MX3#,RX3# |
1 | ||
| 77310-30050 |
MX3#,RX3# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12060 |
MX3#,RX3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-91617 |
RX35 |
1 | ||
| 77001-91618 |
RX35 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
MX36,RX35 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
MX36,RX35 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22007 |
MX36,RX35 L=520 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91606 |
MX36,RX35 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91605 |
MX36,RX35 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-91613 |
RX35 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95331-06014 |
RX3# *H,L=140 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06024 |
RX3# *H,L=240 |
1 | ||
| 95331-06022 |
RX35 *H,L=220 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
MX36,RX35 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77267-22020 |
RX3#,TX30 FOR FRONT |
1 | ||
| 77266-22030 |
RX3#,TX30 FOR REAR |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77267-22020 |
RX3#,TX30 FOR FRONT |
1 | ||
| 77266-22030 |
RX3#,TX30 FOR REAR |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91600 |
MX36,RX35 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-03001 |
MX3#,RX3# |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
MX36,RX35 110X600 |
3 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
MX36,RX35 110X600 |
3 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-21010 |
MX36,RX35 110X600 |
3 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90164-50048 | ||||
| 90168-50008 | ||||
| 90189-06010 | ||||
| 90460-24002 | ||||
| 90460-63001 | ||||
| 90461-06009 | ||||
| 90461-06488 | ||||
| 90461-08091 | ||||
| 90461-08198 | ||||
| 90461-10070 | ||||
| 90461-12031 | ||||
| 90461-12066 | ||||
| 90461-12067 | ||||
| 90461-14010 | ||||
| 90461-14011 | ||||
| 90461-14012 | ||||
| 90461-16026 | ||||
| 90463-15067 | ||||
| 90480-01004 | ||||
| 90480-01023 | ||||
| 90480-01032 | ||||
| 90480-01039 | ||||
| 90480-09203 | ||||
| 90480-17468 | ||||
| 90480-70410 | ||||
| 90616-40614 | ||||
| 91521-40612 | ||||
| 91651-40614 | ||||
| 91656-40616 | ||||
| 91656-40618 | ||||
| 91661-60822 | ||||
| 91666-60820 | ||||
| 93319-14010 | ||||
| 93385-15014 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 94611-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
