RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX36,RX35

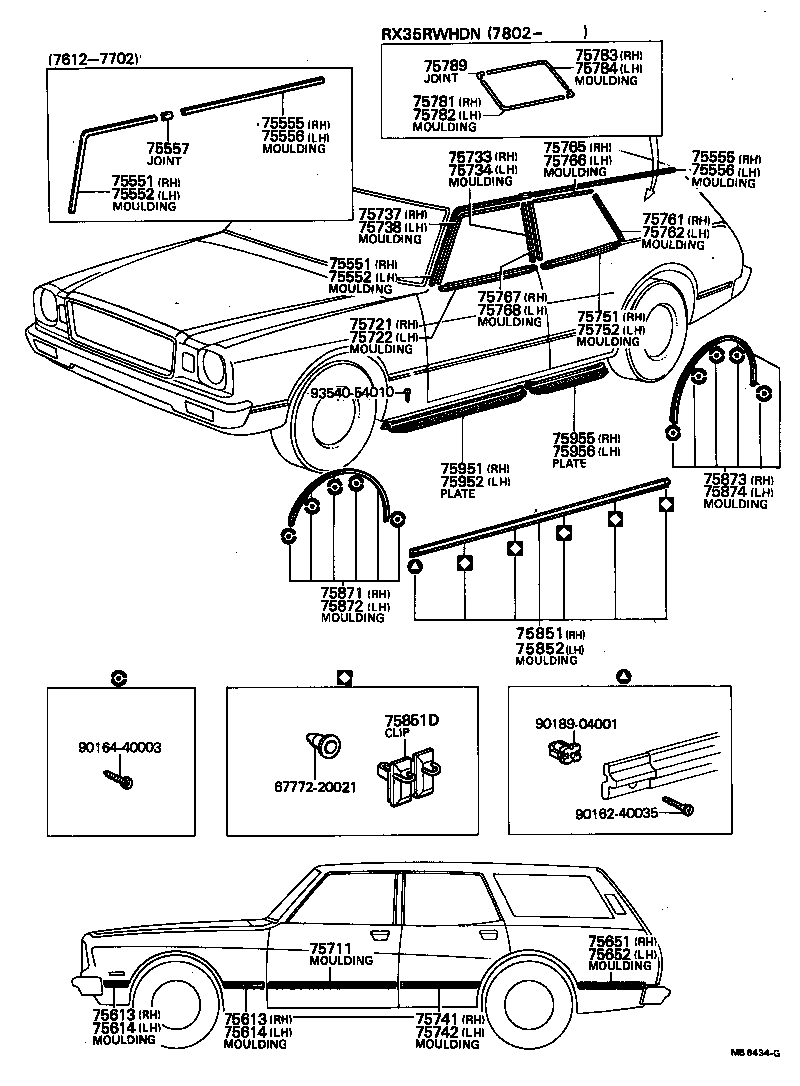

Click highlighted areas on diagram

diagram 6777220021 75551 75551 75552 75552 75555 75555 75556 75556 75557 75613 75613 75614 75614 75651 75652 75711 75721 75722 75733 75734 75737 75738 75741 75742 75751 75752 75761 75762 75765 75766 75767 75768 75781 75782 75783 75784 75789 75851 75851D 75852 75871 75872 75873 75874 75951 75952 75955 75956 9016240035 9016440003 9018904001 9354054010
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75505-22030

MX3#,RX3#..(SED,WG)..DLX

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75505-22030

MX3#,RX3#..(SED,WG)..DLX

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75506-22030

MX3#,RX3#..(SED,WG)..DLX

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75506-22030

MX3#,RX3#..(SED,WG)..DLX

 1
75555 - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-91606

MX36,RX35..DLX

 1
75555 - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-91606

MX36,RX35..DLX

 1
75556 - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-91606

MX36,RX35..DLX

 1
75556 - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-91606

MX36,RX35..DLX

 1
75557 - JOINT, ROOF DRIP SIDE FINISH MOULDING
75555-22010

MX3#,RX3#..(SED,WG)..DLX

 2
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75615-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75613-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75613-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75615-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75613 - MOULDING, FRONT FENDER, OUTSIDE RH
75615-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75613-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75613-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75615-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75614-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75614-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75616-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75616-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75614 - MOULDING, FRONT FENDER, OUTSIDE LH
75614-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75614-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR FRONT

 1
75616-22020

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75616-22021

MX3#;RX3#..DLX..(EUR,GEN)

FOR REAR

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-22020

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

 1
75651-22021

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-22021

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

 1
75652-22020

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

 1
75711 - MOULDING, FRONT DOOR OUTSIDE, NO.1
75732-22040

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

FOR LH.

 1
75731-22040

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

FOR RH.

 1
75731-22041

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

FOR RH.

 1
75732-22041

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

FOR LH.

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-22010

MX3#,RX3#..(SED,WG)..(DLX,GL,SDX)

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-22010

MX3#,RX3#..(SED,WG)..(DLX,GL,SDX)

 1
75733 - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75755-22010

MX3#,RX3#..(SED,WG)..(DLX,SDX)

 1
75734 - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75756-22010

MX3#,RX3#..(SED,WG)..(DLX,SDX)

 1
75737 - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75751-22030

MX3#,RX3#..(SED,WG)..(DLX,SDX)

 1
75738 - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75752-22030

MX3#,RX3#..(SED,WG)..(DLX,SDX)

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-22021

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

 1
75741-22020

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-22011

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

 1
75742-22010

MX3#;RX3#..(SED,WG)..DLX..(EUR,GEN)

 1
75751 - MOULDING, REAR DOOR BELT, RH
75730-22030

MX3#,RX3#..(SED,WG)..(DLX,GL,SDX)

 1
75752 - MOULDING, REAR DOOR BELT, LH
75740-22010

MX3#,RX3#..(SED,WG)..(DLX,GL,SDX)

 1
75761 - MOULDING, REAR DOOR WINDOW FRAME, REAR RH
75765-91605

MX36,RX35..DLX

 1
75762 - MOULDING, REAR DOOR WINDOW FRAME, REAR LH
75766-91600

MX36,RX35..DLX

 1
75765 - MOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75763-91605

MX36,RX35..DLX

 1
75766 - MOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75764-91605

MX36,RX35..DLX

 1
75767 - MOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75761-22040

MX3#,RX3#..(SED,WG)..(DLX,SDX)

 1
75768 - MOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75762-22040

MX3#,RX3#..(SED,WG)..(DLX,SDX)

 1
75851 - MOULDING, ROCKER PANEL, RH
75850-29055

MX3#,RX3#..DLX,GL,SDX

 2
75851D - CLIP(FOR ROCKER PANEL MOULDING SET)
75867-22010

MX3#,RX3#..DLX,GL,SDX

 10
75852 - MOULDING, ROCKER PANEL, LH
75860-29055

MX3#,RX3#..DLX,GL,SDX

 2
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75085-29025

MX3#;RX30..5F..GL..SA;RX3#..(DLX,GL)..(EUR,GEN)

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75086-29025

MX3#;RX30..5F..GL..SA;RX3#..(DLX,GL)..(EUR,GEN)

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75087-29035

MX36,RX35..DLX..(ARL,EUR,GEN)

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75088-29035

MX36,RX35..DLX..(ARL,EUR,GEN)

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-2204001

MX3#,RX3#,TX30..SED,WG

BLACK,BLACK,TRIM2#

 1
67913-2204005

MX3#,RX3#,TX30..SED,WG

BEIGE,BEIGE,TRIM4#

 1
67913-2204003

MX3#,RX3#..SED,WG

GRAY,GRAY,TRIM1#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-2204005

MX3#,RX3#,TX30..SED,WG

BEIGE,BEIGE,TRIM4#

 1
67914-2204001

MX3#,RX3#,TX30..SED,WG

BLACK,BLACK,TRIM2#

 1
67914-2204003

MX3#,RX3#..SED,WG

GRAY,GRAY,TRIM1#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-2204005

MX3#,RX3#,TX30..SED,WG

BEIGE,BEIGE,TRIM4#

 1
67917-2204001

MX3#,RX3#,TX30..SED,WG

BLACK,BLACK,TRIM2#

 1
67917-2204003

MX3#,RX3#..SED,WG

GRAY,GRAY,TRIM1#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67918-2204001

MX3#,RX3#,TX30..SED,WG

BLACK,TRIM2#

 1
67918-2204005

MX3#,RX3#,TX30..SED,WG

BEIGE,BEIGE,TRIM4#

 1
67918-2204003

MX3#,RX3#..SED,WG

GRAY,GRAY,TRIM1#

 1
Common parts
67772-20021
90162-40035
90164-40003
90189-04001
93540-54010
