RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)RX35..EUR

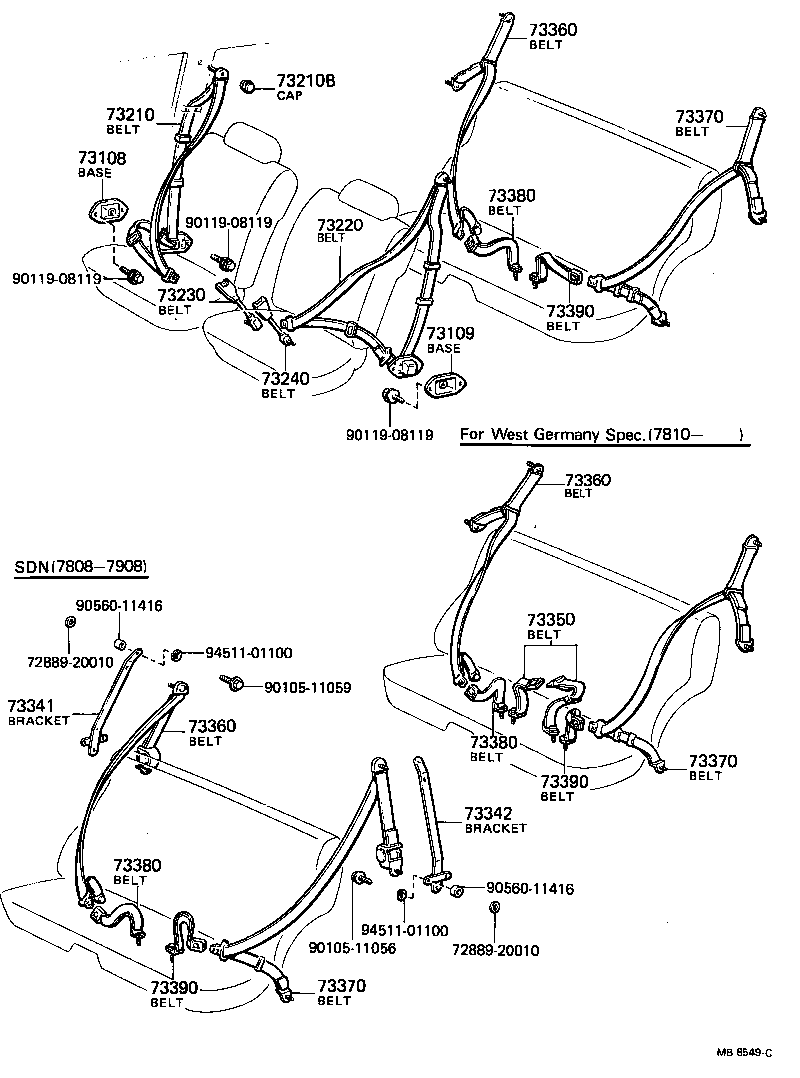

Click highlighted areas on diagram

diagram 7288920010 7288920010 73108 73109 73210 73210B 73220 73230 73240 73341 73342 73350 73360 73360 73360 73370 73370 73370 73380 73380 73380 73390 73390 73390 9010511056 9010511059 9011908119 9011908119 9011908119 9056011416 9056011416 9451101100 9451101100
Part # Description Qty Price
73108 - BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, RH
73108-22010

MX32,RX3#..(SED,WG)..(EUR,GEN,SA)

 1
73109 - BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, LH
73108-22010

MX32,RX3#..(SED,WG)..(EUR,GEN,SA)

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2214001

RX3#..(SED,WG)..(3FC,4F,5F)..EUR

BLACK,BLACK,TRIM2#

 1
73210-2214011

RX3#..(SED,WG)..(3FC,4F,5F)..EUR

BELT-BLACK,ANCHOR COVER-GRAY,BLACK,TRIM1#

 1
73210-2214025

RX3#..(SED,WG)..(3FC,4F,5F)..EUR

BEIGE,BEIGE,TRIM4#

 1
73210B - CAP (FOR FRONT SEAT OUTER BELT)
73178-1201015

MX3#,RX3#..ARL,EUR,GEN

BEIGE,BEIGE,TRIM4#

 2
73178-1201003

MX3#,RX3#..ARL,EUR,GEN

GRAY,GRAY,TRIM1#

 2
73178-1201011

MX3#,RX3#..ARL,EUR,GEN

BLACK,BLACK,TRIM2#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-2205011

RX3#..(SED,WG)..(3FC,4F,5F)..EUR

BELT-BLACK,ANCHOR COVER-GRAY,BLACK,TRIM1#

 1
73220-2205001

RX3#..(SED,WG)..(3FC,4F,5F)..EUR

BLACK,BLACK,TRIM2#

 1
73220-2205025

RX3#..(SED,WG)..(3FC,4F,5F)..EUR

BEIGE,BEIGE,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2211005

MX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)

BEIGE,BEIGE,TRIM4#

 1
73230-2211001

MX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)

BLACK,BLACK,TRIM2#

 1
73230-2211003

MX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)

GRAY,GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-2211001

MX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)

BLACK,BLACK,TRIM2#

 1
73230-2211005

MX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)

BEIGE,BEIGE,TRIM4#

 1
73230-2211003

MX3#,RX3#..(3FC,4F,5F)..(ARL,EUR)

GRAY,GRAY,TRIM1#

 1
73341 - BRACKET, REAR BELT SHOULDER RETRACTOR, RH
73341-91600

RX35..SDN

 1
73342 - BRACKET, REAR BELT SHOULDER RETRACTOR, LH
73341-91600

RX35..SDN

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-9160501

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73360-9160505

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73360-9160502

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-9160501

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73360-9160505

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73360-9160502

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-9160501

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73360-9160505

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73360-9160502

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-9160501

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73360-9160505

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73360-9160502

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-9160501

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73360-9160505

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73360-9160502

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-9160501

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73360-9160505

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73360-9160502

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-2203101

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73380-2203105

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73380-2203102

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-2203101

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73380-2203105

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73380-2203102

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-2203101

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73380-2203105

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73380-2203102

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-2203102

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73380-2203101

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73380-2203105

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-2203102

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73380-2203101

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73380-2203105

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-2203102

RX35..SDN

DARK WINE,RED/MAROON,TRIM3#

 1
73380-2203101

RX35..SDN

BLACK,BLACK,TRIM2#

 1
73380-2203105

RX35..SDN

BEIGE,BEIGE,TRIM4#

 1
Common parts
72889-20010
90105-11056
90105-11059
90119-08119
90560-11416
94511-01100
