RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX36,RX35

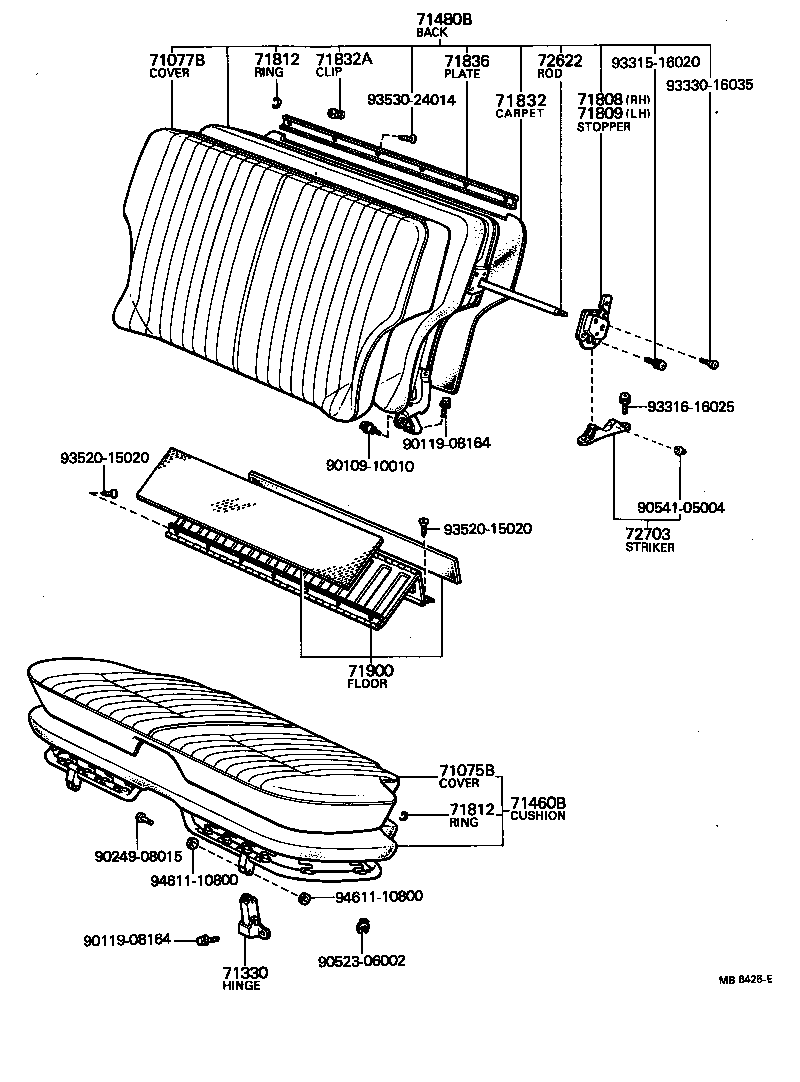

Click highlighted areas on diagram

diagram 71075B 71077B 71330 71460B 71480B 71808 71809 71812 71812 71832 71832A 71836 71900 72622 72703 9010910010 9011908164 9011908164 9024908015 9052306002 9054105004 9331516020 9331616025 9333016035 9352015020 9352015020 9353024014 9461110800 9461110800
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-9163501

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.BLACK,BLACK,TRIM2#

 1
71075-9163503

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.GRAY,GRAY,TRIM1#

 1
71075-9163603

MX36,RX35..3FC,4F,5F

FB.GRAY,GRAY,TRIM1#

 1
71075-9163601

MX36,RX35..3FC,4F,5F

FB.BLACK,BLACK,TRIM2#

 1
71075-9163505

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.BEIGE,BEIGE,TRIM4#

 1
71075-9163605

MX36,RX35..3FC,4F,5F

FB.BEIGE,BEIGE,TRIM4#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-9165403

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.GRAY,GRAY,TRIM1#

 1
71077-9165401

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.BLACK,BLACK,TRIM2#

 1
71077-9165503

MX36,RX35..DLX;RX35..RHD..STD..EUG

FB.GRAY,GRAY,TRIM1#

 1
71077-9165501

MX36,RX35..DLX;RX35..RHD..STD..EUG

FB.BLACK,BLACK,TRIM2#

 1
71077-9165405

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.BEIGE,BEIGE,TRIM4#

 1
71077-9165505

MX36,RX35..DLX;RX35..RHD..STD..EUG

FB.BEIGE,BEIGE,TRIM4#

 1
71330 - HINGE ASSY, REAR SEAT CUSHION
71301-91600

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-9166501

MX36,RX35..DLX;RX35..RHD..STD..EUG

FB.BLACK,BLACK,TRIM2#

 1
71460-9166401

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.BLACK,BLACK,TRIM2#

 1
71460-9166503

MX36,RX35..DLX;RX35..RHD..STD..EUG

FB.GRAY,GRAY,TRIM1#

 1
71460-9166505

MX36,RX35..DLX;RX35..RHD..STD..EUG

FB.BEIGE,BEIGE,TRIM4#

 1
71460-9166405

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.BEIGE,BEIGE,TRIM4#

 1
71460-9166403

MX36,RX35..DLX;RX35..4F..STD..(EUR,GEN)

PF.GRAY,GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71490-9167801

MX36,RX35..DLX..(ARL,EUR,GEN)

PF.BLACK,BLACK,TRIM2#

 1
71490-9167603

RX35..STD..SA;MX36,RX35..DLX

FB.GRAY,GRAY,TRIM1#

 1
71490-9167605

RX35..STD..SA;MX36,RX35..DLX

FB.BEIGE,BEIGE,TRIM4#

 1
71490-9167601

RX35..STD..SA;MX36,RX35..DLX

FB.BLACK,BLACK,TRIM2#

 1
71490-9167805

MX36,RX35..DLX..(ARL,EUR,GEN)

PF.BEIGE,BEIGE,TRIM4#

 1
71490-9167803

MX36,RX35..DLX..(ARL,EUR,GEN)

PF.GRAY,GRAY,TRIM1#

 1
71490-9168505

MX36,RX35..DLX

FB.BEIGE,BEIGE,TRIM4#

 1
71808 - STOPPER SUB-ASSY, REAR SEAT BACK, RH
71808-91503

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 1
71809 - STOPPER SUB-ASSY, REAR SEAT BACK, LH
71809-91503

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

MX3#,RX3#,TX30

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71812-30010

MX3#,RX3#,TX30

 1
71832 - CARPET OR MAT, REAR SEAT BACK
71881-9160405

MX36,RX35..DLX

BEIGE,BEIGE,TRIM4#

 1
71881-9160401

MX36,RX35..DLX

BLACK,BLACK,TRIM2#

 1
71881-9160403

MX36,RX35..DLX

GRAY,GRAY,TRIM1#

 1
71881-9161903

MX36,RX35..DLX

GRAY,GRAY,TRIM1#

 1
71881-9160903

MX36,RX35..DLX

GRAY,GRAY,TRIM1#

 1
71881-9160901

MX36,RX35..DLX

BLACK,BLACK,TRIM2#

 1
71881-9161905

MX36,RX35..DLX

BEIGE,BEIGE,TRIM4#

 1
71881-9160905

MX36,RX35..DLX

BEIGE,BEIGE,TRIM4#

 1
71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER
71836-91601

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 1
71900 - FLOOR ASSY, REAR SEAT
72705-9160505

MX36,RX35..DLX

BEIGE,BEIGE,TRIM4#

 1
72705-9160503

MX36,RX35..DLX

GRAY,GRAY,TRIM1#

 1
72705-9160501

MX36,RX35..DLX

BLACK,BLACK,TRIM2#

 1
72622 - ROD, REAR SEAT BACK STOPPER CONNECTING
72622-91603

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 1
72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER
72703-91605

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 2
Common parts
90109-10010
90119-08164
90249-08015
90523-06002
90541-05004
93315-16020
93316-16025
93330-16035
93520-15020
93530-24014
94611-10800
