RX35L-WHDC (1977)
Toyota Cressida
(7612-8008)SED,WG..LHD..3FC,4F,5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2233003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71071-2233005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-2233001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2213001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-2213005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2213003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2245003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71073-2245001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2245005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2267005 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2267001 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-2267003 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2249001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2249005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2257005 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-2257001 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71074-2249003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71074-2257003 |
MX3#,RX3#..(3FC,4F,5F)..DLX..(ARL,EUR,GEN) PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2241003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71410-2241001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-2241005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2218005 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2218003 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71420-2218001 |
MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX) FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2256001 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2256005 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2267003 |
RX3#..(SED,WG)..LHD..(3FC,4F,5F)..DLX FB.W/HEADREST,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2267001 |
RX3#..(SED,WG)..LHD..(3FC,4F,5F)..DLX FB.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2267005 |
RX3#..(SED,WG)..LHD..(3FC,4F,5F)..DLX FB.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2256003 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2272005 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2272001 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-2274003 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.W/HEADREST,GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2274005 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71430-2272003 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71430-2274001 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2250003 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2247001 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2247003 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN FB.GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2250001 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2250005 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2247005 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN FB.BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2262001 |
RX3#..(SED,WG)..LHD..(3FC,4F,5F)..DLX FB.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2263001 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.W/HEADREST,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-2263003 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.W/HEADREST,GRAY,GRAY,TRIM1# |
1 | ||
| 71440-2263005 |
RX30..3FC..SDN;RX35..LHD..DLX;RX30..SED..LHD..DLX..EUG;RX30..SED..LHD..(3FC,4F)..DLX..GEN PF.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2262005 |
RX3#..(SED,WG)..LHD..(3FC,4F,5F)..DLX FB.W/HEADREST,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2262003 |
RX3#..(SED,WG)..LHD..(3FC,4F,5F)..DLX FB.W/HEADREST,GRAY,GRAY,TRIM1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
MX3#,RX3#,TX30 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2224001 |
RX3#..(SED,WG)..(DLX,STD)..(EUR,GEN) BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2224003 |
RX3#..(SED,WG)..(EUR,GEN) GRAY,GRAY,TRIM1# |
2 | ||
| 71910-2224005 |
RX3#..(SED,WG)..(DLX,STD)..(EUR,GEN) BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71956 - SUPPORT, HEADREST | ||||
| 71956-3002001 |
MX3#,RX3# L/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 71990-3002005 |
MX3#,RX3# W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956-3002005 |
MX3#,RX3# L/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71990-3002001 |
MX3#,RX3# W/LOCK,BLACK,BLACK,TRIM1#,2# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-22050 |
MX3#,RX3#..(SED,WG)..(3FC,4F,5F) |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72525-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72526-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72525-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72526-2201005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR LH.BEIGE,BEIGE,TRIM4# |
1 | ||
| 72525-2201001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F FOR RH.BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-22050 |
MX3#,RX3#..(SED,WG)..(3FC,4F,5F) |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71821-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71821-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71821-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71821-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 71821-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71821-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71822-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71822-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71822-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71822-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71822-2205001 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BLACK,BLACK,TRIM2# |
1 | ||
| 71822-2205005 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F BEIGE,BEIGE,TRIM4# |
1 | ||
| 71822-2205003 |
RX30..RHD..3H..DLX;MX3#,RX3#..3FC,4F,5F GRAY,GRAY,TRIM1# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2201001 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72791-2201005 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-2201001 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BLACK,BLACK,TRIM1#,2# |
1 | ||
| 72797-2201005 |
RX30..LHD..3H..DLX;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX) BEIGE,BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10037 | ||||
| 90119-10112 | ||||
| 90151-50003 | ||||
| 90154-80004 | ||||
| 90159-80004 | ||||
| 90162-40026 | ||||
| 90386-12016 | ||||
| 90386-12099 | ||||
| 90564-14155 | ||||
| 93249-54005 | ||||
| 93540-54008 | ||||
| 93560-14008 | ||||
| 93610-55016 | ||||
| 94611-20800 | ||||
| 96160-01000 | ||||

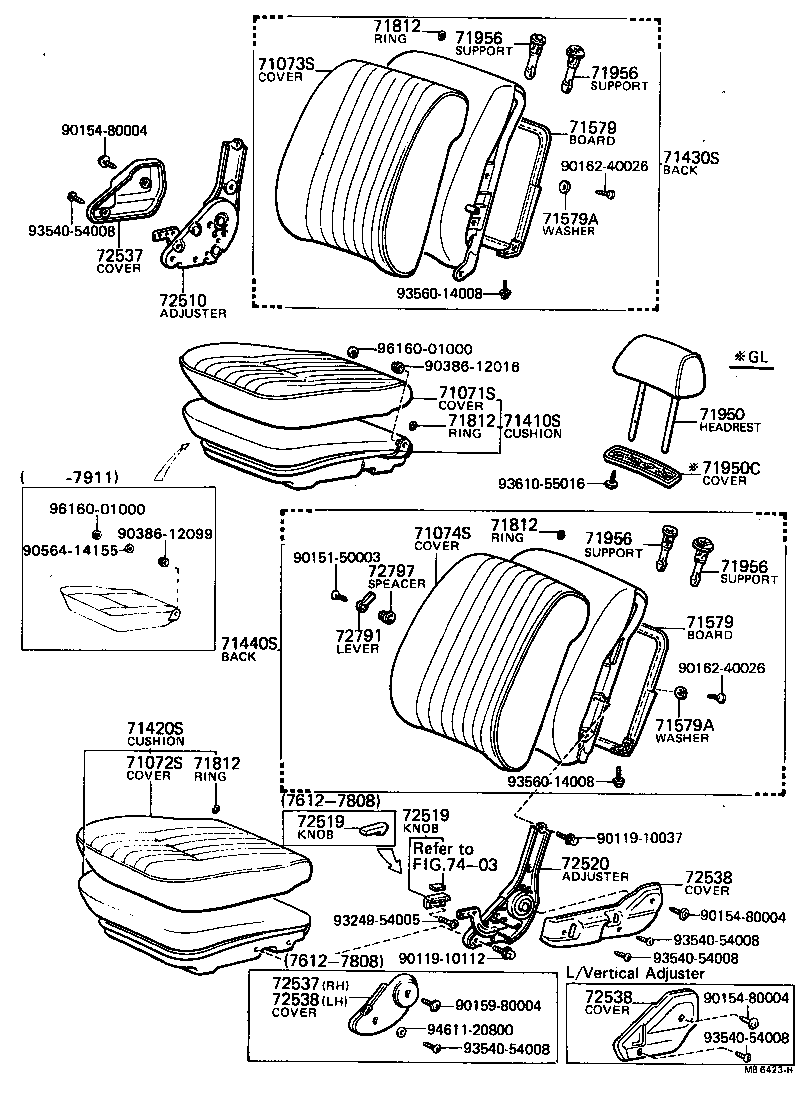

| Linked diagrams | ||||
| 7403 | ||||
