RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7808)MX36,RX35

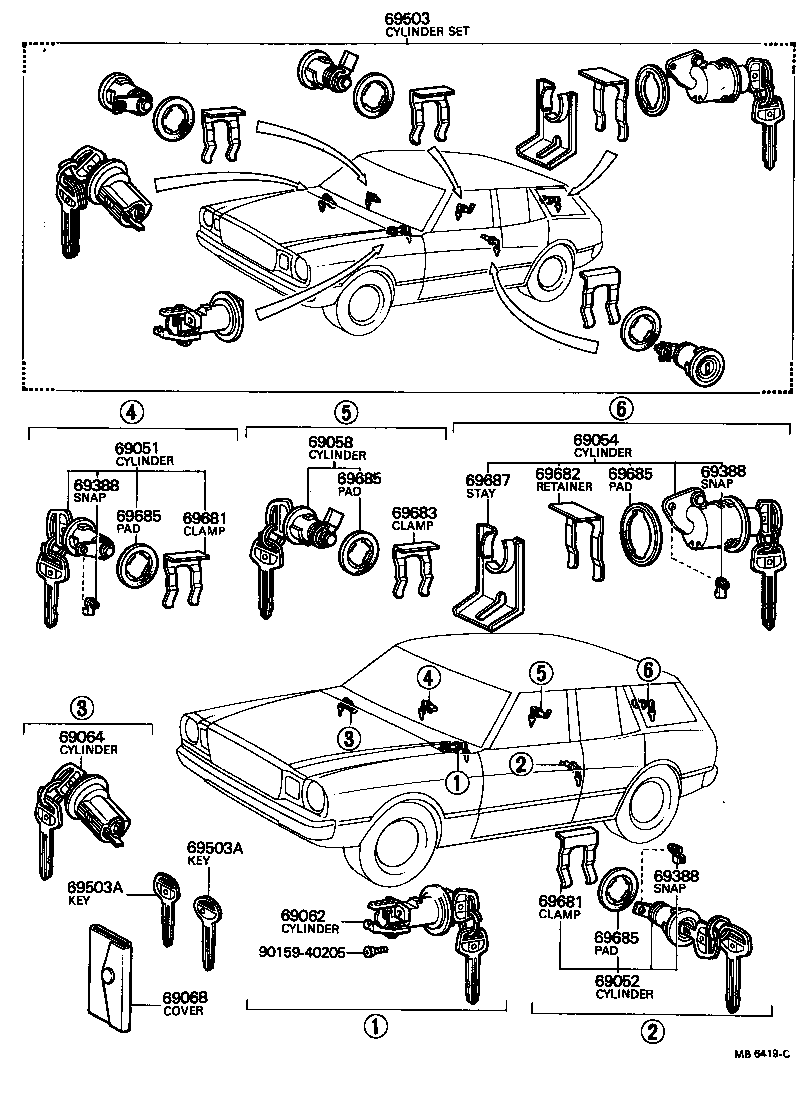

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69062 69064 69068 69388 69388 69388 69503 69503A 69503A 69681 69681 69682 69683 69685 69685 69685 69685 69687 9015940205
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-29235

MX36,RX35

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-29235

MX36,RX35

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-29055

MX36,RX35

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-29035

MX36,RX35

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-21020

MX36,RX35..DLX

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-91600

MX36,RX35

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

MX3#,RX3#,TX30

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

MX3#,RX3#

FOR FRONT DOOR

 2
69768-21010

MX36,RX35

FOR BACK DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

MX3#,RX3#

FOR FRONT DOOR

 2
69768-21010

MX36,RX35

FOR BACK DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

MX3#,RX3#

FOR FRONT DOOR

 2
69768-21010

MX36,RX35

FOR BACK DOOR

 1
69503 - CYLINDER SET, LOCK
69005-29245

MX36,RX35..DLX

 1
69503A - KEY, BLANK
90999-00071

MX36,RX35

SUB KEY,FOR SUB KEY

 1
90999-00067

MX36,RX35

MASTER KEY,FOR MASTER KEY

 3
69503A - KEY, BLANK
90999-00071

MX36,RX35

SUB KEY,FOR SUB KEY

 1
90999-00067

MX36,RX35

MASTER KEY,FOR MASTER KEY

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

MX3#,RX3#,TX30

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

MX3#,RX3#,TX30

 2
69682 - RETAINER, LOCK CYLINDER
69561-91600

MX36,RX35

 1
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20040

MX3#,RX3#

 1
69685 - PAD, LOCK CYLINDER
69553-13020

MX36,RX35

FOR BACK DOOR LOCK

 1
69685-12010

MX3#,RX3#

 3
69685 - PAD, LOCK CYLINDER
69553-13020

MX36,RX35

FOR BACK DOOR LOCK

 1
69685-12010

MX3#,RX3#

 3
69685 - PAD, LOCK CYLINDER
69553-13020

MX36,RX35

FOR BACK DOOR LOCK

 1
69685-12010

MX3#,RX3#

 3
69685 - PAD, LOCK CYLINDER
69553-13020

MX36,RX35

FOR BACK DOOR LOCK

 1
69685-12010

MX3#,RX3#

 3
69687 - STAY, BACK DOOR LOCK CYLINDER
69687-91600

MX36,RX35

 1
Common parts
90159-40205

(7612-7808)MX36,RX35

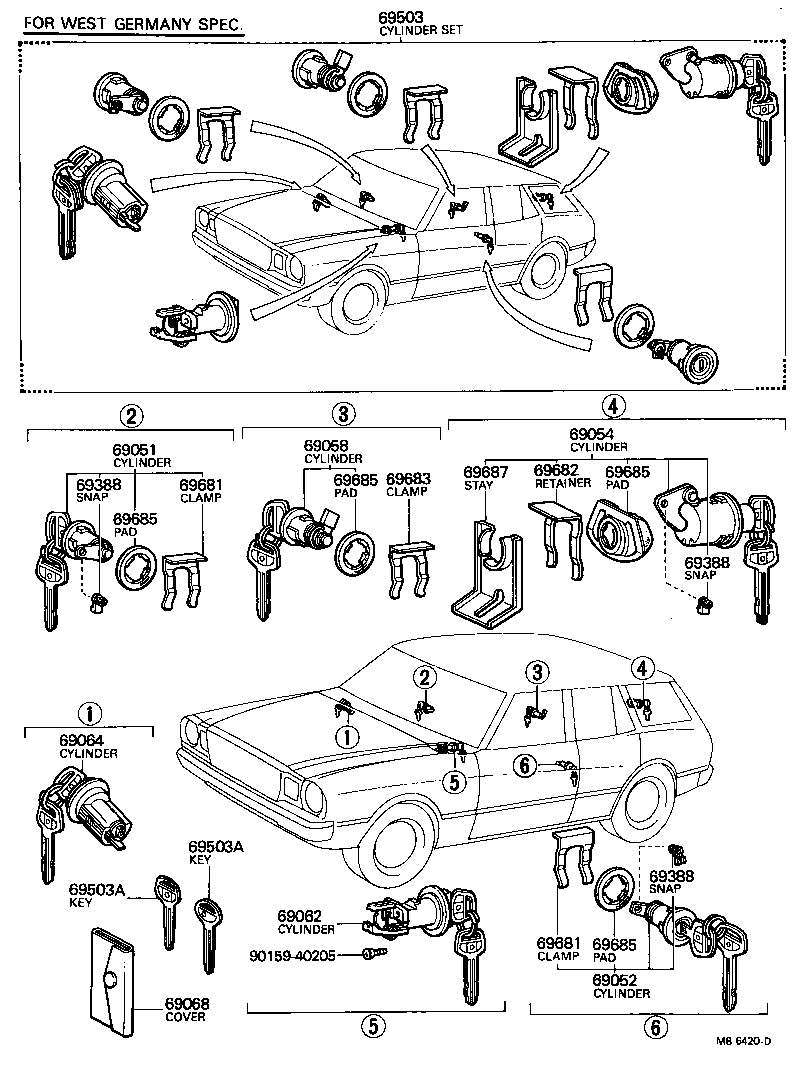

Click highlighted areas on diagram

diagram 69051 69052 69054 69058 69062 69064 69068 69388 69388 69388 69503 69503A 69503A 69681 69681 69682 69683 69685 69685 69685 69685 69687 9015940205
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-29235

MX36,RX35

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-29235

MX36,RX35

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-29055

MX36,RX35

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-29035

MX36,RX35

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-21020

MX36,RX35..DLX

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-91600

MX36,RX35

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

MX3#,RX3#,TX30

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

MX3#,RX3#

FOR FRONT DOOR

 2
69768-21010

MX36,RX35

FOR BACK DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

MX3#,RX3#

FOR FRONT DOOR

 2
69768-21010

MX36,RX35

FOR BACK DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69377-30020

MX3#,RX3#

FOR FRONT DOOR

 2
69768-21010

MX36,RX35

FOR BACK DOOR

 1
69503 - CYLINDER SET, LOCK
69005-29245

MX36,RX35..DLX

 1
69503A - KEY, BLANK
90999-00071

MX36,RX35

SUB KEY,FOR SUB KEY

 1
90999-00067

MX36,RX35

MASTER KEY,FOR MASTER KEY

 3
69503A - KEY, BLANK
90999-00071

MX36,RX35

SUB KEY,FOR SUB KEY

 1
90999-00067

MX36,RX35

MASTER KEY,FOR MASTER KEY

 3
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

MX3#,RX3#,TX30

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

MX3#,RX3#,TX30

 2
69682 - RETAINER, LOCK CYLINDER
69561-91600

MX36,RX35

 1
69683 - CLAMP, FUEL LOCK CYLINDER
69681-20040

MX3#,RX3#

 1
69685 - PAD, LOCK CYLINDER
69553-13020

MX36,RX35

FOR BACK DOOR LOCK

 1
69685-12010

MX3#,RX3#

 3
69685 - PAD, LOCK CYLINDER
69553-13020

MX36,RX35

FOR BACK DOOR LOCK

 1
69685-12010

MX3#,RX3#

 3
69685 - PAD, LOCK CYLINDER
69553-13020

MX36,RX35

FOR BACK DOOR LOCK

 1
69685-12010

MX3#,RX3#

 3
69685 - PAD, LOCK CYLINDER
69553-13020

MX36,RX35

FOR BACK DOOR LOCK

 1
69685-12010

MX3#,RX3#

 3
69687 - STAY, BACK DOOR LOCK CYLINDER
69687-91600

MX36,RX35

 1
Common parts
90159-40205
