RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX36,RX35

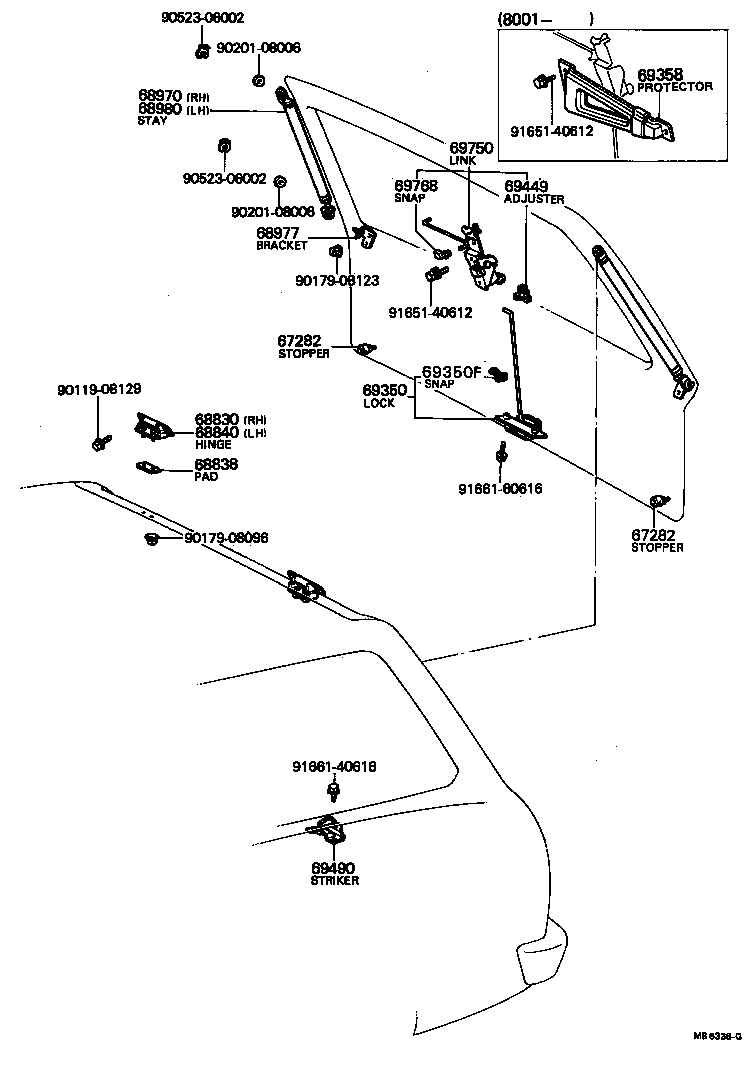

Click highlighted areas on diagram

diagram 67282 67282 68830 68838 68840 68970 68977 68980 69350 69350F 69358 69449 69490 69750 69768 9011908129 9017908096 9017908123 9020108006 9020108006 9052306002 9052306002 9165140612 9165140612 9166140616 9166160616
Part # Description Qty Price
67282 - STOPPER, BACK DOOR, NO.1
67281-91605

MX36,RX35

 2
67282 - STOPPER, BACK DOOR, NO.1
67281-91605

MX36,RX35

 2
68830 - HINGE ASSY, BACK DOOR, RH
68810-91604

MX36,RX35

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-91600

MX36,RX35

 2
68840 - HINGE ASSY, BACK DOOR, LH
68810-91604

MX36,RX35

 1
68970 - STAY ASSY, BACK DOOR, RH
68950-91601

RX35..EUR,GEN

W/REAR WIPER

 1
68977 - BRACKET, BACK DOOR STAY
68976-91600

MX36,RX35

FOR LH.

 1
68975-91600

MX36,RX35

FOR RH.

 1
68980 - STAY ASSY, BACK DOOR
68960-91601

RX35..EUR,GEN

W/REAR WIPER

 1
69350 - LOCK ASSY, BACK DOOR
69350-91606

MX36,RX35

 1
69350F - SNAP, DOOR LOCK CONTROL ROD
69768-91600

MX36,RX35

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-91600

MX36,RX35

 1
Common parts
90119-08129
90179-08096
90179-08123
90201-08006
90523-06002
91651-40612
91661-40616
91661-60616
