RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX36,RX35

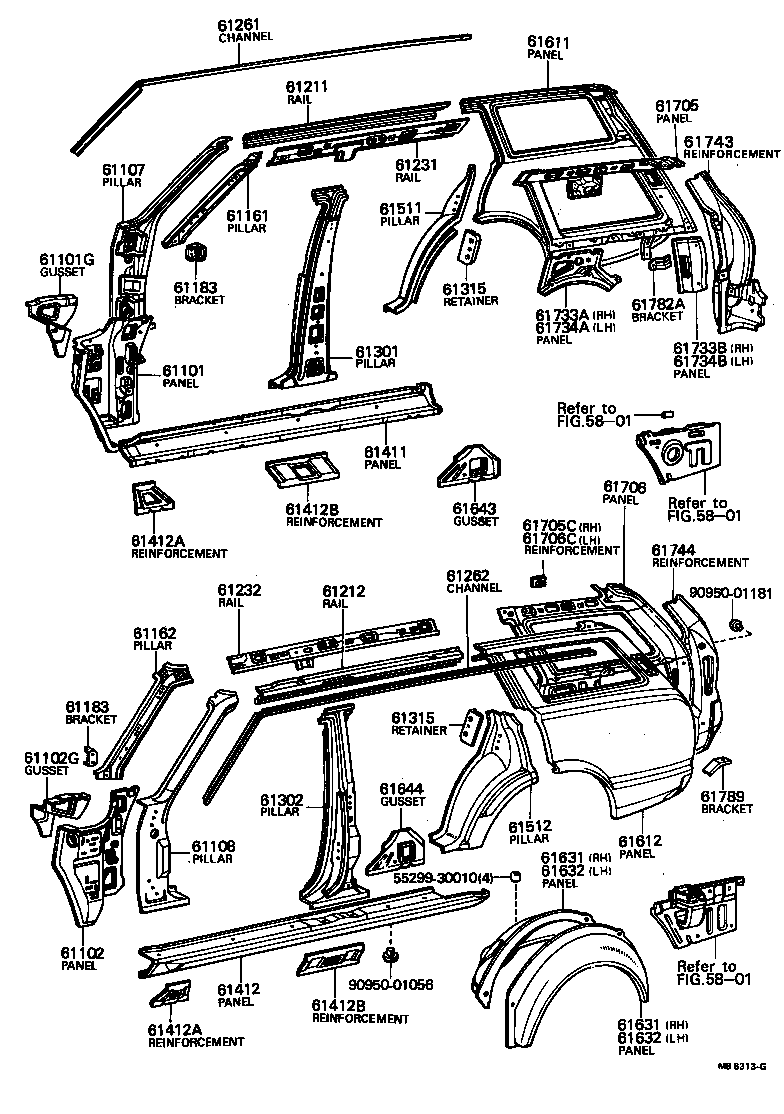

Click highlighted areas on diagram

diagram 5529930010 5801 5801 5801 61101 61101G 61102 61102G 61107 61108 61161 61162 61183 61183 61211 61212 61231 61232 61261 61262 61301 61302 61315 61315 61411 61412 61412A 61412A 61412B 61412B 61511 61512 61611 61612 61631 61631 61632 61632 61643 61644 61705 61705C 61706 61706C 61733A 61733B 61734A 61734B 61743 61744 61782A 61789 9095001056 9095001181
Part # Description Qty Price
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-22901

RX3#..LHD

 1
61101G - GUSSET, FRONT BODY PILLAR, LOWER RH
61145-22010

MX3#,RX3#

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-22901

RX3#..LHD

 1
61102G - GUSSET, FRONT BODY PILLAR, LOWER LH
61146-22010

MX3#,RX3#

 1
61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61027-22020

MX3#,RX3#,TX30..SED,WG

 1
61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61028-22010

MX3#,RX3#,TX30..SED,WG

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-22030

MX3#,RX3#,TX30..SED,WG

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-22040

MX3#,RX3#,TX30..SED,WG

 1
61183 - BRACKET, INSTRUMENT PANEL SIDE
61183-22010

MX3#,RX3#,TX30

 2
61183 - BRACKET, INSTRUMENT PANEL SIDE
61183-22010

MX3#,RX3#,TX30

 2
61211 - RAIL, ROOF SIDE, OUTER RH
61211-91605

MX36,RX35

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-91605

MX36,RX35

 1
61231 - RAIL, ROOF SIDE, INNER RH
61203-91605

MX36,RX35

 1
61232 - RAIL, ROOF SIDE, INNER LH
61204-91604

MX36,RX35

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-91605

MX36,RX35

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-91605

MX36,RX35

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-22110

RX3#..SED,WG

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-22130

RX3#..SED,WG

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61505-22020

MX36,RX35

 2
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61505-22020

MX36,RX35

 2
61411 - PANEL, ROCKER, OUTER RH
61411-22060

MX3#,RX3#..SED,WG

 1
61412 - PANEL, ROCKER, OUTER LH
61412-22060

MX3#,RX3#..SED,WG

 1
61412A - REINFORCEMENT, ROCKER PANEL, NO.1 LH
61418-22010

MX3#,RX3#,TX30

 2
61412A - REINFORCEMENT, ROCKER PANEL, NO.1 LH
61418-22010

MX3#,RX3#,TX30

 2
61412B - REINFORCEMENT, ROCKER PANEL, NO.2
61414-22010

MX3#,RX3#,TX30..SED,WG

 2
61412B - REINFORCEMENT, ROCKER PANEL, NO.2
61414-22010

MX3#,RX3#,TX30..SED,WG

 2
61511 - PILLAR, QUARTER LOCK, RH
61511-22050

MX3#,RX3#..SED,WG

 1
61512 - PILLAR, QUARTER LOCK, LH
61512-22060

MX3#,RX3#..SED,WG

 1
61611 - PANEL, QUARTER, RH
61601-22901

MX36,RX35

 1
61612 - PANEL, QUARTER, LH
61602-22901

MX36,RX35

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61631-91600

MX36,RX35

FOR OUTER

 1
61607-91601

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

FOR INNER

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61631-91600

MX36,RX35

FOR OUTER

 1
61607-91601

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

FOR INNER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61608-91603

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

FOR INNER

 1
61632-91600

MX36,RX35

FOR OUTER

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61608-91603

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

FOR INNER

 1
61632-91600

MX36,RX35

FOR OUTER

 1
61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61641-22010

MX3#,RX3#,TX30..SED,WG

 1
61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61642-22010

MX3#,RX3#,TX30..SED,WG

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-22900

MX36,RX35

 1
61705C - REINFORCEMENT, SEAT BELT ANCHORAGE, REAR RH
61766-21010

RX35..EUR

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-22900

MX36,RX35

 1
61706C - REINFORCEMENT, SEAT BELT ANCHORAGE, REAR LH
61766-21010

RX35..EUR

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-91600

MX36,RX35

 1
61733B - PANEL, ROOF SIDE, INNER REAR RH
61735-91600

MX36,RX35

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-91600

MX36,RX35

 1
61734B - PANEL, ROOF SIDE, INNER REAR LH
61736-91600

MX36,RX35

 1
61743 - REINFORCEMENT, BACK DOOR OPENING, INNER RH
61033-91600

MX36,RX35

 1
61744 - REINFORCEMENT, BACK DOOR OPENING, INNER LH
61034-91600

MX36,RX35

 1
61782A - BRACKET,FUEL EVAPORATIVE SEPARATOR, REAR
61782-91600

MX36,RX35

 1
61789 - BRACKET, REAR BUMPER SIDE
61786-91600

MX36,RX35

FOR RH.

 1
61787-91600

MX36,RX35

FOR LH.

 1
Common parts
55299-30010
90950-01056
90950-01181
Linked diagrams
5801
