RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)3FC..STD ; (7612-8008)3FC,4F,5F..DLX,GL,SDX

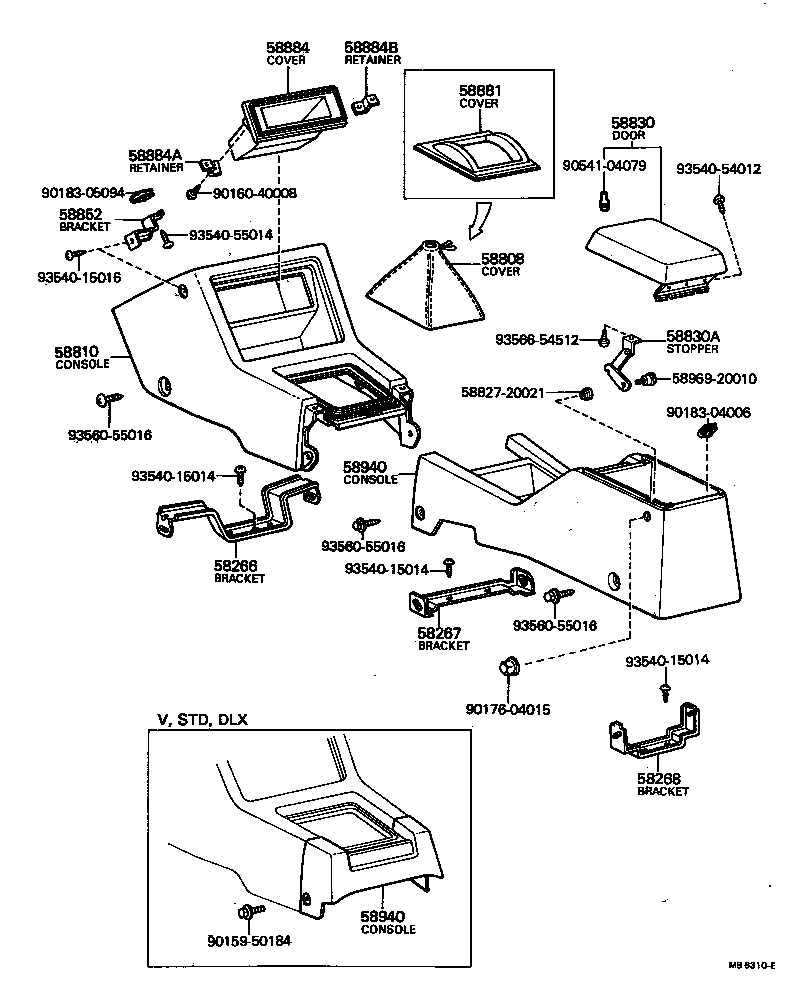

Click highlighted areas on diagram

diagram 58266 58267 58268 58808 58810 5882720021 58830 58830A 58852 58881 58884 58884A 58884B 58940 58940 5896920010 9015950184 9016040008 9017604015 9018304006 9018305094 9054104079 9354015014 9354015014 9354015014 9354015016 9354054012 9354055014 9356055016 9356055016 9356055016 9356654512
Part # Description Qty Price
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58851-22040

RX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

 1
58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER
58852-22040

RX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

 1
58268 - BRACKET, CONSOLE BOX SUPPORT, REAR
58853-22020

MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)

 1
58810 - CONSOLE ASSY
58811-2210001

MX3#,RX3#..3FC

BLACK,BLACK,TRIM2#

 1
58811-2210005

MX3#,RX3#..3FC

BEIGE,BEIGE,TRIM4#

 1
58811-2210003

MX3#,RX3#..3FC

GRAY,GRAY,TRIM1#

 1
58830 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58804-2204101

MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

BLACK,BLACK,TRIM2#

 1
58804-2204103

MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)

GRAY,GRAY,TRIM1#

 1
58804-2204105

MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

BEIGE,BEIGE,TRIM4#

 1
58830A - STOPPER,CONSOLE COMPARTMENT DOOR
58904-22020

MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

 1
58852 - BRACKET, CONSOLE SUPPORT, UPPER LH
58859-22020

RX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

 1
58881 - COVER, SHIFTING HOLE
58881-2204013

MX3#,RX3#..3FC

SILVER M.,GRAY,TRIM4#

 1
58881-2204003

MX3#,RX3#..3FC

GRAY M.,GRAY,TRIM1#,2#

 1
58884 - COVER, STEREO OPENING
55462-20070

RX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

 1
58884A - RETAINER, STEREO OPENING, NO.1
55475-20040

RX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

 1
58884B - RETAINER, STEREO OPENING, NO.2
55394-20010

RX30,TX30..3FC..STD;MX3#,RX3#..(3FC,4F,5F)..(DLX,GL,SDX)

 1
58940 - CONSOLE ASSY, REAR
58905-2201001

MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)

BLACK,BLACK,TRIM2#

 1
58905-2201003

MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)

GRAY,GRAY,TRIM1#

 1
58905-2201005

MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)

BEIGE,BEIGE,TRIM4#

 1
58940 - CONSOLE ASSY, REAR
58905-2201001

MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)

BLACK,BLACK,TRIM2#

 1
58905-2201003

MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)

GRAY,GRAY,TRIM1#

 1
58905-2201005

MX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)

BEIGE,BEIGE,TRIM4#

 1
Common parts
58827-20021
58969-20010
90159-50184
90160-40008
90176-04015
90183-04006
90183-05094
90541-04079
93540-15014
93540-15016
93540-54012
93540-55014
93560-55016
93566-54512
