RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7911)

Click highlighted areas on diagram

diagram 58101 58286 58288 58288 9095001060 9095001060 9095001060 9095001060 9095001061 9095001061 9165540620
Part # Description Qty Price
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-22201

RX3#..3FC,4F,5F

 1
58101-91601

RX3#..3FC,4F,5F

 1
Common parts
90950-01060
90950-01061
91655-40620

(7612-8008)MX36,RX35

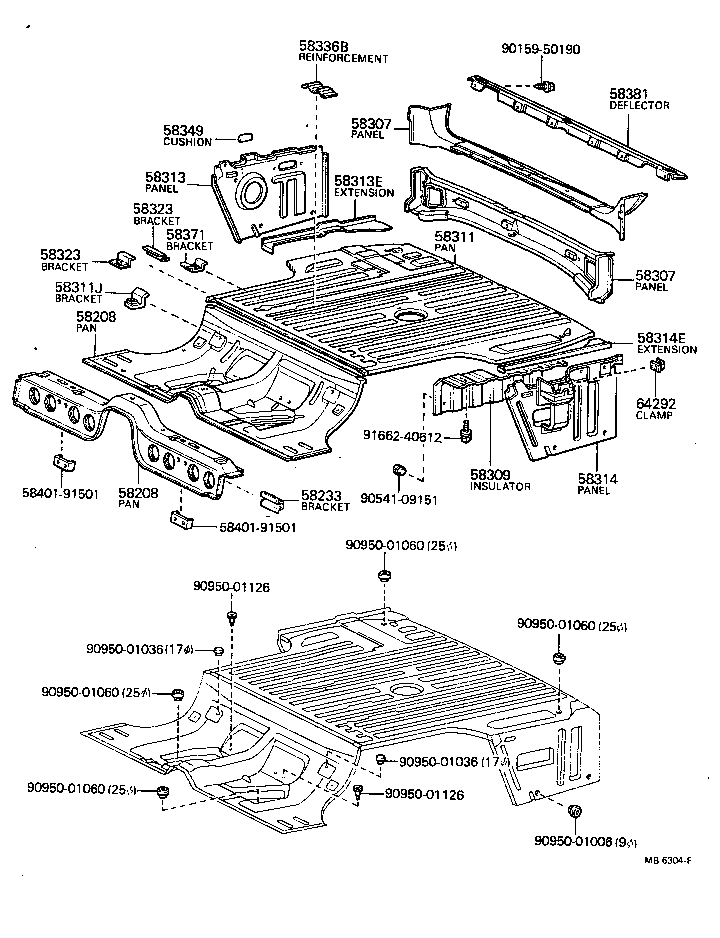

Click highlighted areas on diagram

diagram 58208 58208 58233 58307 58307 58309 58311 58311J 58313 58313E 58314 58314E 58323 58323 58336B 58349 58371 58381 5840191501 5840191501 64292 9015950190 9054109151 9095001006 9095001036 9095001036 9095001060 9095001060 9095001060 9095001060 9095001126 9095001126 9166240612
Part # Description Qty Price
58208 - PAN, CENTER FLOOR
58211-22900

MX36,RX35

FOR REAR

 1
58212-22040

MX3#,RX3#,TX30

FOR FRONT

 1
58208 - PAN, CENTER FLOOR
58211-22900

MX36,RX35

FOR REAR

 1
58212-22040

MX3#,RX3#,TX30

FOR FRONT

 1
58233 - BRACKET, EXHAUST PIPE MOUNTING
58233-22010

MX3#,RX3#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-91609

MX36,RX35

FOR UPPER

 1
58308-91600

MX36,RX35

FOR LOWER

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-91609

MX36,RX35

FOR UPPER

 1
58308-91600

MX36,RX35

FOR LOWER

 1
58309 - INSULATOR SUB-ASSY, FUEL TANK
58368-21010

RX35

 1
58311 - PAN, REAR FLOOR
58311-22900

MX36,RX35

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-91604

MX36,RX35

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58303-91604

MX36,RX35

 1
58323 - BRACKET SUB-ASSY, INLET TUBE PROTECTOR
58321-91601

RX35

FOR FRONT

 1
57245-21010

RX35

FOR REAR

 1
58323 - BRACKET SUB-ASSY, INLET TUBE PROTECTOR
58321-91601

RX35

FOR FRONT

 1
57245-21010

RX35

FOR REAR

 1
58349 - CUSHION, REAR FLOOR SIDE
58349-91600

MX36,RX35

 1
58381 - DEFLECTOR, REAR BUMPER STONE
59211-91600

MX36,RX35

 1
64292 - CLAMP, JACK HANDLE
58788-13010

MX36,RX35

 2
Common parts
58401-91501
90159-50190
90541-09151
90950-01006
90950-01036
90950-01060
90950-01126
91662-40612
