RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX36,RX35

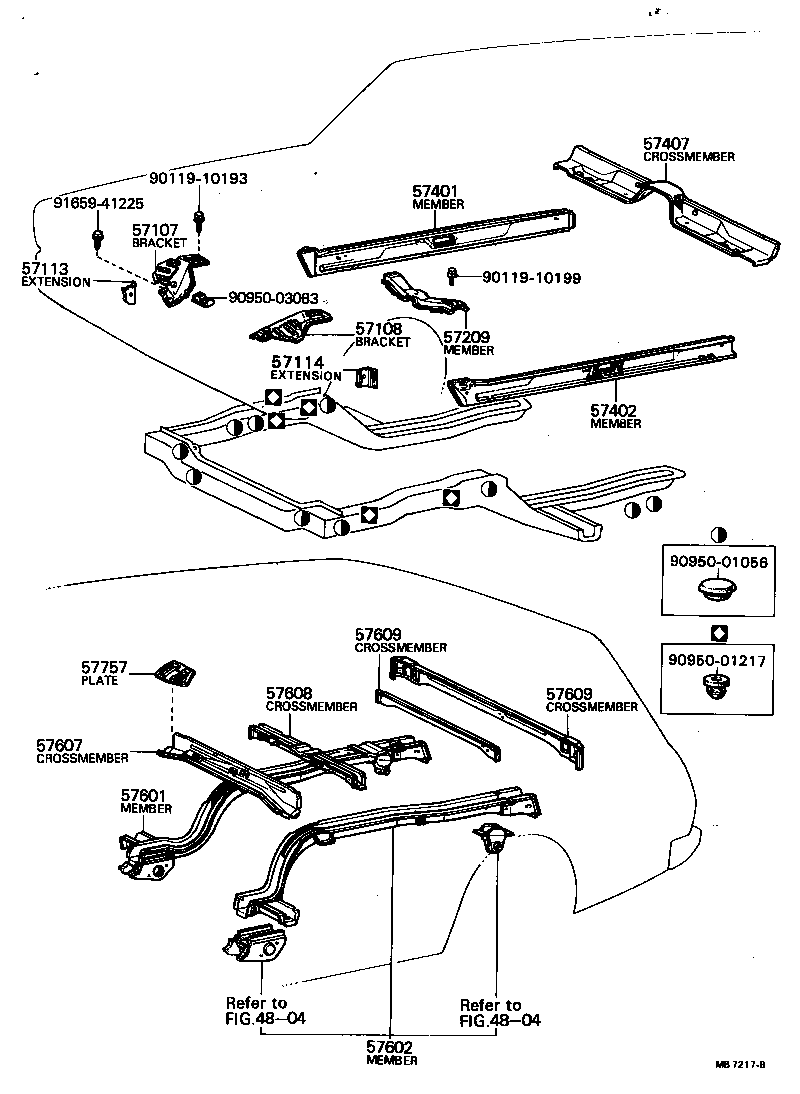

Click highlighted areas on diagram

diagram 4804 4804 57107 57108 57113 57114 57209 57401 57402 57407 57601 57602 57607 57608 57609 57609 57757 9011910193 9011910199 9095001056 9095001217 9095003083 9165941225
Part # Description Qty Price
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22020

MX3#,RX3#,TX30

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22080

MX3#,RX3#,TX30

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22030

MX3#,RX3#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22030

MX3#,RX3#

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-22092

MX3#,RX3#

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57406-22010

MX3#,RX3#..SED,WG

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57409-22010

MX3#,RX3#..SED,WG

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-22010

MX3#,RX3#,TX30

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-91612

MX36,RX35

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-91612

MX36,RX35

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57653-91606

MX36,RX35

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57607-91605

MX36,RX35

 1
57609 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.3
57607-91603

MX36,RX35

FOR FRONT

 1
57068-91600

MX36,RX35

FOR REAR

 1
57609 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.3
57607-91603

MX36,RX35

FOR FRONT

 1
57068-91600

MX36,RX35

FOR REAR

 1
57757 - PLATE, REAR FLOOR CROSSMEMBER
57757-91600

MX36,RX35

FOR RH.

 1
57758-91603

MX36,RX35

FOR LH.

 1
Common parts
90119-10193
90119-10199
90950-01056
90950-01217
90950-03083
91659-41225
Linked diagrams
4804
