RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)MX36,RX35

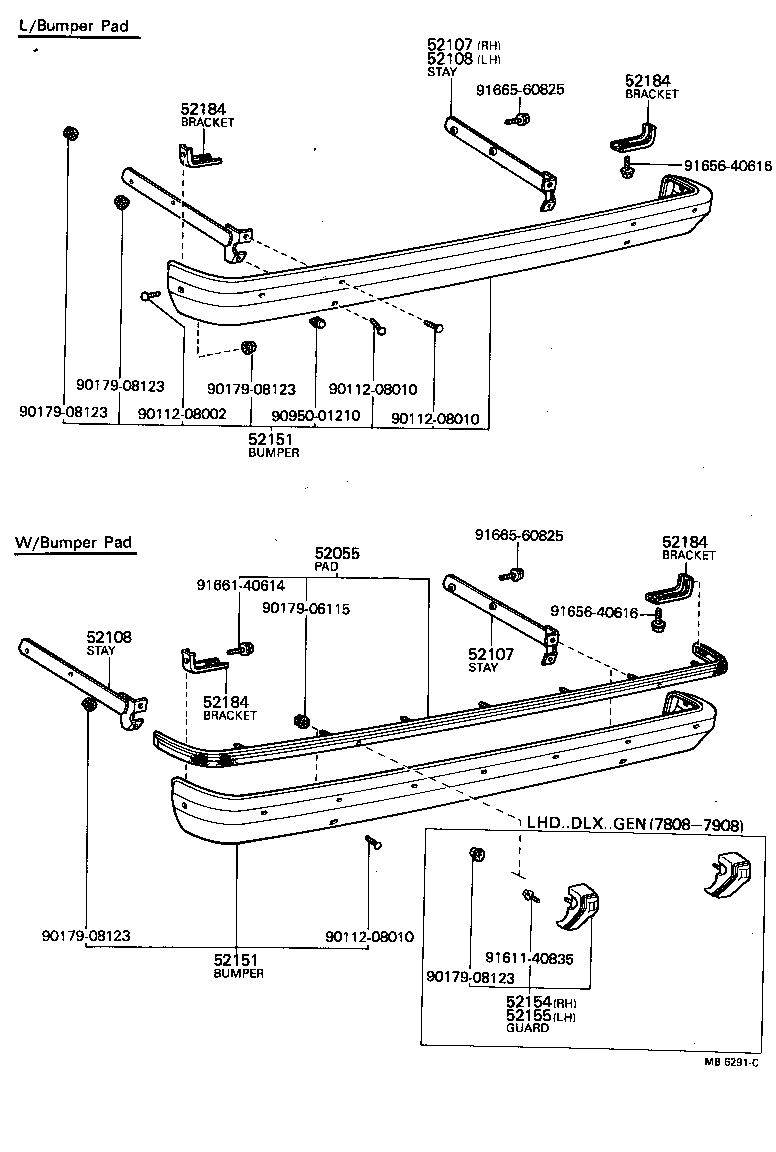

Click highlighted areas on diagram

diagram 52055 52107 52107 52108 52108 52151 52151 52154 52155 52184 52184 52184 52184 9011208002 9011208010 9011208010 9011208010 9017906115 9017908123 9017908123 9017908123 9017908123 9017908123 9095001210 9161140835 9165640616 9165640616 9166140614 9166560825 9166560825
Part # Description Qty Price
52055 - PAD SUB-ASSY, REAR BUMPER
52055-29025

RX30..5F..DLX..SA;MX3#,RX35..DLX,SDX;RX30..5F..(EUR,GEN);RX30..(3FC,3H,4F)..(DLX,GL)

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-91600

MX36,RX35

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-91600

MX36,RX35

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-91600

MX36,RX35

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-91600

MX36,RX35

 1
52151 - BUMPER ASSY, REAR
52151-29295

MX36,RX35..DLX;RX35..LHD..4F..STD..EUG

W/BUMPER PAD

 1
52151 - BUMPER ASSY, REAR
52151-29295

MX36,RX35..DLX;RX35..LHD..4F..STD..EUG

W/BUMPER PAD

 1
52184 - BRACKET, REAR BUMPER SIDE MOUNTING
52185-91600

MX36,RX35

FOR RH.

 1
52186-91600

MX36,RX35

FOR LH.

 1
52184 - BRACKET, REAR BUMPER SIDE MOUNTING
52185-91600

MX36,RX35

FOR RH.

 1
52186-91600

MX36,RX35

FOR LH.

 1
52184 - BRACKET, REAR BUMPER SIDE MOUNTING
52185-91600

MX36,RX35

FOR RH.

 1
52186-91600

MX36,RX35

FOR LH.

 1
52184 - BRACKET, REAR BUMPER SIDE MOUNTING
52185-91600

MX36,RX35

FOR RH.

 1
52186-91600

MX36,RX35

FOR LH.

 1
Common parts
90112-08002
90112-08010
90179-06115
90179-08123
90950-01210
91611-40835
91656-40616
91661-40614
91665-60825
