RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

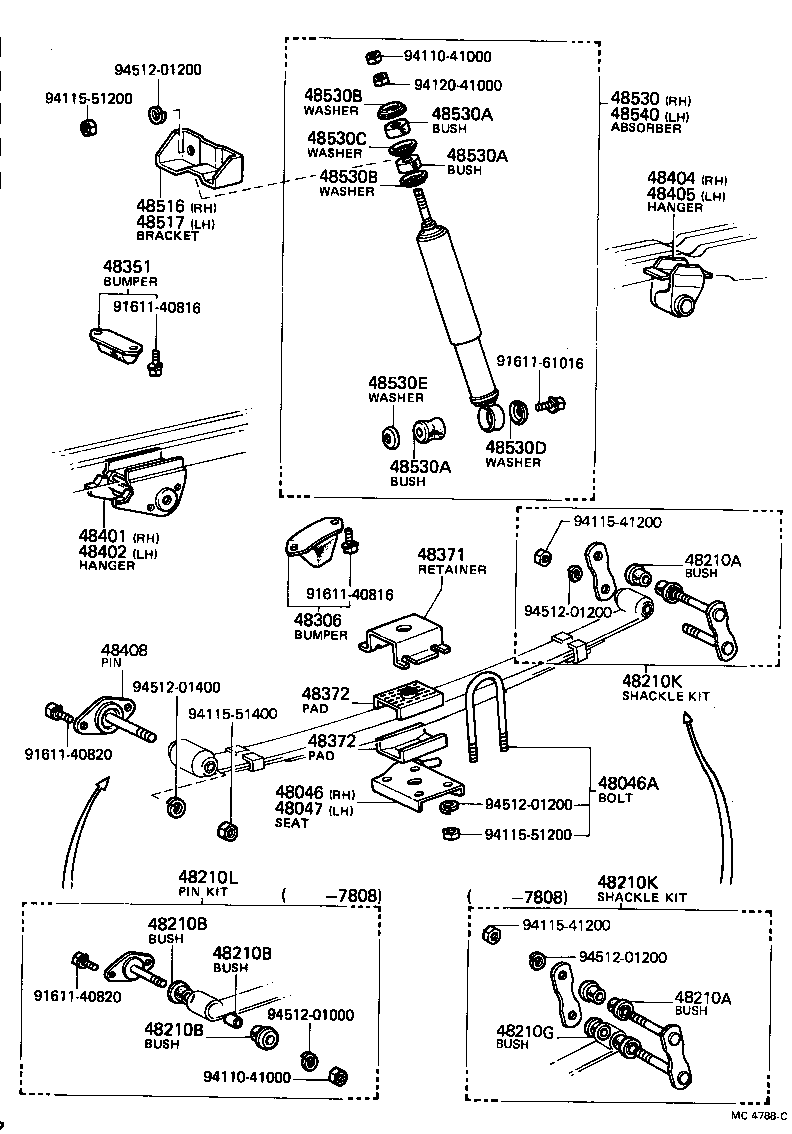

(7612-8008)MX36,RX35

Click highlighted areas on diagram

diagram 48046 48046A 48047 48210A 48210A 48210B 48210B 48210B 48210G 48210K 48210K 48210L 48306 48351 48371 48372 48372 48401 48402 48404 48405 48408 48516 48517 48530 48530A 48530A 48530A 48530B 48530B 48530C 48530D 48530E 48540 9161140816 9161140816 9161140820 9161140820 9161161016 9411041000 9411041000 9411541200 9411541200 9411551200 9411551200 9411551400 9412041000 9451201000 9451201200 9451201200 9451201200 9451201200 9451201400
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-23040

MX36,RX35

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-12117

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-23030

MX36,RX35

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15070

MX36,RX35

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15070

MX36,RX35

 4
48210B - BUSH(FOR REAR SPRING PIN)
90389-13004

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

OD=39,H=20

 2
90385-13001

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

OD=55,H=26

 4
48210B - BUSH(FOR REAR SPRING PIN)
90389-13004

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

OD=39,H=20

 2
90385-13001

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

OD=55,H=26

 4
48210B - BUSH(FOR REAR SPRING PIN)
90389-13004

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

OD=39,H=20

 2
90385-13001

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

OD=55,H=26

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-15070

MX36,RX35

 4
48210K - SHACKLE KIT, REAR SPRING
04483-21010

MX36,RX35

 2
48210K - SHACKLE KIT, REAR SPRING
04483-21010

MX36,RX35

 2
48210L - PIN KIT, REAR SPRING
04484-22030

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-29015

MX36,RX35

 2
48351 - BUMPER, DIFFERENTIAL CARRIER
48351-29015

MX36,RX35

 1
48371 - RETAINER, REAR SPRING PAD
48371-23080

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 2
48372 - PAD, REAR SPRING
48372-23030

MX36,RX35

 4
48372 - PAD, REAR SPRING
48372-23030

MX36,RX35

 4
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
57707-21010

MX36,RX35

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
57708-21010

MX36,RX35

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
57701-91606

MX36,RX35

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
57701-91606

MX36,RX35

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-23010

MX36,RX35

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48517-23010

MX36,RX35

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-29455

RX35

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003

MX3#,RX3#

ABSORBER X BODY

 4
90385-16060

MX3#,RX3#,TX30

ABSORBER X REAR AXLE HOUSING

 2
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003

MX3#,RX3#

ABSORBER X BODY

 4
90385-16060

MX3#,RX3#,TX30

ABSORBER X REAR AXLE HOUSING

 2
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003

MX3#,RX3#

ABSORBER X BODY

 4
90385-16060

MX3#,RX3#,TX30

ABSORBER X REAR AXLE HOUSING

 2
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002

MX3#,RX3#,TX30

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002

MX3#,RX3#,TX30

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02007

MX3#,RX3#,TX30

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

MX3#,RX3#,TX30

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

MX3#,RX3#,TX30

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-29455

RX35

 1
Common parts
91611-40816
91611-40820
91611-61016
94110-41000
94115-41200
94115-51200
94115-51400
94120-41000
94512-01000
94512-01200
94512-01400

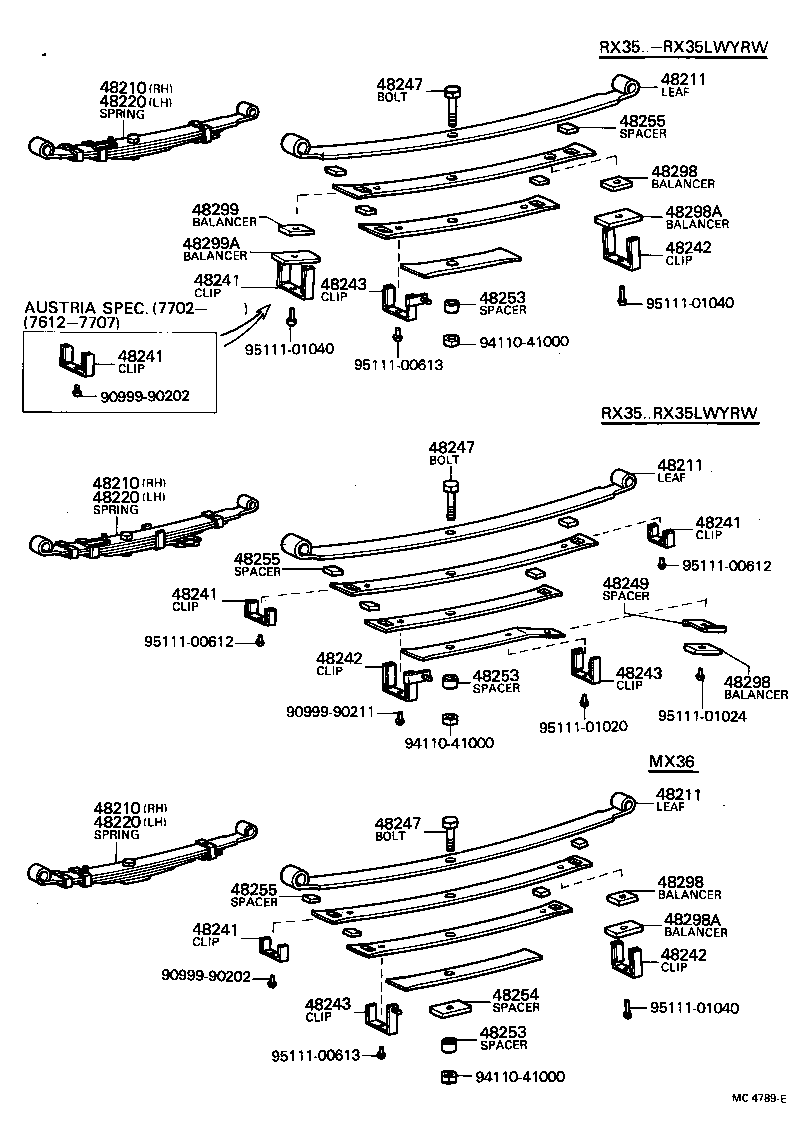

(7612-8008)MX36,RX35

Click highlighted areas on diagram

diagram 48210 48210 48210 48211 48211 48211 48220 48220 48220 48241 48241 48241 48241 48241 48242 48242 48242 48243 48243 48243 48247 48247 48247 48249 48253 48253 48253 48254 48255 48255 48255 48298 48298 48298 48298A 48298A 48299 48299A 9099990202 9099990202 9099990211 9411041000 9411041000 9411041000 9511100612 9511100612 9511100613 9511100613 9511101020 9511101024 9511101040 9511101040 9511101040
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48210-23120

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48210 - SPRING ASSY, REAR RH
48210-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48210-23120

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48210 - SPRING ASSY, REAR RH
48210-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48210-23120

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48211 - LEAF, REAR SPRING, NO.1
48211-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48211 - LEAF, REAR SPRING, NO.1
48211-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48211 - LEAF, REAR SPRING, NO.1
48211-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48220 - SPRING ASSY, REAR LH
48210-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48210-23120

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48220 - SPRING ASSY, REAR LH
48210-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48210-23120

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48220 - SPRING ASSY, REAR LH
48210-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48210-23120

RX35..3H..GEN;RX35..3FC,4F,5F

 1
48241 - CLIP, REAR SPRING, NO.1
48241-30041

MX36,RX35

 2
48241 - CLIP, REAR SPRING, NO.1
48241-30041

MX36,RX35

 2
48241 - CLIP, REAR SPRING, NO.1
48241-30041

MX36,RX35

 2
48241 - CLIP, REAR SPRING, NO.1
48241-30041

MX36,RX35

 2
48241 - CLIP, REAR SPRING, NO.1
48241-30041

MX36,RX35

 2
48242 - CLIP, REAR SPRING, NO.2
48241-23080

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 2
48242 - CLIP, REAR SPRING, NO.2
48241-23080

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 2
48242 - CLIP, REAR SPRING, NO.2
48241-23080

RX35..3H..GEN;MX36,RX35..3FC,4F,5F

 2
48243 - CLIP, REAR SPRING, NO.3
48241-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48243 - CLIP, REAR SPRING, NO.3
48241-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48243 - CLIP, REAR SPRING, NO.3
48241-23140

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48247 - BOLT, REAR SPRING, CENTER
48247-23050

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48247 - BOLT, REAR SPRING, CENTER
48247-23050

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48247 - BOLT, REAR SPRING, CENTER
48247-23050

RX35..3H..GEN;RX35..3FC,4F,5F

 2
48253 - SPACER, REAR SPRING, NO.1
48254-21100

MX36,RX35

 2
48253 - SPACER, REAR SPRING, NO.1
48254-21100

MX36,RX35

 2
48253 - SPACER, REAR SPRING, NO.1
48254-21100

MX36,RX35

 2
48255 - SPACER, REAR SPRING LEAF
48253-23030

MX36,RX35

 8
48255 - SPACER, REAR SPRING LEAF
48253-23030

MX36,RX35

 8
48255 - SPACER, REAR SPRING LEAF
48253-23030

MX36,RX35

 8
48298 - BALANCER, REAR SPRING, NO.1
48298-23080

MX36,RX35

 2
48298 - BALANCER, REAR SPRING, NO.1
48298-23080

MX36,RX35

 2
48298 - BALANCER, REAR SPRING, NO.1
48298-23080

MX36,RX35

 2
48298A - BALANCER, REAR SPRING, NO.2
48299-23080

MX36,RX35

 2
48298A - BALANCER, REAR SPRING, NO.2
48299-23080

MX36,RX35

 2
Common parts
90999-90202
90999-90211
94110-41000
95111-00612
95111-00613
95111-01020
95111-01024
95111-01040
