RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)DLX,SDX,STD

Click highlighted areas on diagram

diagram 33621 45201 45201A 45201B 45201B 45201E 45205 45230 45253 45254 45255 45255A 45269 45275 45281 45281 45281E 45292 45807 9011908185 9016450048 9112170830 9161140816 9161160616 9165540618 9331514012 9331914008 9411040800 9411041000 9451200800 9451200800 9453101000 9461211001
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-22030

MX32,RX3#..EUR,GEN,SA

 1
45210-22030

MX3#,RX3#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

MX3#,RX3#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

MX3#,RX3#,TX30

T=1.20,T=1.2

 1
90520-17269

MX3#,RX3#,TX30

T=1.20,FOR STEERING WHEEL SIDE

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

MX3#,RX3#,TX30

T=1.20,T=1.2

 1
90520-17269

MX3#,RX3#,TX30

T=1.20,FOR STEERING WHEEL SIDE

 1
45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT)
90333-21008

MX3#,RX3#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-22080

MX3#,RX3#

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-14020

MX3#,RX3#,TX30

 1
45253 - COVER, STEERING COLUMN HOLE
45253-22914

RX3#..LHD..(3FC,4F,5F)

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-22030

MX3#,RX3#

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45255-12020

MX3#,RX3#,TX30

 1
45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)
90301-45202

MX3#,RX3#,TX30

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-35010

MX3#,RX3#

 1
45269-20010

MX3#,RX3#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-30180

RX3#..LHD

 1
45280-30181

RX3#..LHD

 1
45281 - HOUSING, STEERING COLUMN
45286-2219005

RX3#..LHD..(3FC,4F,5F)

BEIGE,UPPER,BEIGE,TRIM4#

 1
45286-2219001

RX3#..LHD..(3FC,4F,5F)

BLACK,UPPER,BLACK,TRIM2#

 1
45287-2212001

RX3#..LHD..(3FC,4F,5F)

BLACK,LOWER,BLACK,TRIM2#

 1
45286-2219003

RX3#..LHD..(3FC,4F,5F)

GRAY,UPPER,GRAY,TRIM1#

 1
45287-2212003

RX3#..LHD..(3FC,4F,5F)

GRAY,LOWER,GRAY,TRIM1#

 1
45287-2212005

RX3#..LHD..(3FC,4F,5F)

BEIGE,LOWER,BEIGE,TRIM4#

 1
45281 - HOUSING, STEERING COLUMN
45286-2219005

RX3#..LHD..(3FC,4F,5F)

BEIGE,UPPER,BEIGE,TRIM4#

 1
45286-2219001

RX3#..LHD..(3FC,4F,5F)

BLACK,UPPER,BLACK,TRIM2#

 1
45287-2212001

RX3#..LHD..(3FC,4F,5F)

BLACK,LOWER,BLACK,TRIM2#

 1
45286-2219003

RX3#..LHD..(3FC,4F,5F)

GRAY,UPPER,GRAY,TRIM1#

 1
45287-2212003

RX3#..LHD..(3FC,4F,5F)

GRAY,LOWER,GRAY,TRIM1#

 1
45287-2212005

RX3#..LHD..(3FC,4F,5F)

BEIGE,LOWER,BEIGE,TRIM4#

 1
45281E - PLATE, SAFETY CAUTION
45283-22020

RX3#..LHD

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-22050

MX3#,RX3#,TX30

 1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45807-22110

RX3#..LHD

 1
Common parts
90119-08185
90164-50048
91121-70830
91611-40816
91611-60616
91655-40618
93315-14012
93319-14008
94110-40800
94110-41000
94512-00800
94531-01000
94612-11001

(7612-7801) ; (7801-8008)EUR,GEN,SA

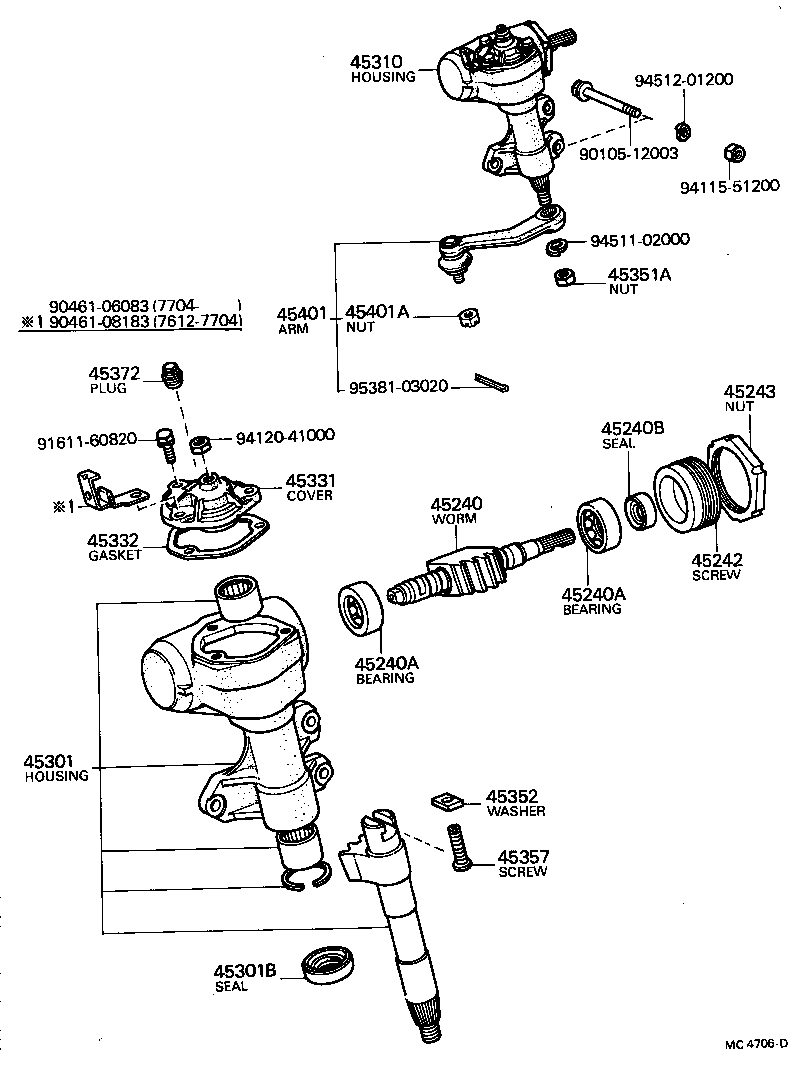

Click highlighted areas on diagram

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010512003 9046106083 9046108183 9161160820 9411551200 9412041000 9451102000 9451201200 9538103020
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-22080

RX3#..LHD

 1
45240A - BEARING(FOR STEERING WORM)
90369-43001

MX3#,RX3#

 2
45240A - BEARING(FOR STEERING WORM)
90369-43001

MX3#,RX3#

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-19001

MX3#,RX3#

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-22060

RX3#..LHD

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-22040

RX3#..LHD

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-22080

RX3#..LHD

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-28027

MX3#,RX3#

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-22100

RX3#..LHD

 1
45331 - COVER, SECTOR SHAFT END
45304-22040

RX3#..LHD

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-20060

RX3#..LHD

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-20147

MX3#,RX3#

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-20010

RX3#..LHD

T=2.00,T=2.00

 1
45353-20010

RX3#..LHD

T=1.95,T=1.95

 1
45356-20010

RX3#..LHD

T=2.15,T=2.15

 1
45355-20010

RX3#..LHD

T=2.10,T=2.10

 1
45354-20010

RX3#..LHD

T=2.05,T=2.05

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-30040

MX3#,RX3#

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03027

MX3#,RX3#

 1
45401 - ARM SUB-ASSY, PITMAN
45401-29145

RX3#..LHD

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-12028

MX3#,RX3#

 1
Common parts
90105-12003
90461-06083
90461-08183
91611-60820
94115-51200
94120-41000
94511-02000
94512-01200
95381-03020
