RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)RX3#..3FC

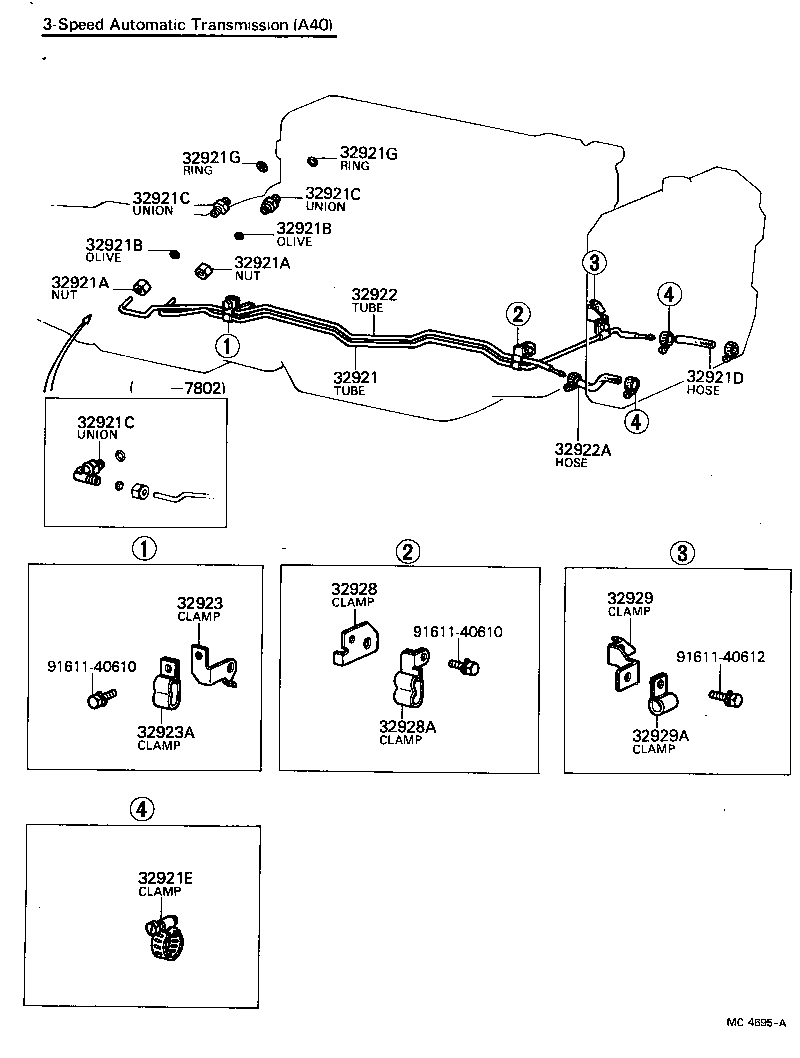

Click highlighted areas on diagram

diagram 32921 32921A 32921A 32921B 32921B 32921C 32921C 32921C 32921D 32921E 32921G 32921G 32922 32922A 32923 32923A 32928 32928A 32929 32929A 9161140610 9161140610 9161140612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22031

RX3#..3FC

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

MX3#,RX3#,TX30..3FC

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

MX3#,RX3#,TX30..3FC

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

MX3#,RX3#,TX30..3FC

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

MX3#,RX3#,TX30..3FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13265

MX3#,RX3#..3FC

FOR INLET

 1
90407-13060

MX3#,RX3#..3FC

FOR OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13265

MX3#,RX3#..3FC

FOR INLET

 1
90407-13060

MX3#,RX3#..3FC

FOR OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13265

MX3#,RX3#..3FC

FOR INLET

 1
90407-13060

MX3#,RX3#..3FC

FOR OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-14025

RX3#..3FC

L=360

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

MX3#,RX3#,TX30..3FC

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MX3#,RX3#,TX30..3FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MX3#,RX3#,TX30..3FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-20060

RX3#..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-14025

RX3#..3FC

L=360

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-20022

RX3#..3FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-08070

RX3#..3FC

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-20050

RX3#..3FC

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-08049

RX3#..3FC

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-20030

RX3#..3FC

 1
32929A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90461-06033

RX3#..3FC

 1
Common parts
91611-40610
91611-40612
