RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)3FC

Click highlighted areas on diagram

diagram 35520 35520 35520 35520A 35520A 35520B 35520B 35520B 35523 35523 35525 35525 35525 35527 9046106052 9046106966 9046400020 9046400065 9046808002 9046818107 9161140610 9161140814 9161140814 9161140816 9165140610 9454100500 9454100500
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-22030

RX3#..3FC

 1
35520-20050

RX3#..3FC..(EUR,GEN)

 1
35520 - CABLE ASSY, THROTTLE
35520-22030

RX3#..3FC

 1
35520-20050

RX3#..3FC..(EUR,GEN)

 1
35520 - CABLE ASSY, THROTTLE
35520-22030

RX3#..3FC

 1
35520-20050

RX3#..3FC..(EUR,GEN)

 1
35520A - PIN, THROTTLE CABLE
90240-05139

RX3#..3FC

 1
35520A - PIN, THROTTLE CABLE
90240-05139

RX3#..3FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

MX3#,RX3#,TX30..3FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

MX3#,RX3#,TX30..3FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

MX3#,RX3#,TX30..3FC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20050

RX3#..3FC..(EUR,GEN)

 1
35525-14020

RX3#..3FC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20050

RX3#..3FC..(EUR,GEN)

 1
35525-14020

RX3#..3FC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20050

RX3#..3FC..(EUR,GEN)

 1
35525-14020

RX3#..3FC

 1
Common parts
90461-06052
90461-06966
90464-00020
90464-00065
90468-08002
90468-18107
91611-40610
91611-40814
91611-40816
91651-40610
94541-00500

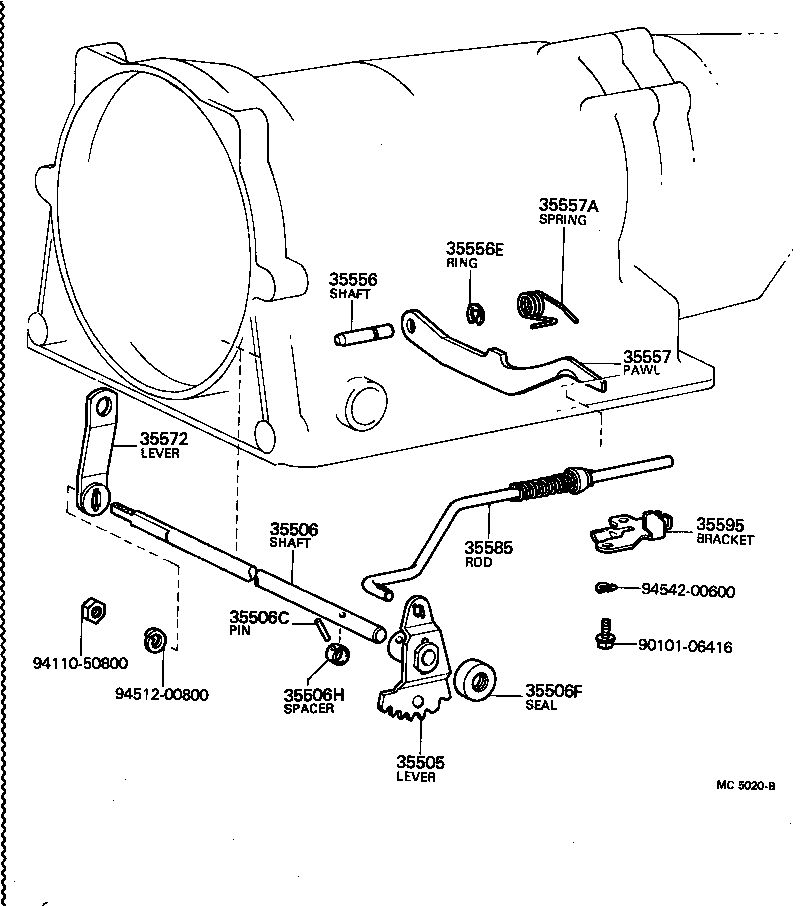

(7612-8008)3FC

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9411050800 9451200800 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22010

MX3#,RX3#,TX30..3FC

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-20021

MX3#,RX3#,TX30..3FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-03044

MX3#,RX3#..3FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

MX3#,RX3#,TX30..3FC

 2
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

MX3#,RX3#,TX30..3FC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

MX3#,RX3#,TX30..3FC

 1
35557 - PAWL, PARKING LOCK
35557-22010

MX3#,RX3#,TX30..3FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25329

MX3#,RX3#,TX30..3FC

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

MX3#,RX3#,TX30..3FC

 1
35585 - ROD, PARKING LOCK
35501-22010

MX3#,RX3#..3FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-22010

MX3#,RX3#..3FC

 1
Common parts
90101-06416
94110-50800
94512-00800
94542-00600
