RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)3FC

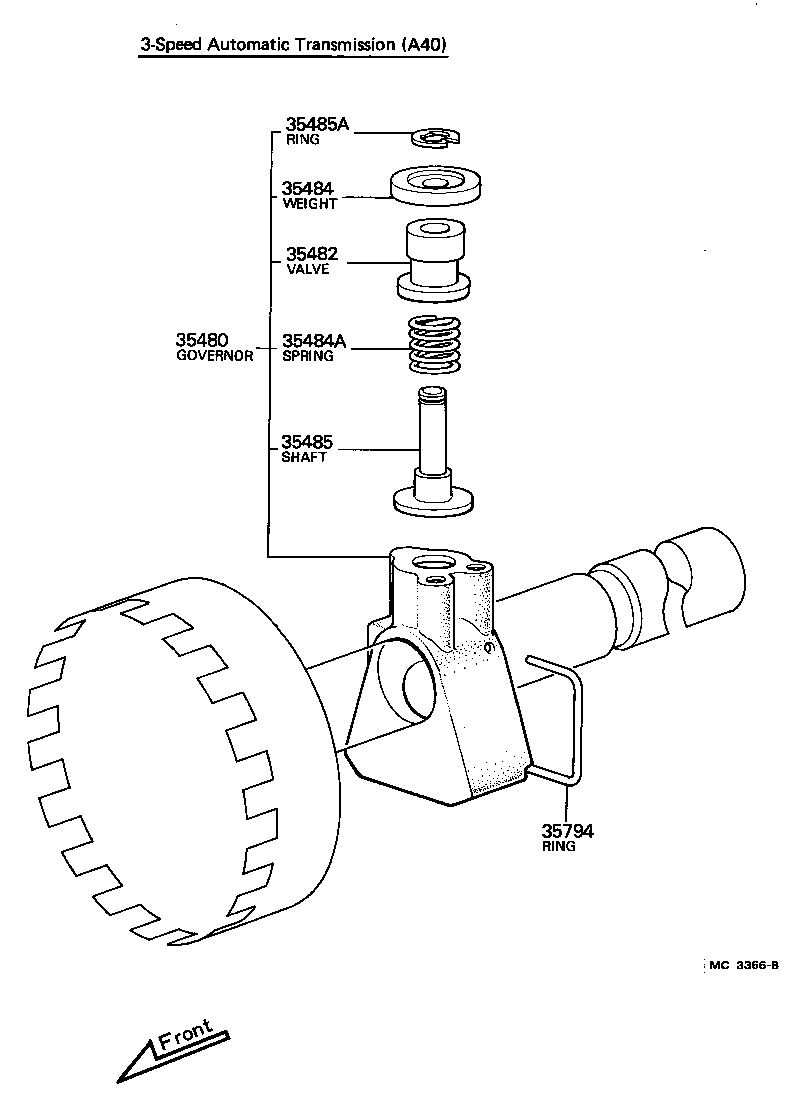

Click highlighted areas on diagram

diagram 35480 35482 35484 35484A 35485 35485A 35794
Part # Description Qty Price
35480 - GOVERNOR
35480-22020

MX3#,RX3#,TX30..3FC

 1
35482 - VALVE, GOVERNOR
35482-22010

MX3#,RX3#,TX30..3FC

 1
35484 - WEIGHT, GOVERNOR, OUTER
35484-22010

MX3#,RX3#,TX30..3FC

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-09673

MX3#,RX3#,TX30..3FC

 1
35485 - SHAFT, GOVERNOR VALVE
35485-22010

MX3#,RX3#,TX30..3FC

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05020

MX3#,RX3#,TX30..3FC

 1
35794 - RING, GOVERNOR RETAINING
35794-22010

MX3#,RX3#,TX30..3FC

 1
