RX35L-WHDC (1977)
Toyota Cressida
Production
Jul 1977
-
Aug 1979
Engine
18RC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)3FC

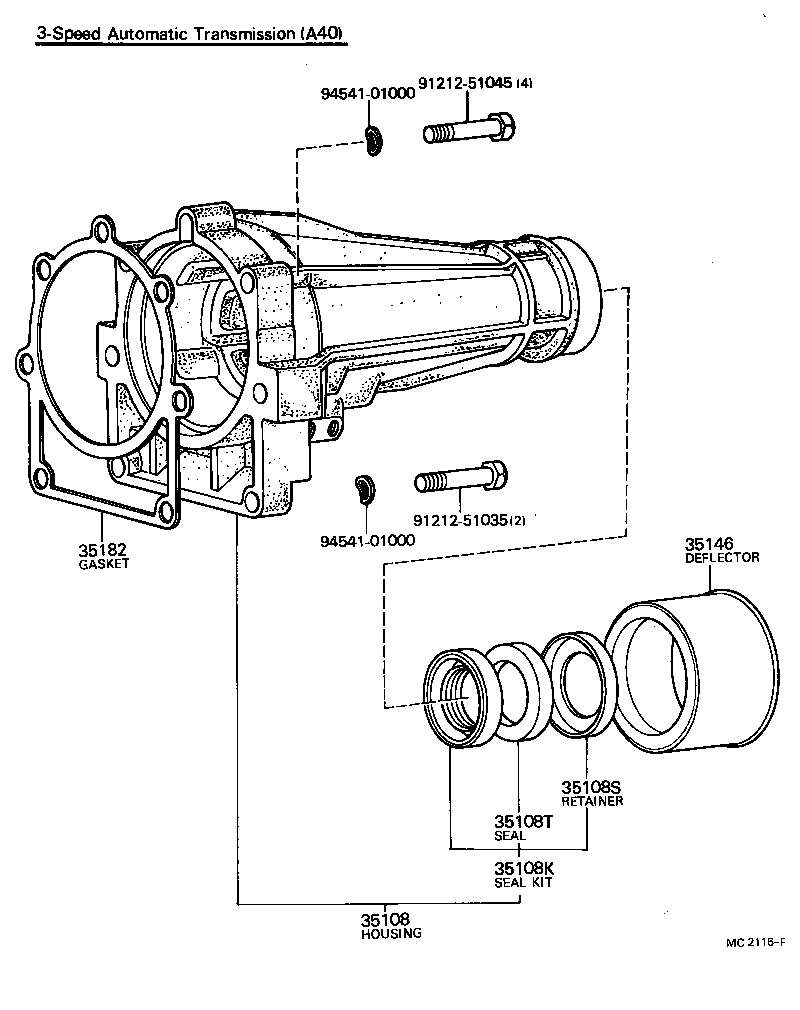

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-22030 |
RX3#..3FC |
1 | ||
| 35108-22031 |
RX3#..3FC |
1 | ||
| 35108K - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 04332-30020 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM) | ||||
| 33145-30010 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN | ||||
| 90303-38010 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM) | ||||
| 33146-30010 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-22010 |
MX3#,RX3#,TX30..3FC |
1 | ||
| Common parts | ||||
| 91212-51035 | ||||
| 91212-51045 | ||||
| 94541-01000 | ||||
