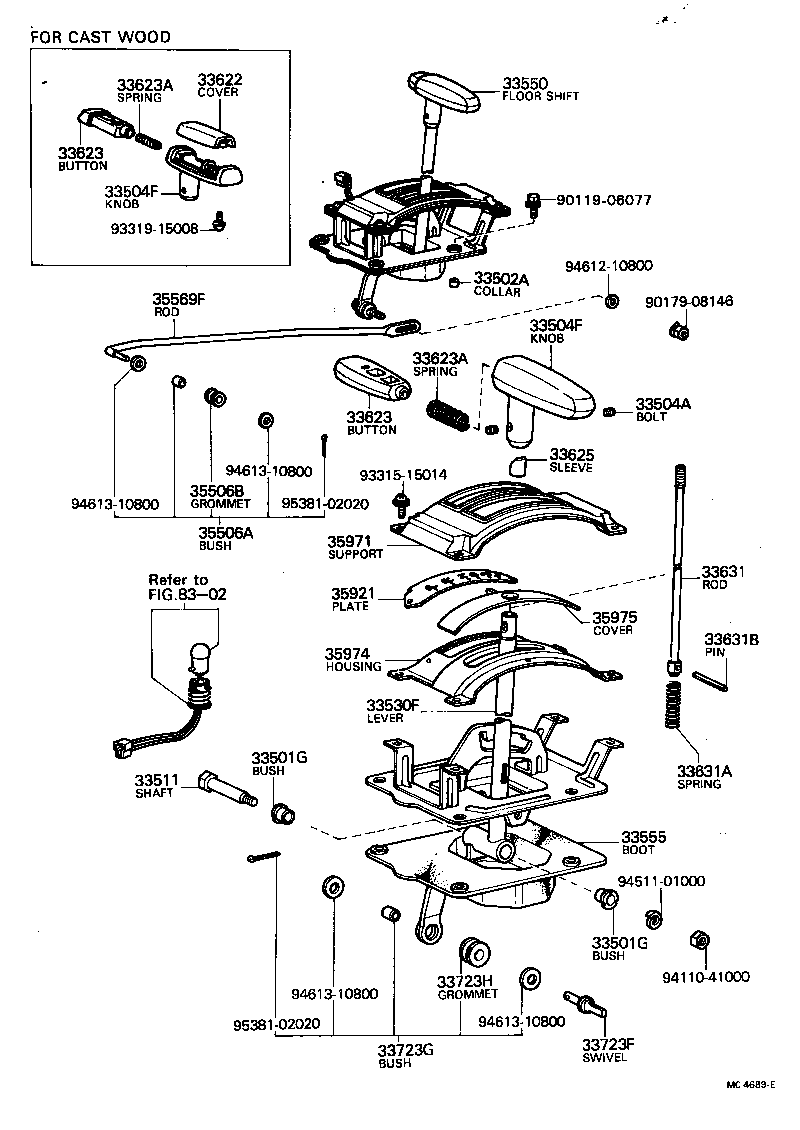

RX35L-WHDC (1977)
Toyota Cressida
(7612-8008)3FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
MX3#,RX3#,TX30..3FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90386-14001 |
MX3#,RX3#,TX30..3FC |
2 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
MX3#,RX3#,TX30..3FC OD=8.8 |
4 | ||
| 33504A - BOLT OR PIN (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90113-05034 |
MX3#,RX3#,TX30..3FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-22130 |
MX3#,RX3#..3FC..DLX BROWN,WOODY |
1 | ||
| 33542-22120 |
MX3#,RX3#..3FC..(DLX,SDX) WOODY |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-22130 |
MX3#,RX3#..3FC..DLX BROWN,WOODY |
1 | ||
| 33542-22120 |
MX3#,RX3#..3FC..(DLX,SDX) WOODY |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22100 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33503-22140 |
RX3#..LHD..3FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-22130 |
RX3#..LHD..3FC DARK BROWN,WOODY |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-22030 |
MX3#,RX3#..3FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22030 |
MX3#,RX3#..3FC..(DLX,SDX) |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-22030 |
MX3#,RX3#..3FC..(DLX,SDX) |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-09009 |
MX3#,RX3#..3FC |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-09009 |
MX3#,RX3#..3FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22020 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-22020 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90254-04017 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35506A - BUSH (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90999-99017 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35506B - GROMMET (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90480-17177 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35569F - ROD, TRANSMISSION CONTROL, 1ST (FOR FLOOR SHIFT) | ||||
| 35569-22100 |
MX3#,RX3#..3FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-22090 |
RX3#..LHD..3FC |
1 | ||
| 35971 - SUPPORT, POSITION INDICATOR | ||||
| 35971-22040 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-22020 |
MX3#,RX3#,TX30..3FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-22030 |
MX3#,RX3#,TX30..3FC |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90179-08146 | ||||
| 93315-15014 | ||||
| 93319-15008 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8302 | ||||
