RX35L-WHDC (1977)
Toyota Cressida
Production
Jul 1977
-
Aug 1979
Engine
18RC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)18R#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11012 |
18RC..RX3# |
1 | ||
| 90917-11012 |
18RC..RX3# |
1 | ||
| 90917-11012 |
18RC..RX3# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11012 |
18RC..RX3# |
1 | ||
| 90917-11012 |
18RC..RX3# |
1 | ||
| 90917-11012 |
18RC..RX3# |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02043 |
18RC..RX3# |
1 | ||
| 90925-02043 |
18RC..RX3# |
1 | ||
| 90925-02043 |
18RC..RX3# |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90464-00233 | ||||
| 90468-05025 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| Linked diagrams | ||||
| 2103 | ||||

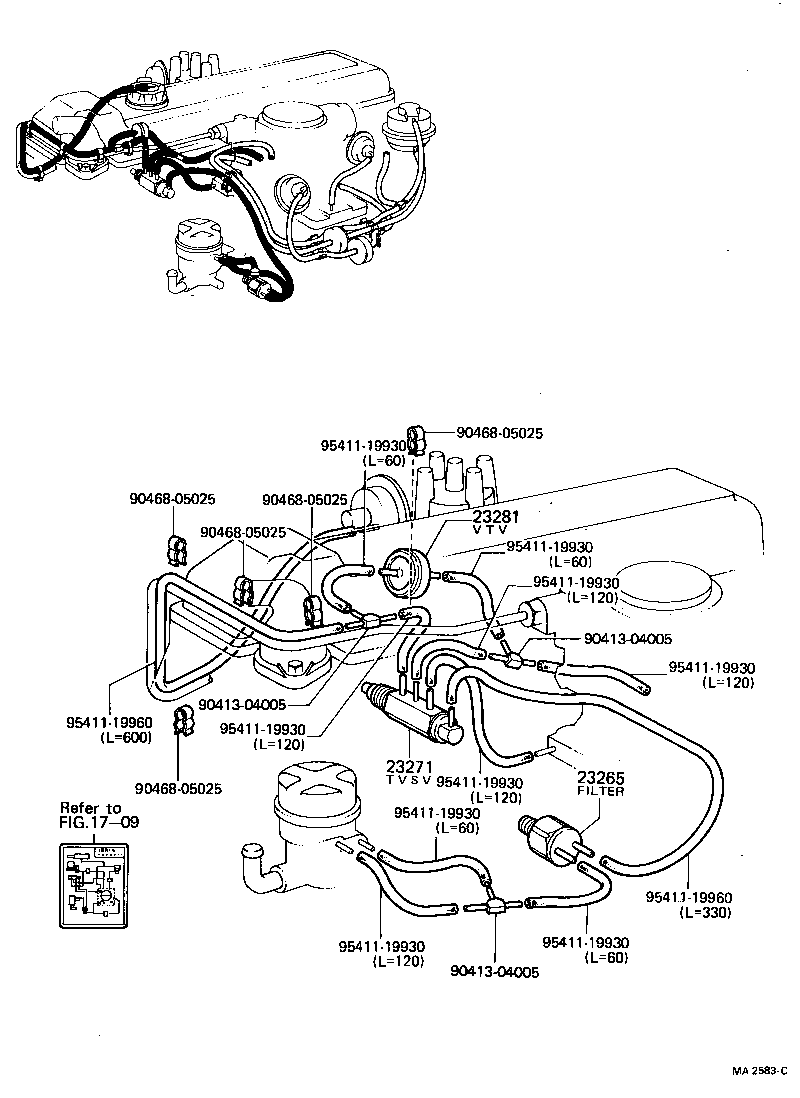

(7707-7908)18RC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11012 |
18RC..RX3# |
1 | ||
| 23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1 | ||||
| 90925-02043 |
18RC..RX3# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01019 |
18RC..RX3# |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90468-05025 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1709 | ||||

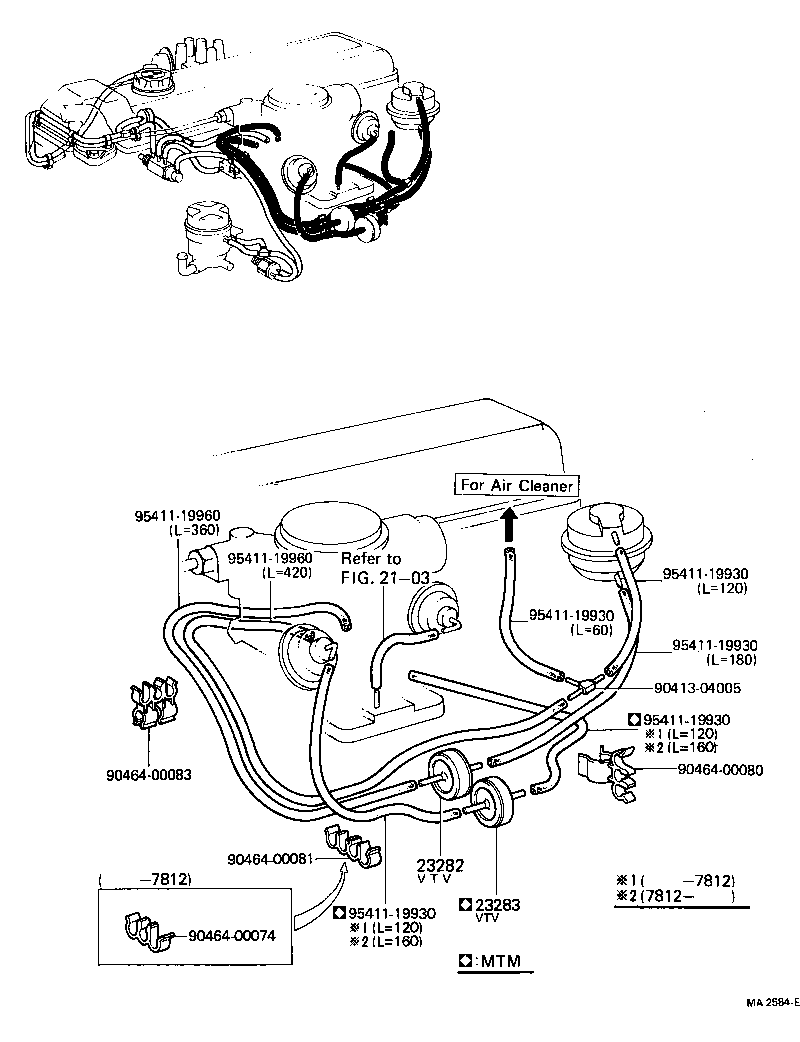

(7707-7908)18RC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01027 |
18RC..RX3# |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00080 | ||||
| 90464-00081 | ||||
| 90464-00083 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||
