RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-8008)18R#..RX35

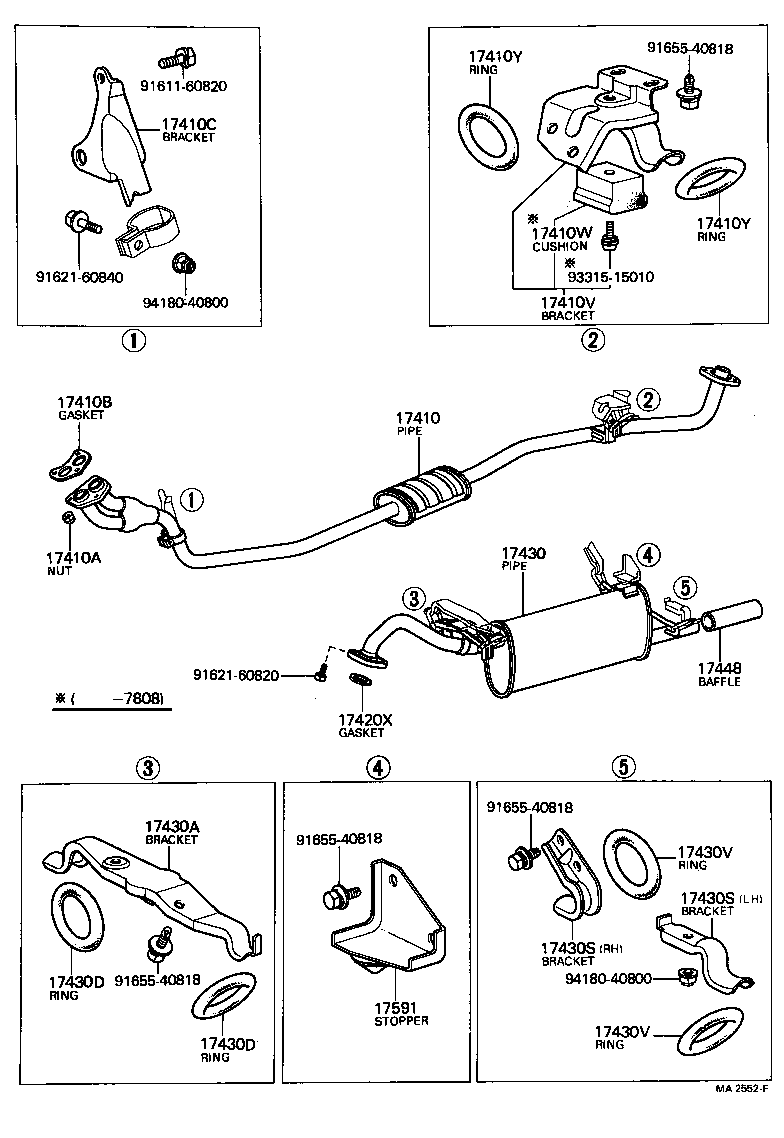

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410V 17410W 17410Y 17410Y 17420X 17430 17430A 17430D 17430D 17430S 17430S 17430V 17430V 17448 17591 9161160820 9162160820 9162160840 9165540818 9165540818 9165540818 9165540818 9331515010 9418040800 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-34250

18R#..RX3#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10118

18R#,4M..MX3#,RX3#

 3
17410B - GASKET, EXHAUST PIPE
17451-41020

18R#,3T..RX3#,TX30

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-34031

18R#..RX3#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17506-34030

18R#..RX3#

 1
17410W - CUSHION, EXHAUST PIPE FRONT (FOR REAR)
17591-36010

18R#..RX3#

 1
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-34207

18R#,3T..RX3#,TX30

 2
17410Y - BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
90301-34207

18R#,3T..RX3#,TX30

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

18R#,4M,3T..MX3#,RX3#,TX30

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-45110

18R#..RX35..EUR

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17507-36030

18R#,4M..MX36,RX35

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

18R#,4M,3T..MX3#,RX3#,TX30

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

18R#,4M,3T..MX3#,RX3#,TX30

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17577-36010

18R#,4M..MX36,RX35

RH

 1
17576-36030

18R#,4M..MX36,RX35

LH

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17577-36010

18R#,4M..MX36,RX35

RH

 1
17576-36030

18R#,4M..MX36,RX35

LH

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

18R#,4M..MX36,RX35

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

18R#,4M..MX36,RX35

 2
17591 - STOPPER, EXHAUST PIPE HANGER
17509-36010

18R#,4M..MX36,RX35

 1
Common parts
91611-60820
91621-60820
91621-60840
91655-40818
93315-15010
94180-40800
