RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7901)18R#..EUR,GEN

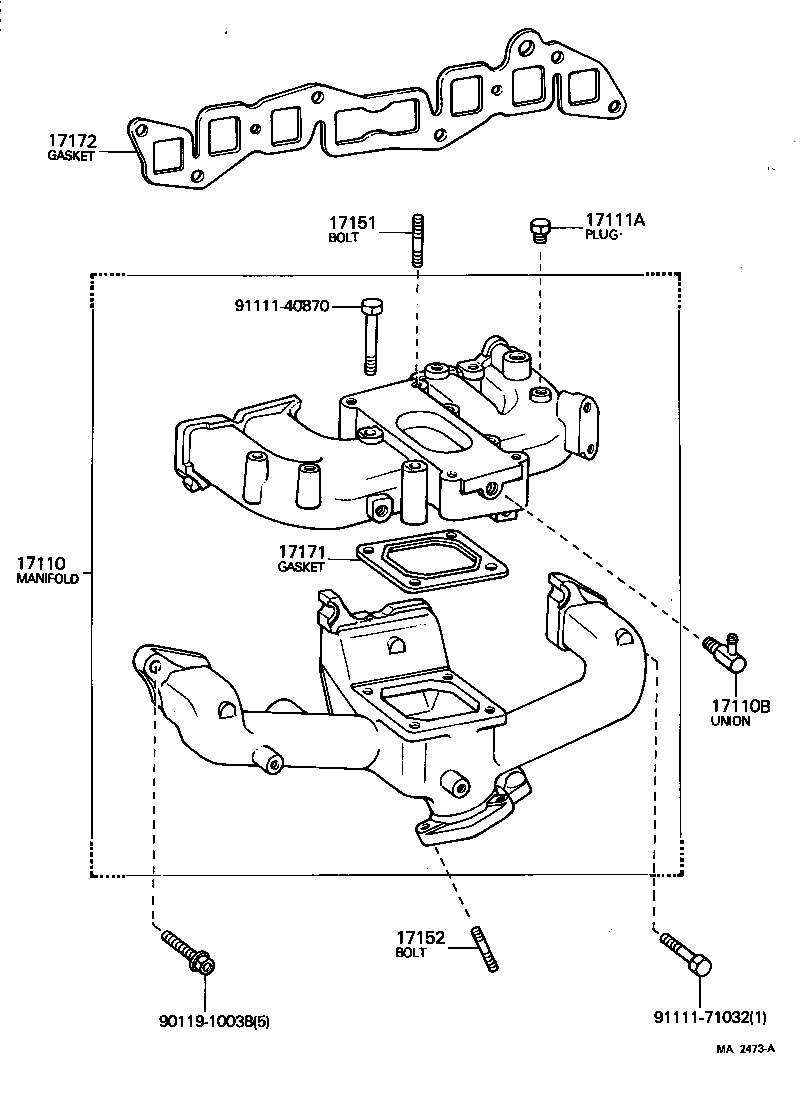

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17151 17152 17171 17172 9011910038 9111140870 9111171032
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-34052

18R..RX3#..EUR,GEN

 1
17110-34100

18RC..RX3#

 1
17110-34051

18R..RX3#..EUR,GEN

 1
17110-34090

18RC..RX3#

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-10040

18R#..RX3#

 1
90407-10040

18R#..RX3#..EUR,GEN

 1
17111A - PLUG, NO.1
90072-34107

18R#..RX3#

 3
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92132-40835

18R..RX3#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10007

18R..RX3#

L=39,S=14&19

 3
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-34020

18R#..RX3#..EUR,GEN

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-34010

18RC..RX3#

 1
17172-33010

18R..RX3#

 1
Common parts
90119-10038
91111-40870
91111-71032
