RX35L-WHDC (1977)

Toyota Cressida

Production Jul 1977 - Aug 1979
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7612-7808)18R#

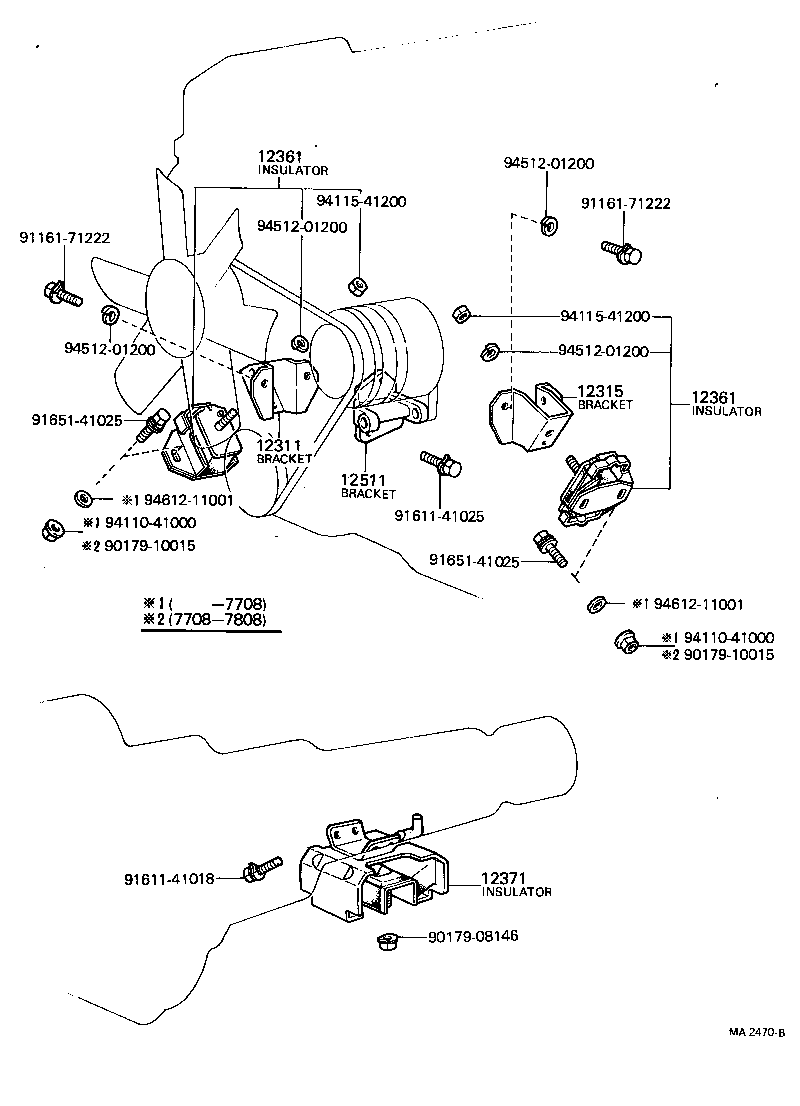

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12511 9017908146 9017910015 9017910015 9116171222 9116171222 9161141018 9161141025 9165141025 9165141025 9411041000 9411041000 9411541200 9411541200 9451201200 9451201200 9451201200 9451201200 9461211001 9461211001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-33011

18R#..RX3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-33011

18R#..RX3#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-39065

18R..RX3#

LH

 1
12361-39145

18R..RX3#

RH

 1
12362-34070

18R#..RX3#..EUR

LH

 1
12361-38080

18R#..RX3#..EUR

RH

 2
12361-38080

18R#..RX3#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12362-39065

18R..RX3#

LH

 1
12361-39145

18R..RX3#

RH

 1
12362-34070

18R#..RX3#..EUR

LH

 1
12361-38080

18R#..RX3#..EUR

RH

 2
12361-38080

18R#..RX3#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-45020

18R..RX3#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-33011

18R#..RX3#

 1
Common parts
90179-08146
90179-10015
91161-71222
91611-41018
91611-41025
91651-41025
94110-41000
94115-41200
94512-01200
94612-11001
