RX30R-EYR (1976)
Toyota Cressida
Production
Dec 1976
-
Aug 1980
Engine
18R
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7612-8008)3H

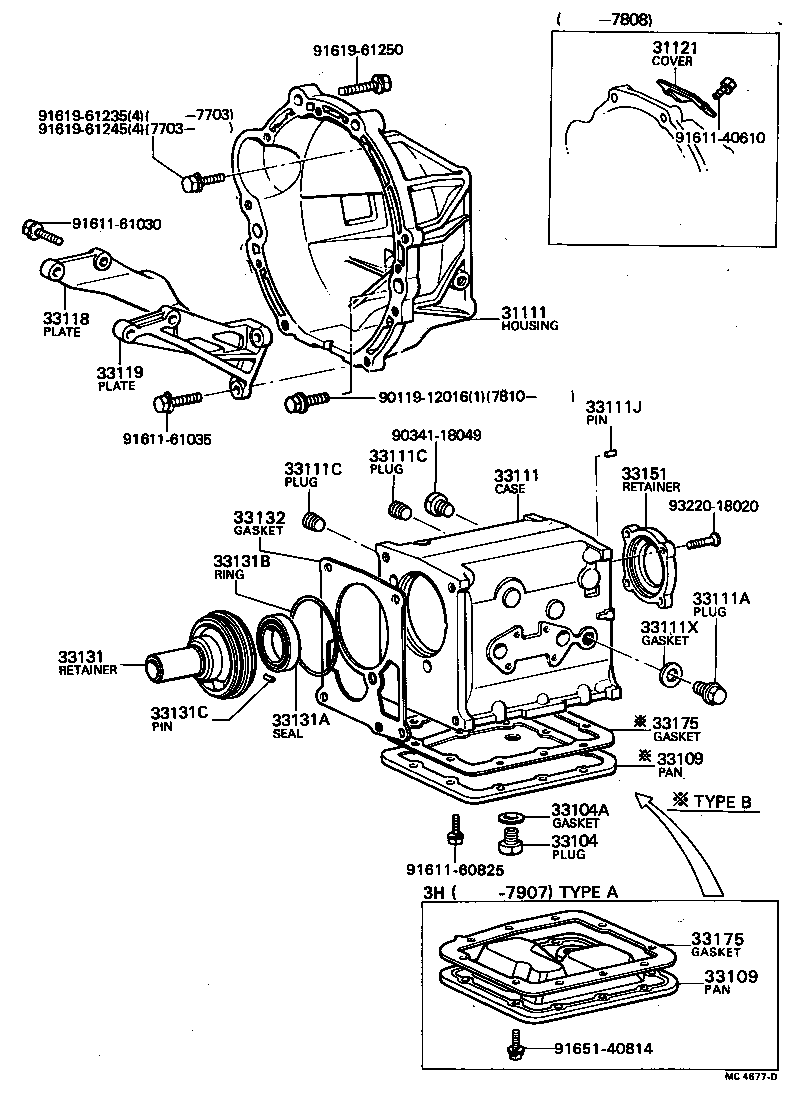

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-20080 |
RX3#..3H |
1 | ||
| 31111-20120 |
RX3#..3H |
1 | ||
| 31111-20120 |
RX3#..MTM |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-30030 |
RX3#..3H |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
MX3#,RX3#,TX30..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
MX3#,RX3#,TX30..MTM |
1 | ||
| 33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM) | ||||
| 33109-30010 |
RX3#..3H TYPE A |
1 | ||
| 33171-30020 |
RX3#..3H TYPE B |
1 | ||
| 33109 - PAN SUB-ASSY, TRANSMISSION OIL(MTM) | ||||
| 33109-30010 |
RX3#..3H TYPE A |
1 | ||
| 33171-30020 |
RX3#..3H TYPE B |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-30062 |
RX3#..RHD..3H |
1 | ||
| 33111-30061 |
RX3#..RHD..3H |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
MX3#,RX3#,TX30..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90344-53015 |
RX3#..3H |
4 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90344-53015 |
RX3#..3H |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12216 |
RX3#..3H L=14,OD=12 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
MX3#,RX3#,TX30..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22030 |
RX3#..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22021 |
RX3#..MTM |
1 | ||
| 33119-22020 |
RX3#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-30040 |
RX3#..3H |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
RX3#..3H |
1 | ||
| 33131B - RING, O(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90301-99003 |
RX3#..3H |
1 | ||
| 33131C - PIN, SLOTTED SPRING(FOR TRANSMISSION FRONT BEARING RETA | ||||
| 90254-05005 |
RX3#..3H |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-20050 |
RX3#..3H |
1 | ||
| 33132-30040 |
RX3#..3H |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-30030 |
RX3#..3H |
1 | ||
| 33175 - GASKET, MANUAL TRANSMISSION OIL PAN | ||||
| 33175-30010 |
RX3#..3H TYPE A |
1 | ||
| 33175-30020 |
RX3#..3H TYPE B |
1 | ||
| 33175 - GASKET, MANUAL TRANSMISSION OIL PAN | ||||
| 33175-30010 |
RX3#..3H TYPE A |
1 | ||
| 33175-30020 |
RX3#..3H TYPE B |
1 | ||
| Common parts | ||||
| 90119-12016 | ||||
| 90341-18049 | ||||
| 91611-40610 | ||||
| 91611-60825 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61250 | ||||
| 91651-40814 | ||||
| 93220-18020 | ||||
