MX83R-AEPEFQ (1988)
Toyota Cressida
Production
Aug 1988
-
Aug 1990
Engine
7MGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

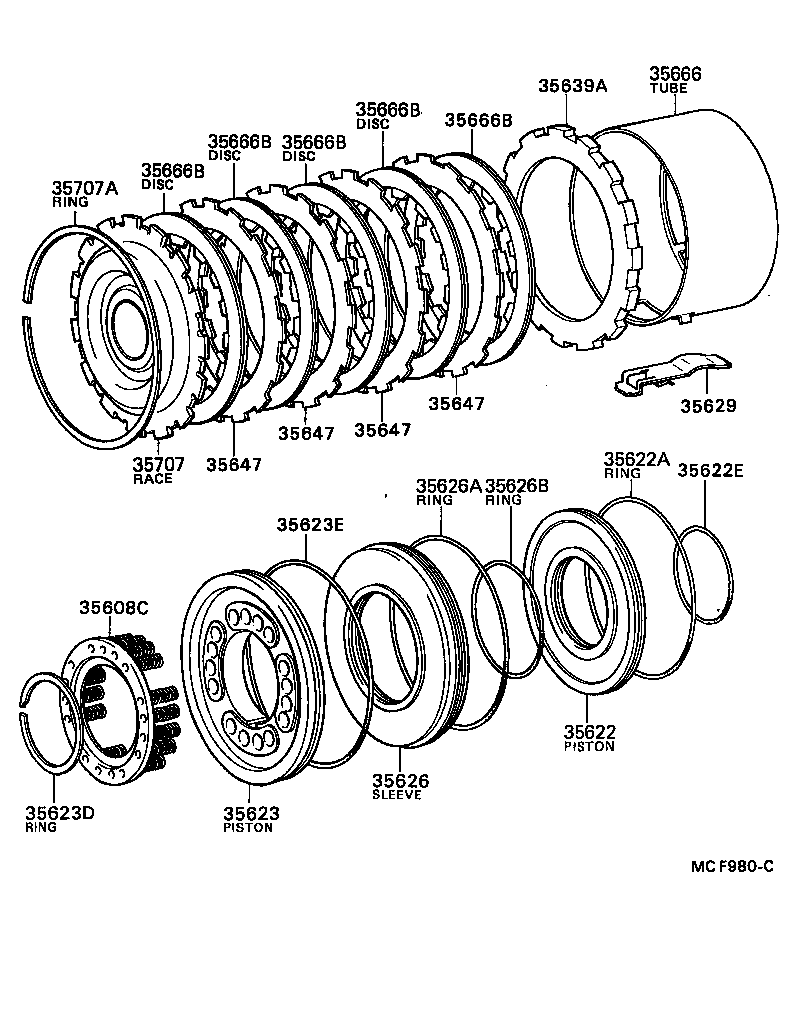

(8808-9302)GX81,LX80,MX81,RX8#..4FC ; (9302-)4FC
Click highlighted areas on diagram
A42D,A42DL,A43D,A43DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-30010 |
MX83 |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99193 |
MX83 OUTER |
1 | ||
| 90301-57188 |
MX83 INNER |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
MX83 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||

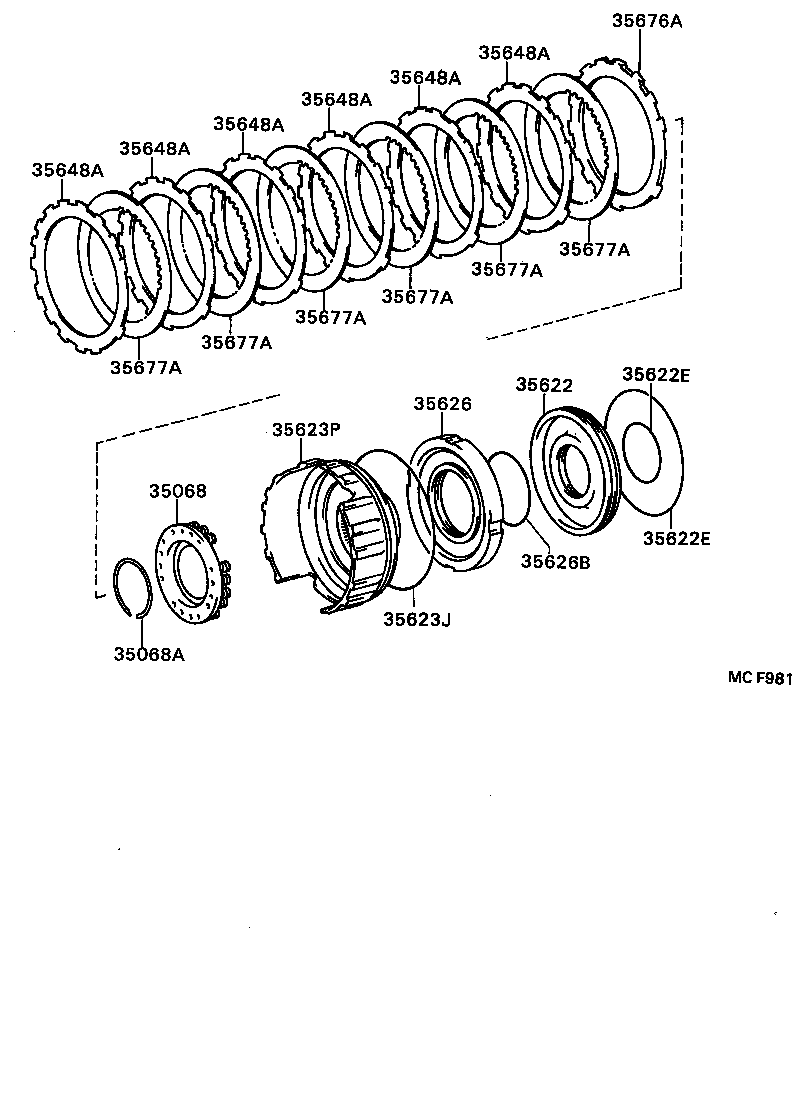

(8808-9302)MX83
Click highlighted areas on diagram
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-30011 |
MX83 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
MX83 |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-30010 |
MX83 |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99193 |
MX83 OUTER |
1 | ||
| 90301-57188 |
MX83 INNER |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-99193 |
MX83 OUTER |
1 | ||
| 90301-57188 |
MX83 INNER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99192 |
MX83 |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-30011 |
MX83 |
1 | ||
| 35623-30010 |
MX83 |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-30020 |
MX83 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
MX83 |
6 | ||
| 35648-30031 |
MX83 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
MX83 |
6 | ||
| 35648-30031 |
MX83 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
MX83 |
6 | ||
| 35648-30031 |
MX83 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
MX83 |
6 | ||
| 35648-30031 |
MX83 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
MX83 |
6 | ||
| 35648-30031 |
MX83 |
7 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-30031 |
MX83 |
6 | ||
| 35648-30031 |
MX83 |
7 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-30030 |
MX83 T=4.0 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
MX83 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
MX83 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
MX83 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
MX83 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
MX83 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-30110 |
MX83 |
6 | ||
