MX81L-AEPEEV (1988)
Toyota Cressida
Production
Aug 1988
-
Feb 1993
Engine
5ME
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

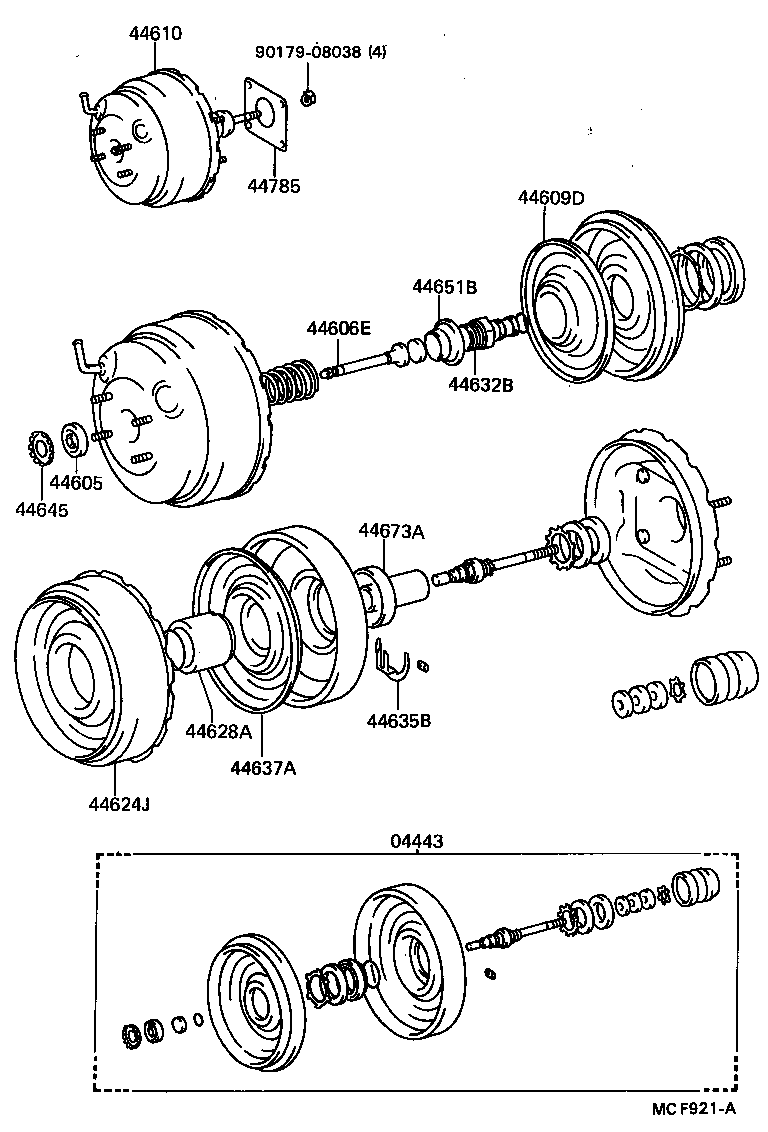

ILLUST NO. 1 OF 2(8808- )MX81
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-22640 |
MX81 |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-30350 |
MX81 |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44608-17090 |
MX81 |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-17090 |
MX81 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22690 |
MX81 |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-20810 |
MX81 |
1 | ||
| 44628A - BODY, BOOSTER CENTER | ||||
| 44628-20810 |
MX81 |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-20810 |
MX81 |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44633-20811 |
MX81 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-20810 |
MX81 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
MX81 |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
MX81 |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-20810 |
MX81 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
GX81,LX80,MX8#,RX8# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

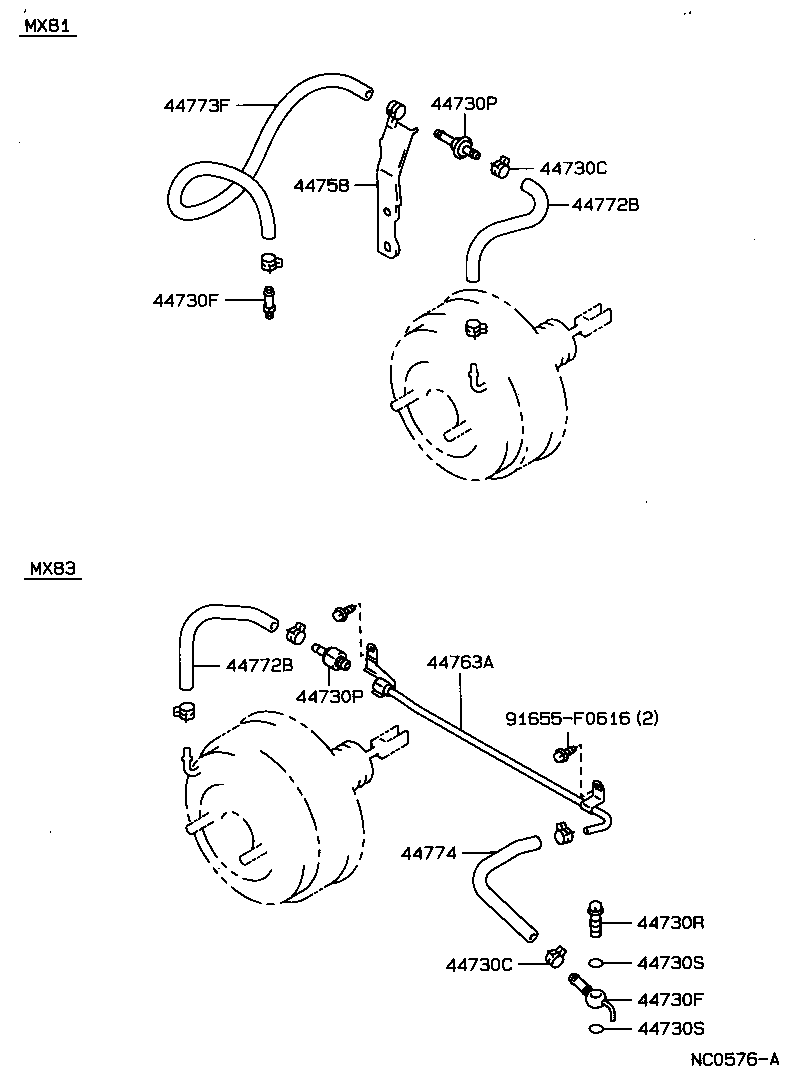

ILLUST NO. 2 OF 2(8808- )MX8#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
GX81,MX81..LHD |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
GX81,MX81..LHD |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
GX81,MX81,RX8# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
GX81,MX81,RX8# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
GX81,MX81..LHD |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
GX81,MX81..LHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22220 |
MX81 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22240 |
MX81 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22240 |
MX81 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-22470 |
MX81 |
1 | ||
| Common parts | ||||
| 91655-F0616 | ||||
