MX81L-AEPEEV (1988)
Toyota Cressida
(8808-9308)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
GX81,LX80,MX8#,RX8#..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
GX81,LX80,MX8#,RX8#..4FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-22270 |
LX80,MX81..4FC |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
GX81,LX80,MX8#,RX8#..4FC OD=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-22290 |
LX80,MX81..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2217006 |
LX80,MX81,RX8#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33542-2217003 |
LX80,MX81,RX8#..LHD..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33542-2217002 |
LX80,MX81,RX8#..LHD..4FC NEW MAROON,TRIM3# |
1 | ||
| 33542-2217004 |
LX80,MX81,RX8#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22170 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33542A - SCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB) | ||||
| 90159-40109 |
GX81,LX80,MX8#,RX8#..4FC |
2 | ||
| 33542A - SCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB) | ||||
| 90159-40109 |
GX81,LX80,MX8#,RX8#..4FC |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
GX81,LX80,MX8#,RX8#..4FC 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04014 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-22080 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-2208004 |
LX80,MX81,RX8#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33622-2208003 |
LX80,MX81,RX8#..LHD..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33622-2208006 |
LX80,MX81,RX8#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33622-2208002 |
LX80,MX81,RX8#..LHD..4FC NEW MAROON,TRIM3# |
1 | ||
| 33622 - COVER, SHIFT LEVER KNOB, NO.1 | ||||
| 33622-2208004 |
LX80,MX81,RX8#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33622-2208003 |
LX80,MX81,RX8#..LHD..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33622-2208006 |
LX80,MX81,RX8#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33622-2208002 |
LX80,MX81,RX8#..LHD..4FC NEW MAROON,TRIM3# |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-2207004 |
LX80,MX81,RX8#..LHD..4FC DARK BLUE,TRIM8# |
1 | ||
| 33623-2207006 |
LX80,MX81,RX8#..LHD..4FC SABLE,TRIM4# |
1 | ||
| 33623-2207003 |
LX80,MX81,RX8#..LHD..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 33623-2207002 |
LX80,MX81,RX8#..LHD..4FC NEW MAROON,TRIM3# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-22040 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-22010 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-22050 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07005 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-04003 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-22020 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17001 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 35569-22210 |
GX81,MX81..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-14020 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-22210 |
LX80,MX81,RX8#..LHD..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-22110 |
LX80,MX81,RX8#..LHD..4FC |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 35972-22110 |
LX80,MX81,RX8#..LHD..4FC |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-22020 |
GX81,LX80,MX8#,RX8#..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-22080 |
LX80,MX81,RX8#..LHD..4FC |
1 | ||
| 35974-22081 |
LX80,MX81,RX8#..LHD..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-22080 |
LX80,MX81,RX8#..LHD..4FC |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08041 | ||||
| 90468-14004 | ||||
| 90468-14011 | ||||
| 93315-15012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||

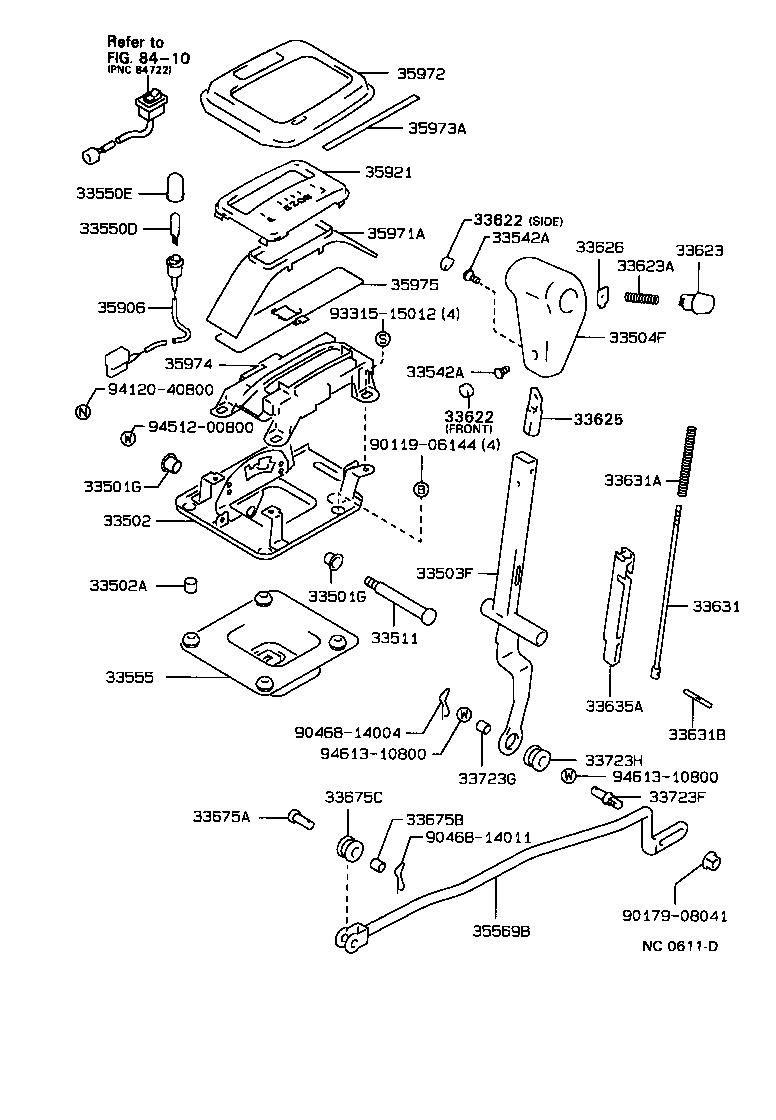

| Linked diagrams | ||||
| 8410 | ||||
