MX81L-AEMQEV (1988)
Toyota Cressida
Production
Aug 1988
-
Feb 1993
Engine
5ME
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )GX81,MX81..LHD

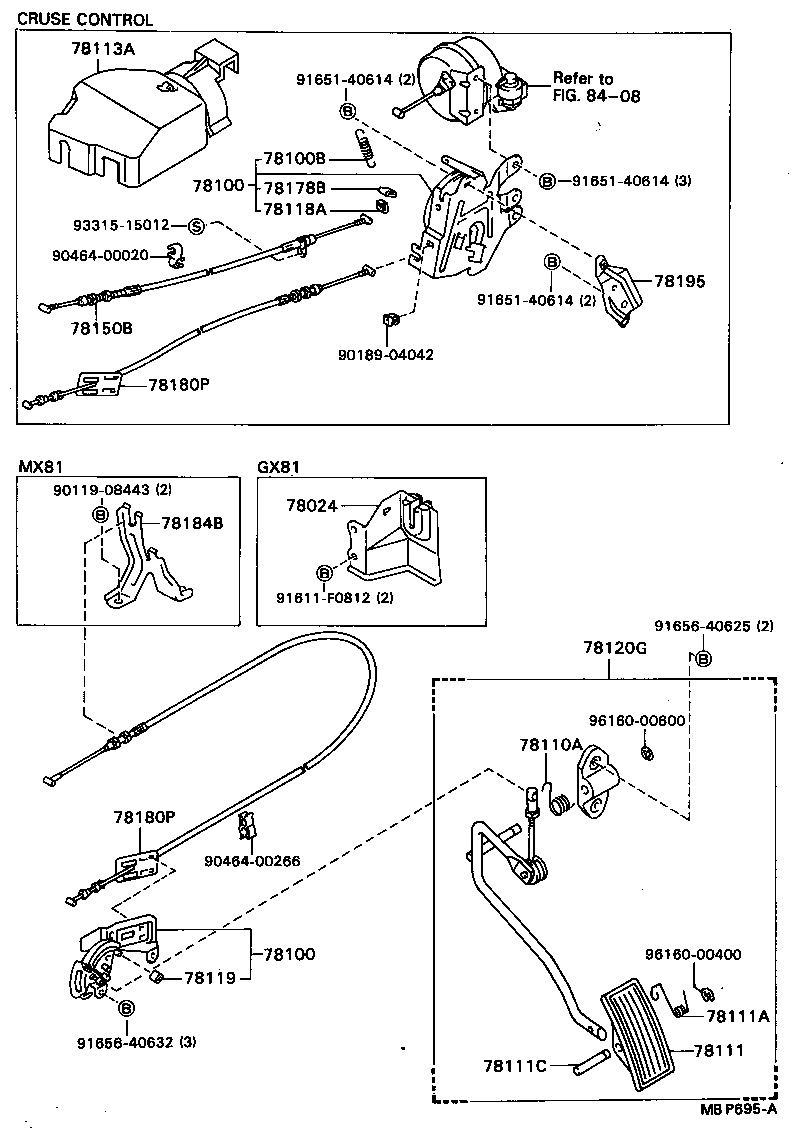

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-22090 |
GX81,MX81..LHD |
1 | ||
| 78100-32020 |
MX81..GD W(CRUISE CONTROL) |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-22090 |
GX81,MX81..LHD |
1 | ||
| 78100-32020 |
MX81..GD W(CRUISE CONTROL) |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
MX81..GD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-30007 |
GX81,LX80,MX81..LHD..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23108 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GX81,LX80,MX8#,RX8# |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-32020 |
MX81..GD |
1 | ||
| 78118A - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-12010 |
MX81..GD |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-30050 |
GX81,LX80,MX81..LHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22290 |
GX81,LX80,MX81..LHD..5F |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-22020 |
MX81..GD |
1 | ||
| 78150-22021 |
MX81..GD |
1 | ||
| 78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET | ||||
| 78178-14010 |
MX81..GD |
3 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2A321 |
MX81 |
1 | ||
| 78180-2A320 |
MX81 |
1 | ||
| 78180-2A030 |
MX81..GD W(CRUISE CONTROL) |
1 | ||
| 78180-22450 |
MX81 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2A321 |
MX81 |
1 | ||
| 78180-2A320 |
MX81 |
1 | ||
| 78180-2A030 |
MX81..GD W(CRUISE CONTROL) |
1 | ||
| 78180-22450 |
MX81 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-30070 |
MX81 |
1 | ||
| 78024-22170 |
MX81 |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-22050 |
MX81..GD |
1 | ||
| Common parts | ||||
| 90119-08443 | ||||
| 90189-04042 | ||||
| 90464-00020 | ||||
| 90464-00266 | ||||
| 91611-F0812 | ||||
| 91651-40614 | ||||
| 91656-40625 | ||||
| 91656-40632 | ||||
| 93315-15012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8408 | ||||
