MX81L-AEMNEV (1988)
Toyota Cressida
(8808-9302)5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-43010 |
5ME,7MGE..MX8# O/S 0.125 |
1 | ||
| 11013-43010 |
5ME..MX81 O/S 0.250 |
1 | ||
| 11011-43010 |
5ME,7MGE..MX8# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-43010 |
5ME,7MGE..MX8# U/S 0.25 |
1 | ||
| 11705-43010 |
5ME..MX81 U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301004 |
5ME,7MGE..MX8# MARK 4,NO.1 |
1 | ||
| 11701-4301003 |
5ME,7MGE..MX8# MARK 3,NO.2 |
6 | ||
| 11701-4301002 |
5ME,7MGE..MX8# MARK 2,NO.2 |
6 | ||
| 11071-4301003 |
5ME,7MGE..MX8# MARK 3,NO.1 |
1 | ||
| 11071-4301005 |
5ME,7MGE..MX8# MARK 5,NO.1 |
1 | ||
| 11701-4301001 |
5ME,7MGE..MX8# MARK 1,NO.2 |
6 | ||
| 11071-4301002 |
5ME,7MGE..MX8# MARK 2,NO.1 |
1 | ||
| 11071-4301001 |
5ME,7MGE..MX8# MARK 1,NO.1 |
1 | ||
| 11701-4301005 |
5ME,7MGE..MX8# MARK 5,NO.2 |
6 | ||
| 11701-4301004 |
5ME,7MGE..MX8# MARK 4,NO.2 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301004 |
5ME,7MGE..MX8# MARK 4,NO.1 |
1 | ||
| 11701-4301003 |
5ME,7MGE..MX8# MARK 3,NO.2 |
6 | ||
| 11701-4301002 |
5ME,7MGE..MX8# MARK 2,NO.2 |
6 | ||
| 11071-4301003 |
5ME,7MGE..MX8# MARK 3,NO.1 |
1 | ||
| 11071-4301005 |
5ME,7MGE..MX8# MARK 5,NO.1 |
1 | ||
| 11701-4301001 |
5ME,7MGE..MX8# MARK 1,NO.2 |
6 | ||
| 11071-4301002 |
5ME,7MGE..MX8# MARK 2,NO.1 |
1 | ||
| 11071-4301001 |
5ME,7MGE..MX8# MARK 1,NO.1 |
1 | ||
| 11701-4301005 |
5ME,7MGE..MX8# MARK 5,NO.2 |
6 | ||
| 11701-4301004 |
5ME,7MGE..MX8# MARK 4,NO.2 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301004 |
5ME,7MGE..MX8# MARK 4,NO.1 |
1 | ||
| 11701-4301003 |
5ME,7MGE..MX8# MARK 3,NO.2 |
6 | ||
| 11701-4301002 |
5ME,7MGE..MX8# MARK 2,NO.2 |
6 | ||
| 11071-4301003 |
5ME,7MGE..MX8# MARK 3,NO.1 |
1 | ||
| 11071-4301005 |
5ME,7MGE..MX8# MARK 5,NO.1 |
1 | ||
| 11701-4301001 |
5ME,7MGE..MX8# MARK 1,NO.2 |
6 | ||
| 11071-4301002 |
5ME,7MGE..MX8# MARK 2,NO.1 |
1 | ||
| 11071-4301001 |
5ME,7MGE..MX8# MARK 1,NO.1 |
1 | ||
| 11701-4301005 |
5ME,7MGE..MX8# MARK 5,NO.2 |
6 | ||
| 11701-4301004 |
5ME,7MGE..MX8# MARK 4,NO.2 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301004 |
5ME,7MGE..MX8# MARK 4,NO.1 |
1 | ||
| 11701-4301003 |
5ME,7MGE..MX8# MARK 3,NO.2 |
6 | ||
| 11701-4301002 |
5ME,7MGE..MX8# MARK 2,NO.2 |
6 | ||
| 11071-4301003 |
5ME,7MGE..MX8# MARK 3,NO.1 |
1 | ||
| 11071-4301005 |
5ME,7MGE..MX8# MARK 5,NO.1 |
1 | ||
| 11701-4301001 |
5ME,7MGE..MX8# MARK 1,NO.2 |
6 | ||
| 11071-4301002 |
5ME,7MGE..MX8# MARK 2,NO.1 |
1 | ||
| 11071-4301001 |
5ME,7MGE..MX8# MARK 1,NO.1 |
1 | ||
| 11701-4301005 |
5ME,7MGE..MX8# MARK 5,NO.2 |
6 | ||
| 11701-4301004 |
5ME,7MGE..MX8# MARK 4,NO.2 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301004 |
5ME,7MGE..MX8# MARK 4,NO.1 |
1 | ||
| 11701-4301003 |
5ME,7MGE..MX8# MARK 3,NO.2 |
6 | ||
| 11701-4301002 |
5ME,7MGE..MX8# MARK 2,NO.2 |
6 | ||
| 11071-4301003 |
5ME,7MGE..MX8# MARK 3,NO.1 |
1 | ||
| 11071-4301005 |
5ME,7MGE..MX8# MARK 5,NO.1 |
1 | ||
| 11701-4301001 |
5ME,7MGE..MX8# MARK 1,NO.2 |
6 | ||
| 11071-4301002 |
5ME,7MGE..MX8# MARK 2,NO.1 |
1 | ||
| 11071-4301001 |
5ME,7MGE..MX8# MARK 1,NO.1 |
1 | ||
| 11701-4301005 |
5ME,7MGE..MX8# MARK 5,NO.2 |
6 | ||
| 11701-4301004 |
5ME,7MGE..MX8# MARK 4,NO.2 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301004 |
5ME,7MGE..MX8# MARK 4,NO.1 |
1 | ||
| 11701-4301003 |
5ME,7MGE..MX8# MARK 3,NO.2 |
6 | ||
| 11701-4301002 |
5ME,7MGE..MX8# MARK 2,NO.2 |
6 | ||
| 11071-4301003 |
5ME,7MGE..MX8# MARK 3,NO.1 |
1 | ||
| 11071-4301005 |
5ME,7MGE..MX8# MARK 5,NO.1 |
1 | ||
| 11701-4301001 |
5ME,7MGE..MX8# MARK 1,NO.2 |
6 | ||
| 11071-4301002 |
5ME,7MGE..MX8# MARK 2,NO.1 |
1 | ||
| 11071-4301001 |
5ME,7MGE..MX8# MARK 1,NO.1 |
1 | ||
| 11701-4301005 |
5ME,7MGE..MX8# MARK 5,NO.2 |
6 | ||
| 11701-4301004 |
5ME,7MGE..MX8# MARK 4,NO.2 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301004 |
5ME,7MGE..MX8# MARK 4,NO.1 |
1 | ||
| 11701-4301003 |
5ME,7MGE..MX8# MARK 3,NO.2 |
6 | ||
| 11701-4301002 |
5ME,7MGE..MX8# MARK 2,NO.2 |
6 | ||
| 11071-4301003 |
5ME,7MGE..MX8# MARK 3,NO.1 |
1 | ||
| 11071-4301005 |
5ME,7MGE..MX8# MARK 5,NO.1 |
1 | ||
| 11701-4301001 |
5ME,7MGE..MX8# MARK 1,NO.2 |
6 | ||
| 11071-4301002 |
5ME,7MGE..MX8# MARK 2,NO.1 |
1 | ||
| 11071-4301001 |
5ME,7MGE..MX8# MARK 1,NO.1 |
1 | ||
| 11701-4301005 |
5ME,7MGE..MX8# MARK 5,NO.2 |
6 | ||
| 11701-4301004 |
5ME,7MGE..MX8# MARK 4,NO.2 |
6 | ||
| 13011 - RING SET, PISTON | ||||
| 13015-43030 |
5ME..MX81 O/S 1.00 |
1 | ||
| 13013-43030 |
5ME..MX81 O/S 0.50 |
1 | ||
| 13014-43030 |
5ME..MX81 O/S 0.75 |
1 | ||
| 13011-43030 |
5ME..MX81 STD |
1 | ||
| 13014-43031 |
5ME..MX81 O/S 0.75 |
1 | ||
| 13011-43031 |
5ME..MX81 STD |
1 | ||
| 13015-43031 |
5ME..MX81 O/S 1.00 |
1 | ||
| 13013-43031 |
5ME..MX81 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5ME,7MGE..MX8# MARK 1 |
6 | ||
| 13041-4201004 |
5ME,7MGE..MX8# MARK 4 |
6 | ||
| 13041-4201003 |
5ME,7MGE..MX8# MARK 3 |
6 | ||
| 13041-4201002 |
5ME,7MGE..MX8# MARK 2 |
6 | ||
| 13041-4201005 |
5ME,7MGE..MX8# MARK 5 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5ME,7MGE..MX8# MARK 1 |
6 | ||
| 13041-4201004 |
5ME,7MGE..MX8# MARK 4 |
6 | ||
| 13041-4201003 |
5ME,7MGE..MX8# MARK 3 |
6 | ||
| 13041-4201002 |
5ME,7MGE..MX8# MARK 2 |
6 | ||
| 13041-4201005 |
5ME,7MGE..MX8# MARK 5 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5ME,7MGE..MX8# MARK 1 |
6 | ||
| 13041-4201004 |
5ME,7MGE..MX8# MARK 4 |
6 | ||
| 13041-4201003 |
5ME,7MGE..MX8# MARK 3 |
6 | ||
| 13041-4201002 |
5ME,7MGE..MX8# MARK 2 |
6 | ||
| 13041-4201005 |
5ME,7MGE..MX8# MARK 5 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5ME,7MGE..MX8# MARK 1 |
6 | ||
| 13041-4201004 |
5ME,7MGE..MX8# MARK 4 |
6 | ||
| 13041-4201003 |
5ME,7MGE..MX8# MARK 3 |
6 | ||
| 13041-4201002 |
5ME,7MGE..MX8# MARK 2 |
6 | ||
| 13041-4201005 |
5ME,7MGE..MX8# MARK 5 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5ME,7MGE..MX8# MARK 1 |
6 | ||
| 13041-4201004 |
5ME,7MGE..MX8# MARK 4 |
6 | ||
| 13041-4201003 |
5ME,7MGE..MX8# MARK 3 |
6 | ||
| 13041-4201002 |
5ME,7MGE..MX8# MARK 2 |
6 | ||
| 13041-4201005 |
5ME,7MGE..MX8# MARK 5 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5ME,7MGE..MX8# MARK 1 |
6 | ||
| 13041-4201004 |
5ME,7MGE..MX8# MARK 4 |
6 | ||
| 13041-4201003 |
5ME,7MGE..MX8# MARK 3 |
6 | ||
| 13041-4201002 |
5ME,7MGE..MX8# MARK 2 |
6 | ||
| 13041-4201005 |
5ME,7MGE..MX8# MARK 5 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201001 |
5ME,7MGE..MX8# MARK 1 |
6 | ||
| 13041-4201004 |
5ME,7MGE..MX8# MARK 4 |
6 | ||
| 13041-4201003 |
5ME,7MGE..MX8# MARK 3 |
6 | ||
| 13041-4201002 |
5ME,7MGE..MX8# MARK 2 |
6 | ||
| 13041-4201005 |
5ME,7MGE..MX8# MARK 5 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-4301100 |
5ME..MX81 STD,MARK 0 |
6 | ||
| 13101-4301102 |
5ME..MX81 STD,MARK 2 |
6 | ||
| 13101-4301103 |
5ME..MX81 STD,MARK 3 |
6 | ||
| 13101-4301101 |
5ME..MX81 STD,MARK 1 |
6 | ||
| 13101-4301104 |
5ME..MX81 STD,MARK 4 |
6 | ||
| 13103-43031 |
5ME..MX81 O/S 0.50 |
6 | ||
| 13105-43031 |
5ME..MX81 O/S 1.00 |
6 | ||
| 13101-43011S0 |
5ME..MX81 STD,MARK 0 |
6 | ||
| 13104-43031 |
5ME..MX81 O/S 0.75 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25001 |
5ME,7MGE..MX8# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-49025 |
5ME..MX81 |
6 | ||
| 13201-49026 |
5ME..MX81 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73066 |
5ME..MX81 |
12 | ||
| 90999-73066 |
5ME,7MGE..MX8# |
12 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-42010 |
5ME..MX81 U/S 0.50 |
1 | ||
| 13204-42010 |
5ME,7MGE..MX8# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-45010 |
5ME..MX81 |
12 | ||
| 13265-52010 |
5ME..MX81 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
5ME..MX81 |
12 | ||
| 90179-09006 |
5ME..MX81 |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-49175 |
5ME..MX81..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
5ME..MX81..5F L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
5ME..MX81..5F |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-45013 |
5ME..MX81 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
5ME..MX81..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-41030 |
5ME..MX81 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05003 |
5ME,7MGE..MX8# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16011 |
5ME..MX81 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-30330 |
5ME..MX81 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-41011 |
5ME..MX81 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05003 |
5ME,7MGE..MX8# |
1 | ||
| Common parts | ||||
| 90119-08251 | ||||

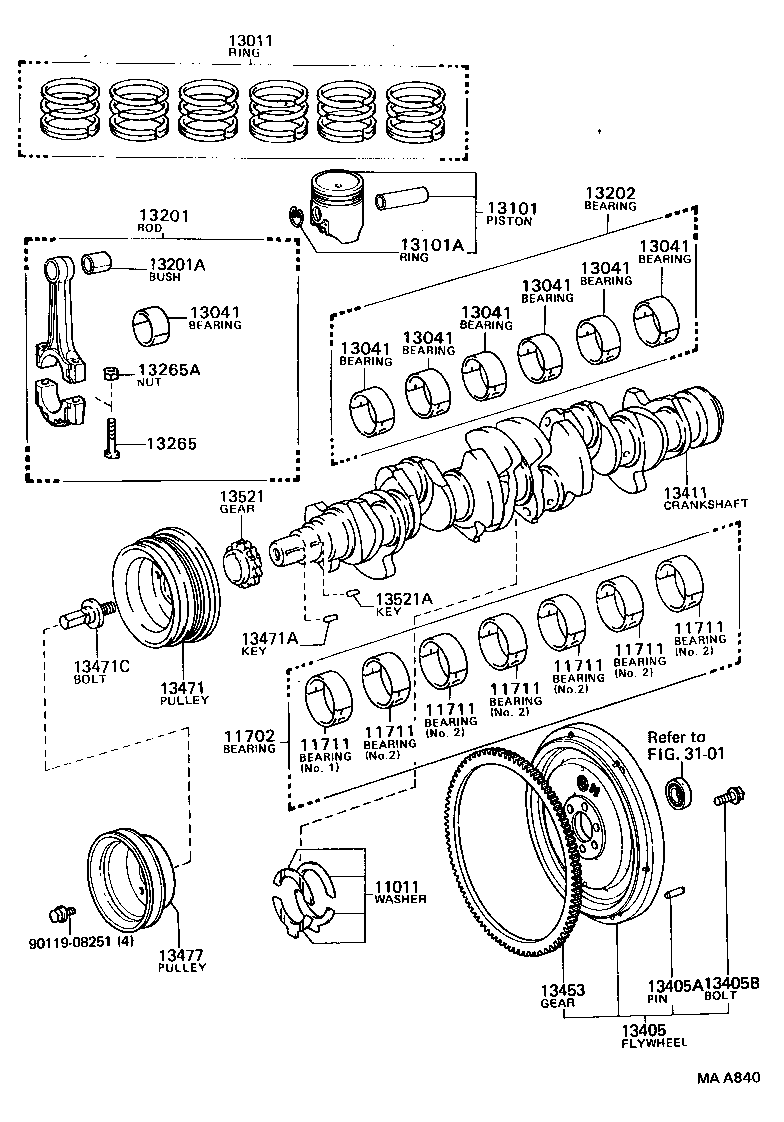

| Linked diagrams | ||||
| 3101 | ||||
