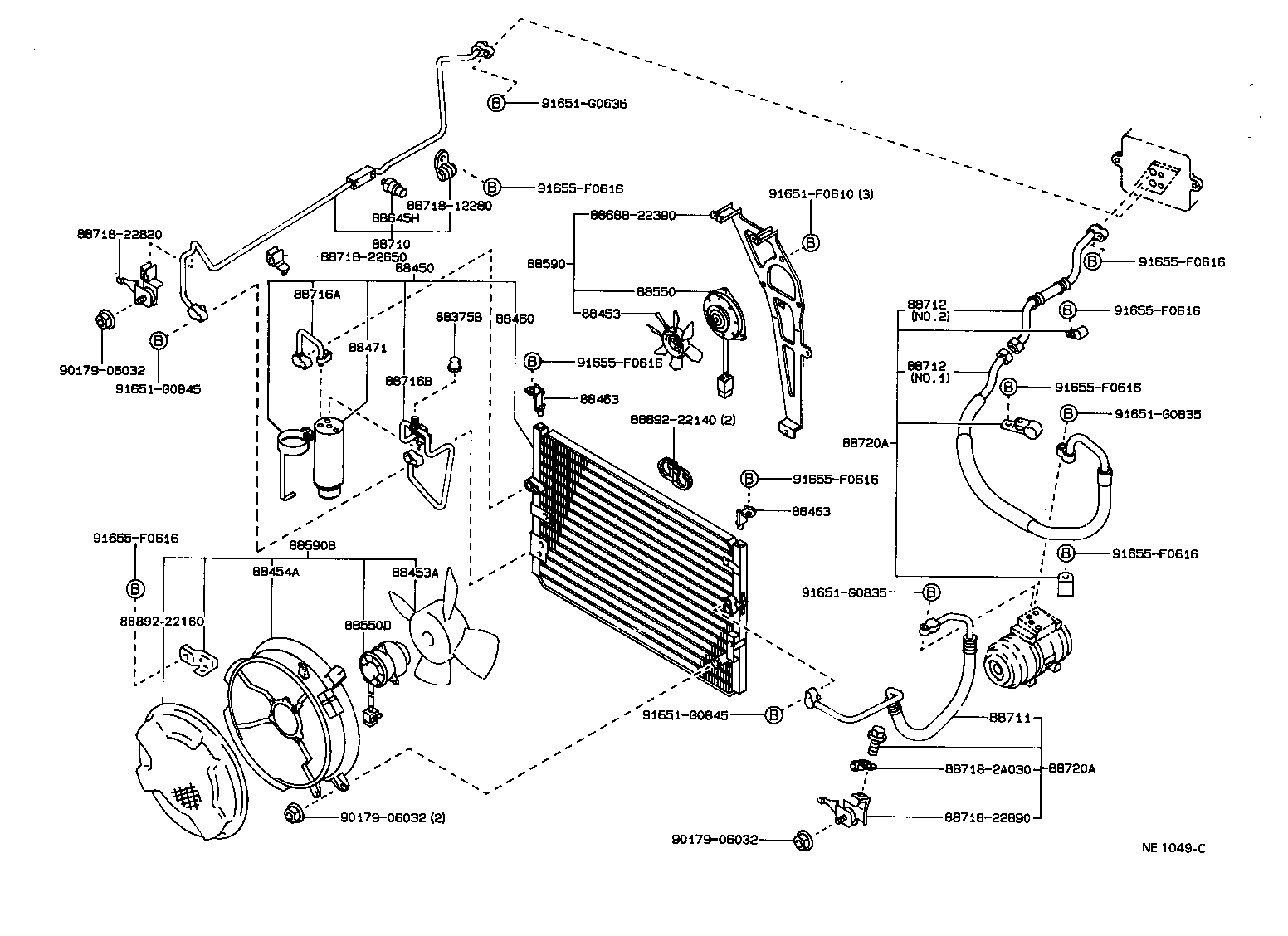

MX81L-AEMEEV (1988)
Toyota Cressida
(8808-9302)MX81..V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-20010 |
GX81,MX81,RX8# |
1 | ||
| 88375-20010 |
MX83..GLX;GX81,MX81,RX8# |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88460-22370 |
GX81,MX81..LHD |
1 | ||
| 88460-22450 |
GX81,MX81..LHD |
1 | ||
| 88460-22371 |
GX81,MX81..LHD |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12040 |
GX81,MX81 |
1 | ||
| 88453-12040 |
GX81,MX81;MX83..GLX |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-20020 |
MX8# |
1 | ||
| 88453-20020 |
LX80,MX8# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-22070 |
LX80,MX8# |
1 | ||
| 88454-22070 |
MX8# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22390 |
GX81,MX8#,RX8# |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-22010 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-22010 |
GX81,LX80,MX8#,RX8# |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-12020 |
RX80;GX81,LX80,MX81,RX81..LHD |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-22040 |
GX81,MX81;MX83..GLX |
1 | ||
| 88550-22040 |
GX81,MX81 |
1 | ||
| 88550D - MOTOR ASSY, BLOWER | ||||
| 88550-20030 |
MX81;MX83..GLX |
1 | ||
| 88550-20030 |
MX81 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-22070 |
GX81,MX81 |
1 | ||
| 88590B - BLOWER ASSY, W/SHROUD | ||||
| 88590-22040 |
MX8# |
1 | ||
| 88590-22040 |
LX80,MX8# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30281 |
GX81,MX81,RX8# NO.2 |
1 | ||
| 88645-30281 |
MX83..GLX;GX81,MX81,RX8# NO.2 |
1 | ||
| 88645-22050 |
GX81,LX80,MX8# NO.1 |
1 | ||
| 88645-22050 |
GX81,LX80,MX81 NO.1 |
1 | ||
| 88645-22050 |
MX83..GLX;GX81,LX80,MX81 NO.1 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-22270 |
GX81,MX81..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22490 |
MX81..V |
1 | ||
| 88711-22491 |
MX81 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22660 |
MX81..V COMPRESSOR SIDE |
1 | ||
| 88712-22670 |
MX81..V UNIT SIDE |
1 | ||
| 88712-22661 |
MX81 COMPRESSOR SIDE |
1 | ||
| 88712-22671 |
MX81 UNIT SIDE |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22660 |
MX81..V COMPRESSOR SIDE |
1 | ||
| 88712-22670 |
MX81..V UNIT SIDE |
1 | ||
| 88712-22661 |
MX81 COMPRESSOR SIDE |
1 | ||
| 88712-22671 |
MX81 UNIT SIDE |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22840 |
GX81,MX8# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22890 |
GX81,MX81..LHD |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-22060 |
MX81..V SUCTION |
1 | ||
| 88720-22110 |
MX81..V DISCHARGE |
1 | ||
| 88720-22061 |
MX81 SUCTION |
1 | ||
| 88720-22111 |
MX81 DISCHARGE |
1 | ||
| 88720A - HOSE & ACCESSORY, AIR CONDITIONER | ||||
| 88720-22060 |
MX81..V SUCTION |
1 | ||
| 88720-22110 |
MX81..V DISCHARGE |
1 | ||
| 88720-22061 |
MX81 SUCTION |
1 | ||
| 88720-22111 |
MX81 DISCHARGE |
1 | ||
| Common parts | ||||
| 88688-22390 | ||||
| 88718-12280 | ||||
| 88718-22650 | ||||
| 88718-22820 | ||||
| 88718-22890 | ||||
| 88718-2A030 | ||||
| 88892-22140 | ||||
| 88892-22160 | ||||
| 90179-06032 | ||||
| 91651-F0610 | ||||
| 91651-G0635 | ||||
| 91651-G0835 | ||||
| 91651-G0845 | ||||
| 91655-F0616 | ||||
