MX73R-XEPEE (1987)

Toyota Cressida

Production Jan 1987 - Aug 1988
Engine 5ME
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8701- )5ME..GEN

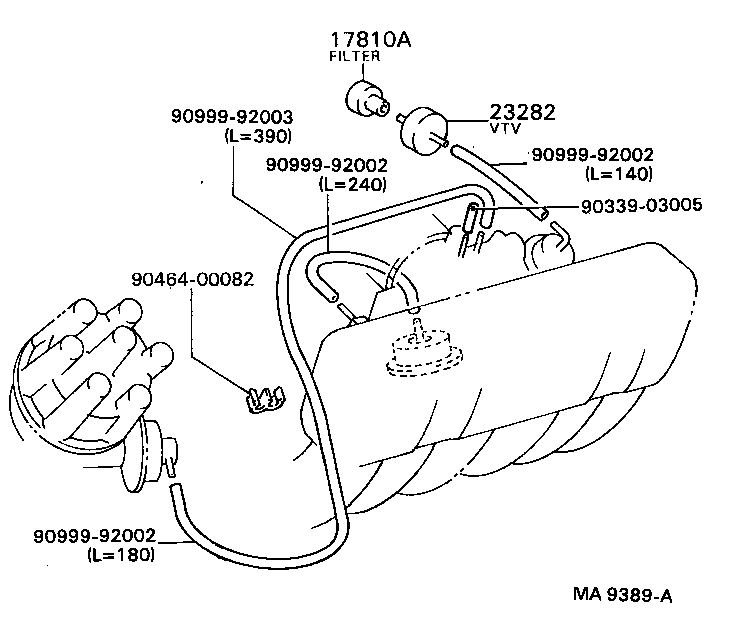

Click highlighted areas on diagram

diagram 17810A 23282 9033903005 9046400082 9099992002 9099992002 9099992002 9099992003
Part # Description Qty Price
17810A - FILTER ASSY, AIR
90925-06006

5M#..MX7#

 1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01021

5ME..MX7#

 1
Common parts
90339-03005
90464-00082
90999-92002
90999-92003
